PFS1500 Series Industrial Applications: Where 1500W AC/DC Power Supplies Fit and What to Include in Your RFQ

Why PFS1500 matters at the supplier-selection stage

The PFS1500 Series is not a general traffic keyword topic; it is a practical engineering and procurement decision. The series covers 1500W AC/DC conversion with a single-phase 90-264VAC input range, 47-63Hz input frequency range, and output models from 12V to 100V. For BoFu buyers, the more important question is whether the supply gives the project team enough integration hooks to reduce rework. PFS1500 provides DC_OK analog indication, remote voltage sensing, remote on/off control, PMBus, active current sharing support, smart fan speed control, and a 5V/2A auxiliary output. Those features help engineers build a monitored power architecture instead of treating the AC/DC module as a black box.

For panel builders and system integrators, the compact 5 x 8 x 1.58 inch footprint, also specified as 127 x 203 x 40mm, can simplify dense cabinet or rack layouts where multiple loads, filters, terminals, cable ducts, and service clearances compete for space. For procurement, the wide model range makes it easier to standardize around one platform across different voltage rails instead of qualifying unrelated products for every subassembly. For electrical engineers, the stated ripple target of 1% peak-to-peak, total regulation below 3%, dynamic response below 5%, and efficiency up to 93.5% for 12-24V models or 94% for 48-100V models provide starting points for system-level validation.

TPS should also be considered when the power supply decision is tied to surrounding work: cabinet integration, EMC pre-checks, wiring rules, documentation, and project consultation. If your team is still building the compliance plan, the TPS guide to industrial automation power EMC and safety testing is a useful companion to this product selection discussion. If the PFS1500 will be integrated into an OEM subsystem, the article on custom power supply modules for OEM systems explains how module selection, integration, and EMC support can be aligned before volume production.

Best-fit industrial applications for the PFS1500 Series

Automation, collaborative robots, and industrial equipment

In automation equipment, a 1500W AC/DC power module is often used to feed a high-current DC bus, a motion subsystem, or an intermediate rail that is later distributed to drives, controllers, I/O, sensors, and auxiliary converters. PFS1500 models such as PFS1500T48 and PFS1500T60 are relevant when the system needs a higher-voltage DC rail to reduce current and cable losses compared with lower-voltage architectures. The 48V model provides 31.3A rated current with an adjustable 42-53.5V range, while the 60V model provides 25A with a 54-66V range. Both are suitable starting points for machine builders who need power density, monitoring, and controlled distribution.

Collaborative robots and industrial equipment also benefit from remote sense and DC_OK. Remote sense can help compensate voltage drop in high-current cabling so the load sees a tighter voltage at the point of use. DC_OK can be wired to a PLC, machine controller, or service indicator to support diagnostics. When power is part of a larger automation rack, TPS can support product selection together with integration review, wiring layout, and EMC pre-compliance planning. Teams designing mixed power racks may also want to review TPS resources on test rack enclosure layout, wiring, documentation, and service access.

Medical, laboratory, and rack-based equipment

PFS1500 is also relevant for medical and laboratory equipment because the series is specified with IEC/UL 60601-1 and CAN/CSA 60601-1 safety approvals, 2 x MOPP medical isolation, touch leakage current below 100uA, earth leakage current below 300uA, and EMC emissions readiness that includes Class B conducted and radiated emissions with IEC 60601-1-2 fourth edition alignment. This does not remove the need for final equipment-level verification, but it gives medical-device engineers and procurement teams a better starting point than a generic industrial supply with no medical isolation path.

For medical carts, diagnostic racks, laboratory instruments, and imaging-related subsystems, selection should consider leakage budget, protective earth strategy, cable routing, enclosure materials, airflow, cleaning access, and the role of the AC/DC supply in essential performance. TPS provides related knowledge on powering medical racks and carts under IEC 60601-1 and IEC 60601-1-2, and can support customers that need a product, an equivalent solution, or a custom integrated power assembly rather than a standalone catalog item.

Cooling systems, stage lighting, and linear motion

Cooling systems, stage lighting, and linear motion applications place different stresses on the same power platform. Cooling cabinets may need steady DC output under elevated ambient temperatures and airflow constraints. Stage lighting may need repeatable behavior under pulsed or changing load conditions. Linear motor or actuator systems may require attention to cabling, inrush, load transients, and grounding. The PFS1500 Series supports these applications when the continuous power, voltage range, and control needs are within the model limits.

When the application is battery charging, AGV charging, or a multi-channel test system, the power architecture may require a different TPS product family or a higher-power platform. The point is not to force PFS1500 into every use case; it is to identify where a 1500W isolated AC/DC module is the right block, then ask TPS for equivalent product options, customization, or a system-level power solution. For projects with charging racks or battery validation infrastructure, TPS resources on battery test system power and safety architecture and EMC and safety testing for DC battery charger systems can help define the larger scope.

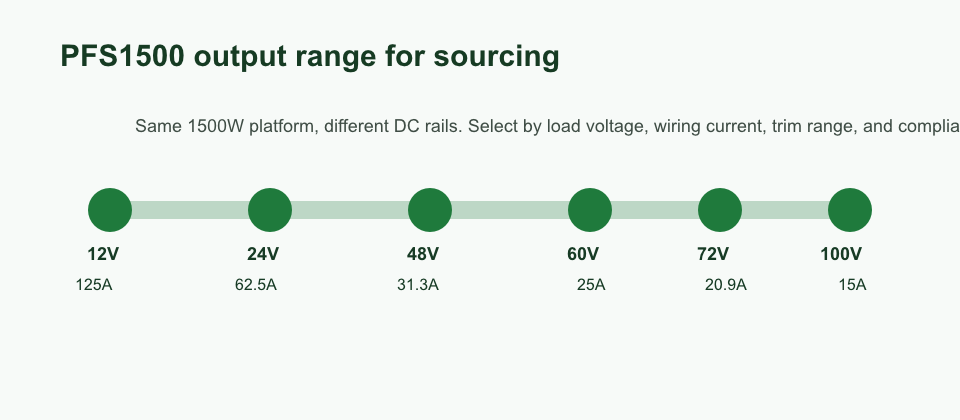

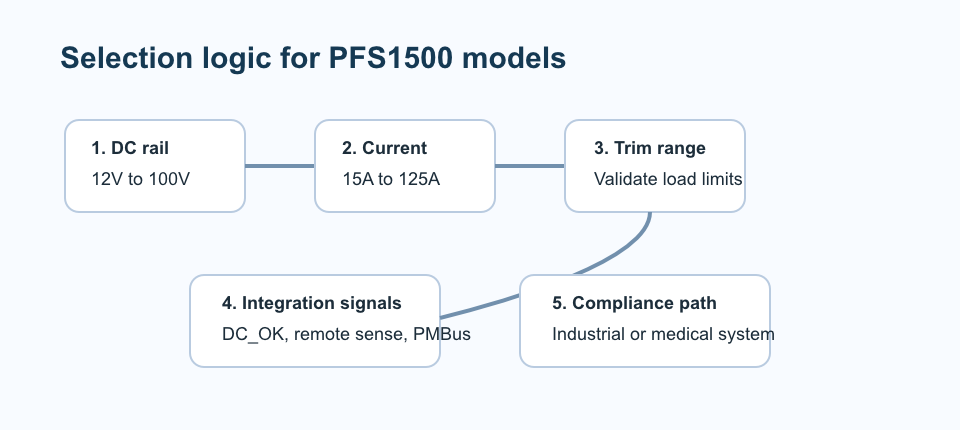

Model selection logic: voltage, current, and trim range

For most RFQs, the first filter is the DC rail. The second is continuous current at the expected ambient conditions. The third is whether the adjustable voltage range can cover load tolerance, cable drop, and field commissioning needs. The PFS1500 Series includes the following model options:

A lower-voltage model gives high current and may match 12V or 24V equipment directly, but it increases conductor size, terminal heating, and voltage-drop sensitivity. A higher-voltage model reduces current for the same power level, but the downstream loads, insulation coordination, service procedures, and safety labeling must be planned carefully. For this reason, a strong RFQ should not only ask for a price. It should define the rail voltage, continuous load, peak load, duty cycle, acceptable ripple, control interface, installation altitude, cabinet temperature, airflow path, cable length, and target standards.

Integration and installation considerations

Electrical architecture and wiring

PFS1500 should be evaluated as part of a complete power path: AC entry, branch protection, EMC filtering if required, protective earth, input wiring, module mounting, output conductors, terminal blocks, fusing, load distribution, service disconnects, and monitoring. The 12V and 24V models are high-current devices, so output wiring should be sized for temperature rise and voltage drop rather than nameplate current alone. The 48V to 100V models can reduce current, but they require disciplined labeling, clearances, and downstream load compatibility.

For panel builders working with mixed DIN-rail and module-based architectures, TPS content on 24V DC power distribution, branch protection, isolation, and labeling can support wiring decisions. If the supply is going into an enclosure exposed to industrial environments, review enclosure strategy early using resources such as NEMA, IP, and UL 50E enclosure rating guidance. Good power supply selection can still fail if the mechanical and wiring environment is not designed around the electrical reality.

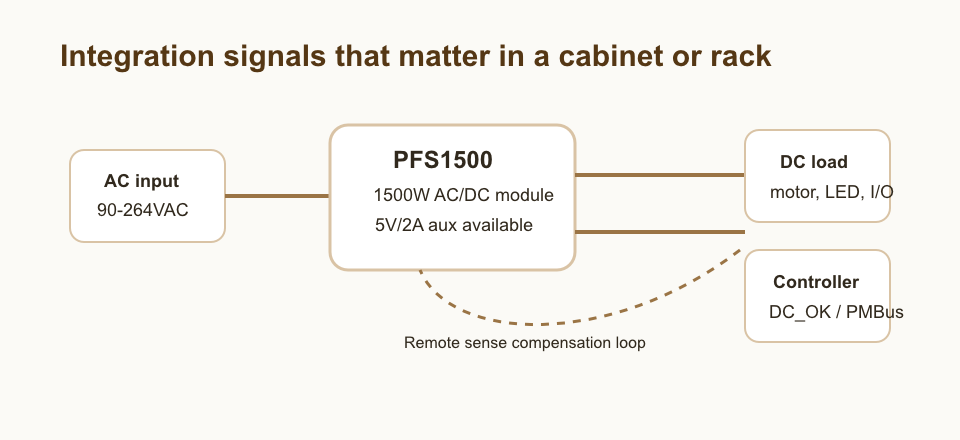

Monitoring, remote sense, and PMBus

One reason to choose the PFS1500 Series over a basic AC/DC supply is the availability of integration signals. DC_OK can become a simple health input. Remote on/off can be used for machine sequencing, safety-related shutdown logic where appropriate, or service modes. Remote sense can compensate voltage drop between the module and the load, but it must be wired correctly and validated under open-sense or fault scenarios according to the end system design. PMBus can support digital visibility where the controller architecture and service model justify it.

In an RFQ, specify whether PMBus is required, optional, or not used. Also define whether DC_OK will drive a PLC input, alarm relay, local LED, data logger, or service procedure. These details help TPS recommend the correct product configuration or an equivalent solution and reduce back-and-forth after procurement has already opened the supplier file.

Thermal, mechanical, and service access

The PFS1500 Series uses smart fan speed control, so buyers should not assume fanless operation. Cabinet airflow, inlet temperature, dust strategy, acoustic expectations, and maintenance access should be confirmed during design review. The compact 127 x 203 x 40mm outline is useful in dense builds, but enough clearance must remain for wiring bend radius, airflow, connectors, service tools, and inspection. Where the power supply is installed in a medical cart or cleanable enclosure, material choices and seals around the larger system also matter; TPS offers additional guidance on medical enclosure materials and cleaning-cycle durability.

Compliance, reliability, and testing path

The PFS1500 Series is specified with IEC/UL 62368-1 and CAN/CSA 62368-1, IEC/UL 60601-1 and CAN/CSA 60601-1, 2 x MOPP isolation, Class B conducted and radiated emissions, and IEC 60601-1-2 fourth edition alignment. The official IEC 62368-1 standard covers safety requirements for audio/video, information, and communication technology equipment, while IEC 60601-1-2 addresses EMC requirements and tests for medical electrical equipment and systems. These references are relevant because many industrial and medical products ultimately need system-level evidence, not only component-level claims.

Reliability data also matters in supplier screening. PFS1500 lists MTBF above 500k hours and 5000m operating altitude. These figures should be used as selection inputs, not as a substitute for application validation. A high-altitude, high-temperature, high-load cabinet with long output cables will still need thermal testing, voltage-drop measurements, fault review, and EMC assessment. TPS can support that broader process through product selection, integration consultation, and EMC/safety testing pathways. The TPS article on EMC and safety testing for EMS and system integration is particularly useful when the power module is one part of a larger rack, cabinet, or equipment assembly.

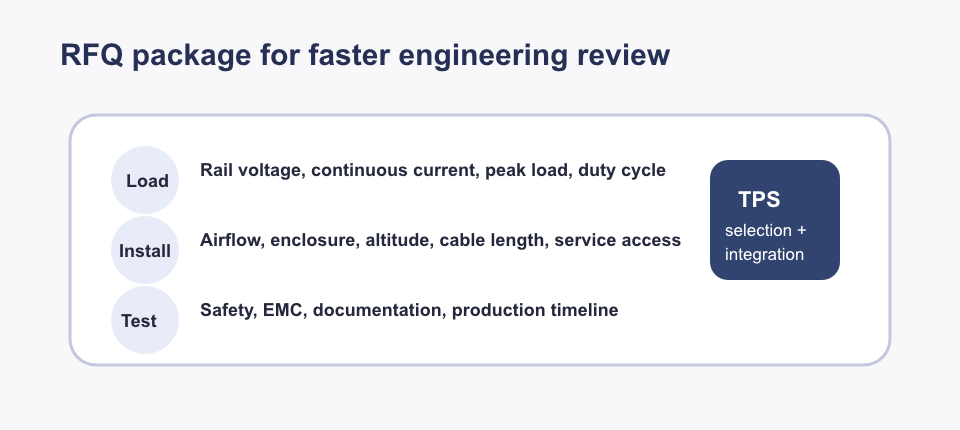

RFQ checklist for PFS1500 projects

To get a faster and more actionable response, include the following information when contacting TPS:

Why source this class of solution through TPS

Many suppliers can quote a power supply. TPS is more useful when the power supply is part of a real system: a control cabinet, medical rack, lighting assembly, power test bench, charging subsystem, or OEM equipment platform. TPS can provide related products, equivalent alternatives, integration consultation, custom support, EMC and safety testing knowledge, and global B2B project coordination. That combination is especially valuable for system integrators and panel builders who are responsible for the final build, not just component purchase.

If your application needs additional engineering beyond a standard unit, TPS can help define the power architecture, review the compliance path, and support custom or semi-custom power supply modules. If you are building a lab system or power electronics validation bench, the guide to designing an EMC test bench for power electronics R&D labs can help frame the next discussion. If your project is closer to energy storage, review TPS guidance on BESS components, design checklists, safety standards, and integration before locking the BOM.

The most practical next step is to send TPS the RFQ package described above. Include the target model, such as PFS1500T36, PFS1500T72, or PFS1500T100, plus the electrical, mechanical, compliance, and delivery constraints. TPS can then respond with a product recommendation, an equivalent product path, or a project consultation for a more complete solution.

FAQ
