Industrial Applications for TPS010-100W GP Series: DIN-Rail Power for Building Automation, Alarm, LED, Medical, and Industrial Control

Why the TPS010-100W GP Series fits industrial cabinets

For US panel builders, the first question is rarely, “What is the maximum headline wattage?” The real question is whether the power supply behaves well in a crowded cabinet, stays easy to mount and wire, and covers the control voltage you need without adding thermal or maintenance problems. That is why the TPS010-100W GP Series is more useful than its compact size initially suggests.

The series is designed as a convection-cooled DIN-rail AC/DC platform with wide AC or DC input, vertical TS35 mounting, overload/over-voltage/over-temperature protection with auto-recovery, and low no-load consumption. In practice, those are the details that matter when the supply sits inside a controls enclosure all day, not on a benchtop. The series also stays easy to place mechanically: the 10W model starts at 91 x 23 x 60 mm, while the 100W frame remains a modest 91 x 90 x 60 mm. For cabinets that already carry PLCs, relays, breakers, terminal blocks, and network hardware, that footprint matters.

Another reason the platform works well in real cabinets is that the family is not locked to one output class. You can choose 12V adjustable models for lighter legacy or security loads, or 24V adjustable models for the control voltage that dominates industrial automation, BMS, and utility cabinets. At the higher end, the 24V platform gives the cleanest path for heavier cabinet branches, while the 12V side works well when you need lower-voltage electronics without a separate DC/DC stage.

If your project also includes enclosure design, EMC risk reduction, or branch distribution planning, pair this article with TPS guidance on 24V DC DIN-rail distribution, their enclosure-rating guide, and their EMC and safety testing overview for automation projects.

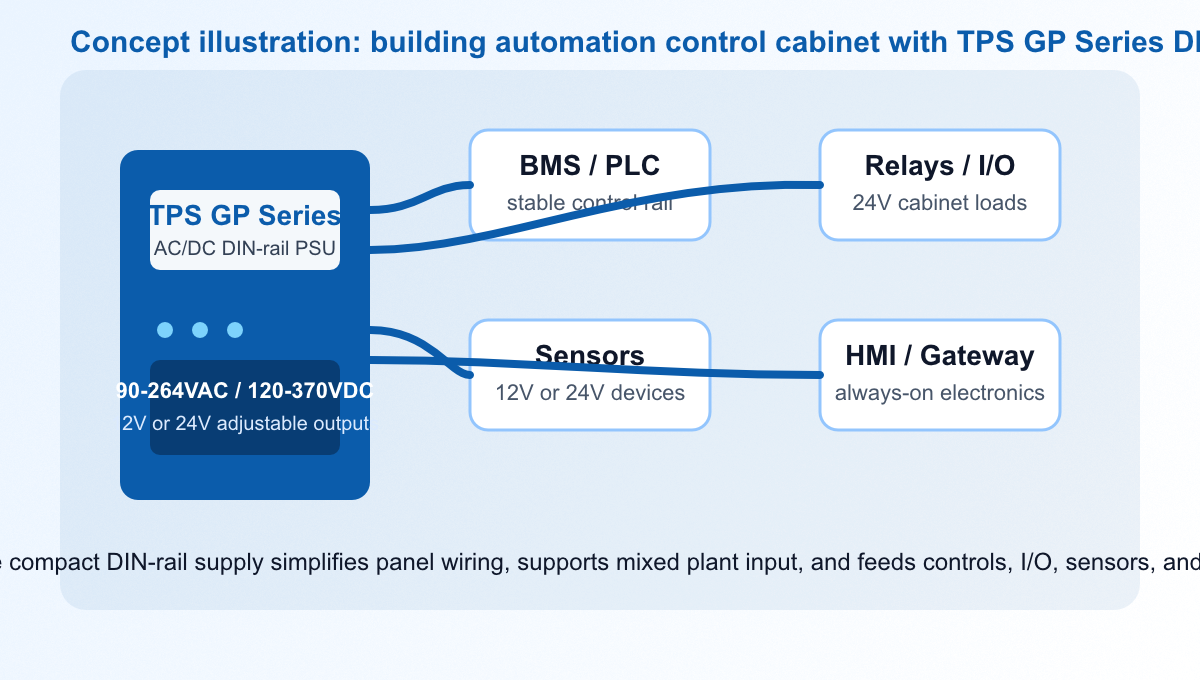

Building automation and BMS control panels

Building automation panels are an ideal use case because they usually mix modest steady-state loads with tight wiring space and long operating hours. Think BMS controllers, relay modules, I/O expansion, valve and damper control logic, small gateways, and room or plant sensors. In these cabinets, the main requirement is rarely a huge power block. It is a reliable, quiet, low-maintenance control rail that is easy to integrate on standard DIN rail.

Typical loads and model choices

For small BMS nodes or gateway-only panels, the 10W class can be enough when the cabinet mainly powers a compact controller and a few low-draw field devices. For broader controller-and-I/O combinations, the 30W or 60W models are the normal landing zone. When the cabinet also feeds multiple relays, communication gear, and distributed low-power peripherals, moving to the 24V 60W or 100W frame usually creates healthier margin and lowers the risk of future add-on loads pushing you into redesign.

Actionable outcome for integrators

The practical outcome is simple: use the smallest model that still leaves real expansion headroom. In BMS work, spare capacity matters because the panel often evolves after the first install. A cabinet that starts with one gateway and a few relays may later add remote I/O, another sensor string, or an edge communications device. Choosing only for day-one current can turn a clean cabinet into a rework job. If your panel is primarily 24V controls, start your fit-check with the TPS060-GP24V or TPS100-GP24V. If the cabinet is smaller and the load is light, the TPS010-GP24V keeps the footprint minimal.

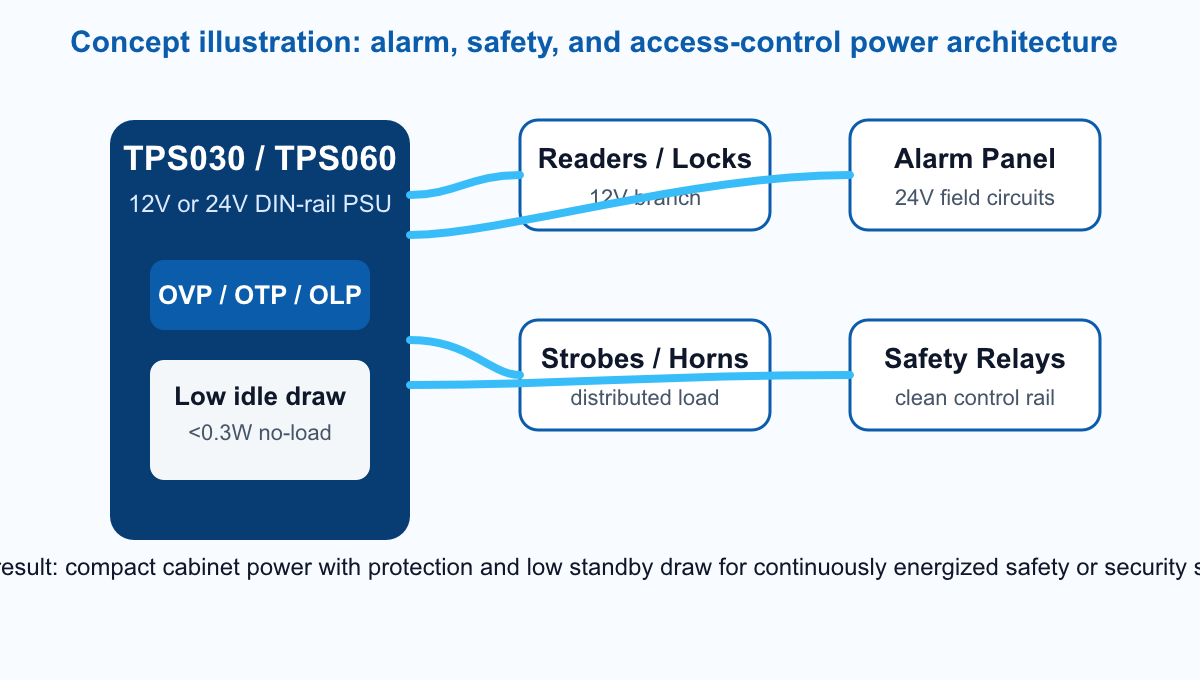

Alarm, safety, and access-control cabinets

Alarm and safety cabinets benefit from two characteristics in this series: compact DIN-rail packaging and low no-load consumption. Many of these systems remain energized continuously, even when the active load is light. That makes low idle draw relevant, especially when many small cabinets are deployed across a site. It also makes protection behavior important, because field wiring and branch devices are where surprises usually happen.

In access-control or mixed alarm interfaces, 12V models are often the easier fit for readers, locks, door hardware interfaces, or low-voltage electronics. In broader life-safety or industrial safety logic cabinets, 24V control rails are more common. Here, the 30W and 60W classes usually hit the sweet spot: enough margin for practical field-device combinations, but still compact enough for slim door-mounted or wall-mounted cabinets.

What matters for the buyer is not just “12V or 24V.” It is whether the selected model will carry simultaneous device activation without forcing you into a second supply or a redesign of branch grouping. That is why system integrators should map real concurrent loads rather than add nameplate currents casually. A horn/strobe branch, mag-lock release event, or relay bank transition can change the selection very quickly.

For projects where EMC or finished-system verification matters, it is worth reviewing TPS guidance on EMC and safety testing for integrated systems and their EMC test-bench article early, before the cabinet wiring is frozen.

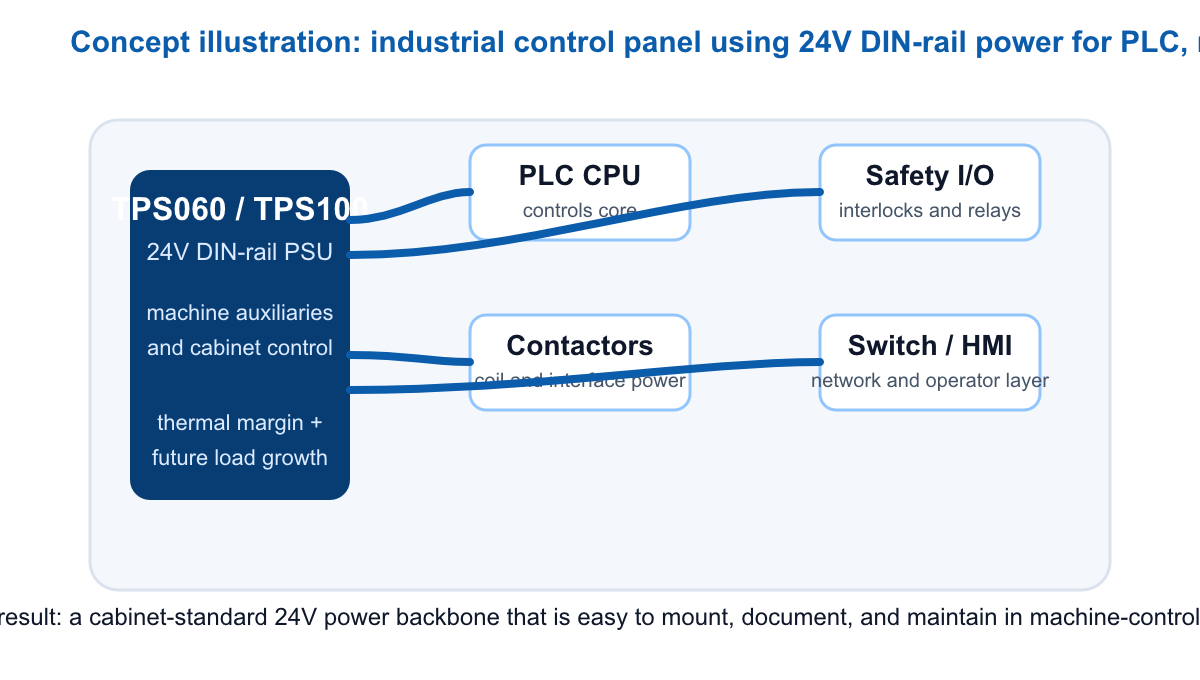

Industrial automation and machine-control panels

Industrial automation is where the GP Series becomes especially practical. Most machine and skid-control panels want a familiar 24V control rail, standard DIN-rail mechanics, stable output for PLCs and relays, and a supply that does not complicate cabinet airflow. The TPS060-GP24V and TPS100-GP24V fit this profile well for machine auxiliaries, local control panels, packaging machines, process skids, utility equipment, and smaller automation stations.

Why 24V models usually win here

For modern automation, 24V is still the default control voltage. It works cleanly with PLC I/O, interposing relays, contactors, signal conditioners, and many field sensors. That means the 24V versions reduce conversion steps and simplify documentation. The 60W and 100W 24V models are usually the first SKUs to shortlist when the cabinet supports multiple control branches or future expansion.

Thermal and installation implications

The uploaded datasheet shows operation from 0 C to 50 C ambient with derating from 50 C to 70 C, humidity up to 95 percent non-condensing, and altitude to 3000 m. For real projects, that means you should not treat the wattage label as a free pass in a hot sealed enclosure. If the cabinet will sit near drives, heaters, compressors, or a poorly ventilated roofline, size the supply with thermal margin, not arithmetic minimums. That is a small design step that prevents a big commissioning problem later.

TPS also publishes useful adjacent resources for this kind of project, including custom power-support options for OEM systems and practical enclosure layout and service-access guidance.

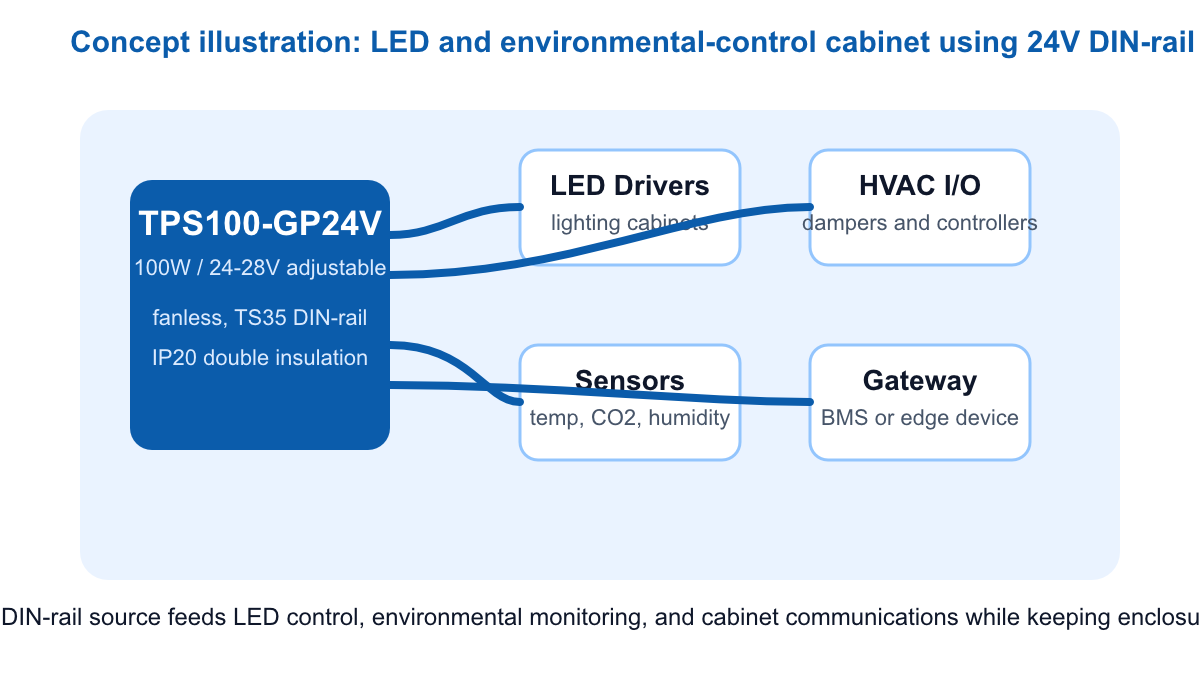

LED lighting and signage control cabinets

The datasheet explicitly identifies LED lighting as a target application, and that makes sense when you think about how many lighting or signage cabinets are really small control systems rather than just “power boxes.” A lighting cabinet may need a stable DC rail for control boards, communications, sensors, dimming or switching logic, and related low-voltage electronics. In those situations, a compact DIN-rail power stage is easier to document, service, and replace than a less structured loose-mount arrangement.

The 24V models are especially practical when the cabinet architecture already standardizes around 24V controls. The 12V models remain useful for lower-voltage electronics or specialized sub-circuits. Another advantage is the low no-load consumption. Signage or lighting cabinets can spend long periods in standby, and low idle draw becomes more relevant across a distributed installation.

For teams building the compliance file, it is also helpful that the uploaded datasheet references LED safety certification to EN 61347-2-13. That does not remove the need to validate the finished assembly, but it does make the product family relevant for lighting-adjacent cabinet design. If your project crosses into complete cabinet validation, TPS automation EMC guidance and their enclosure-rating article are the right next reads.

Environmental-control and utility cabinets

Environmental-control systems often look simple on paper but become messy in the cabinet: sensors, small controllers, valve or damper interfaces, communications, displays, and supervisory links all compete for space. The GP Series works well in these cabinets because it is compact, DIN-rail-native, and available in the voltages that dominate field instrumentation and control. The 30W and 60W classes are often enough for compact utility control cabinets, while the 100W 24V option is attractive when you want more headroom for distributed panel devices.

For utility and environmental panels, the main design win is cabinet simplification. One compact supply, one familiar wiring practice, and one maintenance-friendly format is often better than mixing power adapters, panel-mount bricks, or odd mechanical formats. That is especially true when the cabinet may be serviced in the field by technicians who expect standard rail-mounted components.

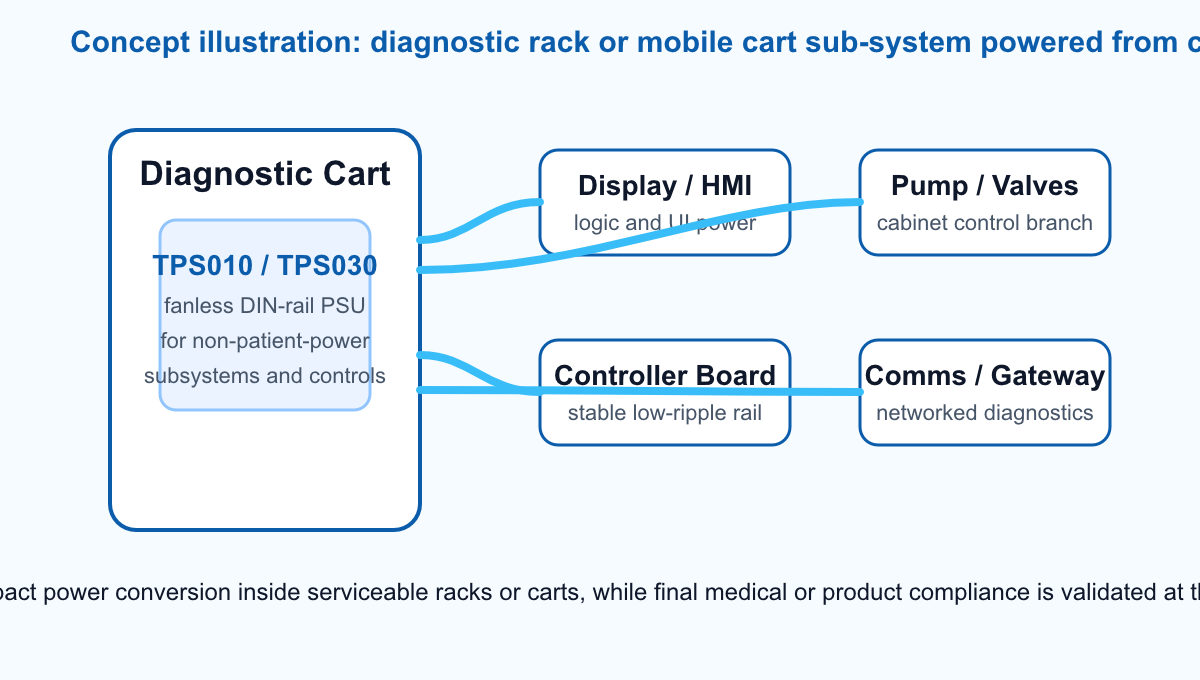

Medical racks, carts, and controlled sub-systems

The datasheet lists medical equipment among the series’ key applications, but this is the place to stay precise. For medical or adjacent healthcare projects, the most responsible positioning is inside system-level racks, carts, analyzers, service compartments, and controlled sub-systems where the full end-product safety and EMC path is still evaluated at the system level. In other words, treat the GP Series as a compact DIN-rail AC/DC building block inside the finished equipment architecture, not as a shortcut around final medical validation.

That still leaves many valid use cases: power for cart electronics, cabinet logic, communications, local controllers, internal displays, valves, pumps, and auxiliary functions where the product architecture benefits from DIN-rail organization. The 10W and 30W models are a natural fit for smaller electronic sub-systems; the 60W and 100W options work better when the cart or rack includes more distributed electronics or several controlled branches.

If your project is in this zone, the most useful TPS resources are their guide to powering medical racks and carts and their medical enclosure article. These help frame the cabinet and compliance context around the PSU selection.

Model selection guide and recommended outcomes

The fastest way to reduce RFQ back-and-forth is to align the model with the real cabinet role, not just the nominal output voltage. Use the table below as a starting point, then confirm concurrent load, ambient temperature, and any growth margin you need.

Note: in the uploaded datasheet, the 12V top-end model is listed at 72W while the 24V top-end reaches 100W. That is why “100W series” should be read as family naming, not as every SKU delivering 100W.

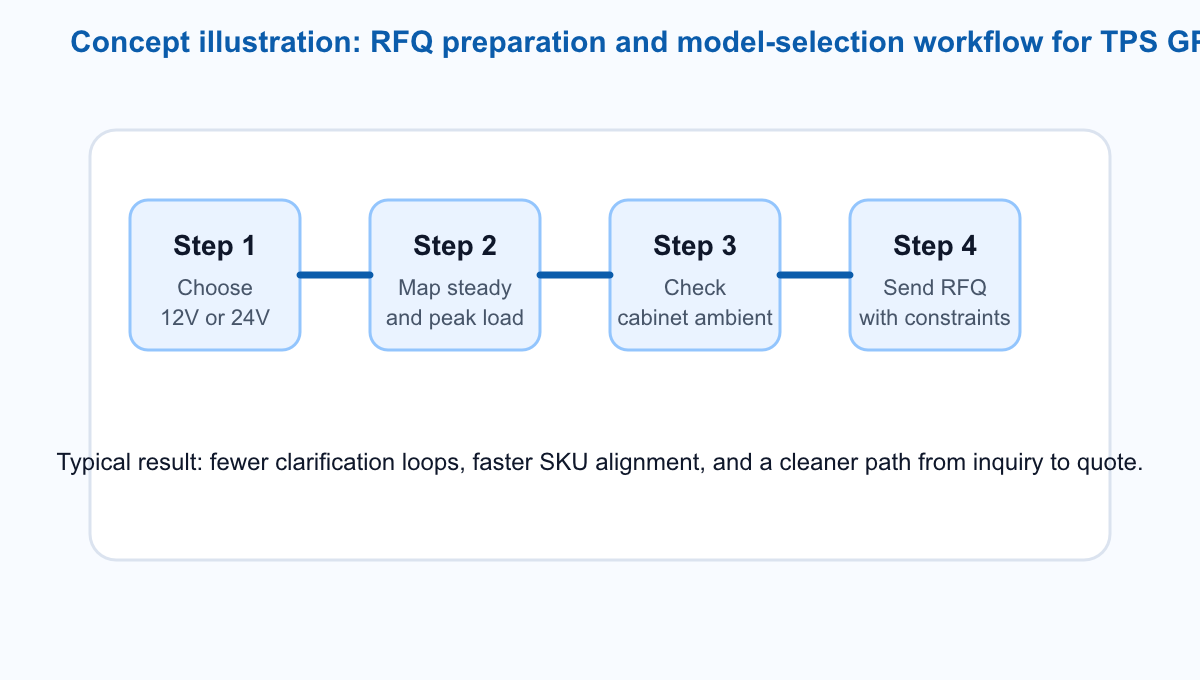

What to confirm before you send the RFQ

If your goal is RFQ conversion rather than just reading another product blog, send TPS ELECTRIC LLC the details that actually shorten selection time:

• Required output voltage and whether you want the 12V adjustable or 24V adjustable model class.
• Steady-state current, startup or simultaneous load behavior, and how much future expansion margin you want.
• Ambient temperature inside the enclosure, not only room temperature outside the panel.
• DIN-rail type, mounting orientation, and whether the cabinet has spacing or airflow constraints.
• Whether the input will be AC mains, DC bus, or a site where both possibilities matter.
• Any documentation needs tied to CE, EMC, LED-control applications, or US acceptance paths such as exact listing scope.

That same discipline helps on the enclosure side too. If your cabinet is heading toward lab work or formal verification, these TPS resources are useful next steps: EMC and safety testing workflows, rack and enclosure design practices, and custom integration support for OEM systems.

Official references for documentation teams

When you build the compliance pack, keep the product evidence alongside official documents such as EU Low Voltage Directive 2014/35/EU, EU EMC Directive 2014/30/EU, IEC 61347-2-13, and the OSHA NRTL program overview. These are official reference points, not substitutes for finished-system validation.
