When your team needs a compact source that can safely reach higher test voltages without overbuying a larger platform, the engineering question is rarely “Do we need 100V?” It is usually “How do we get a controllable 100V / 3A / 300W source that fits our bench, supports our workflow, and does not slow down validation?” The eTM1003 Series gives you three ways to answer that question: a practical manual unit, a 4-digit visibility upgrade, and a programmable model for repeatable sequences and ATE-style work.
The engineering problem the eTM1003 Series solves
Many industrial test benches are built around low-voltage rails, then become awkward the moment a DUT, module, or driver needs more than 30V. That is where the eTM1003 Series becomes useful. It gives teams a compact 100V-class adjustable source without forcing a jump to a much larger rack system or a specialized platform that adds cost and bench-space pressure.
The platform is especially practical when the test objective is controlled voltage reach rather than large current demand. Engineers validating high-voltage modules, production teams running functional checks, and service teams troubleshooting assemblies often need a source that can move through setpoints safely, limit current, and show real-time output status. On the TPS product pages, the eTM-1003, eTM-1003F, and eTM-1003P are all positioned around the same 0–100V, 0–3A, 300W envelope, with the difference centered on operator visibility and control depth rather than headline wattage.
That matters in real projects. A bench supply that is electrically “large enough” but operationally mismatched will still cost time: operators misread the display, technicians re-enter the same setup each shift, and procurement compares quotes based only on “100V bench supply.” The right buying decision starts by matching the workflow to the electrical envelope. If you only need quick manual setup, the standard eTM-1003 is often the efficient answer. If your team wants clearer readback at the station, the eTM-1003F becomes the better fit. If repeatable sequences, memory recall, and integration matter, move directly to the eTM-1003P.
Engineering takeaway: start with the test job, not the part number. The eTM1003 Series is most valuable when you need controlled 100V reach in a compact form factor and want to buy only as much interface and workflow depth as the station actually needs.
What stays the same across the platform
Before choosing the model, anchor on what does not change. Across the uploaded product catalog and the official TPS product pages, the 100V versions share the same electrical class: 0–100V output, 0–3A current, 300W max power, and compact dimensions around 280(D) × 130(W) × 165(H) mm. The 100V class also carries ripple figures at or below 18mVrms and 18mArms, which is a solid baseline for validation, troubleshooting, instrumentation, and factory verification.
| Model | Electrical Envelope | Readability / Control Style | Best Fit | When to Skip It |
|---|---|---|---|---|
| eTM-1003 | 0–100V, 0–3A, 300W | 3-digit style manual operation, preset V/I, power display, front ON/OFF | Manual bench validation, troubleshooting, simple factory checks | When the station needs tighter visibility or repeatable programmed steps |
| eTM-1003F | 0–100V, 0–3A, 300W | 4-digit visibility, preset V/I, power display, CV/CC, basic rear comms | Stations where readback confidence and faster operator decisions matter | When you need fully repeatable automated profiles |
| eTM-1003P | 0–100V, 0–3A, 300W | 4-digit programmable platform, list output, 6 memories, remote setup and control | ATE, scripted validation, multi-step bring-up, repeatable production workflows | When the station is purely manual and programming adds no value |

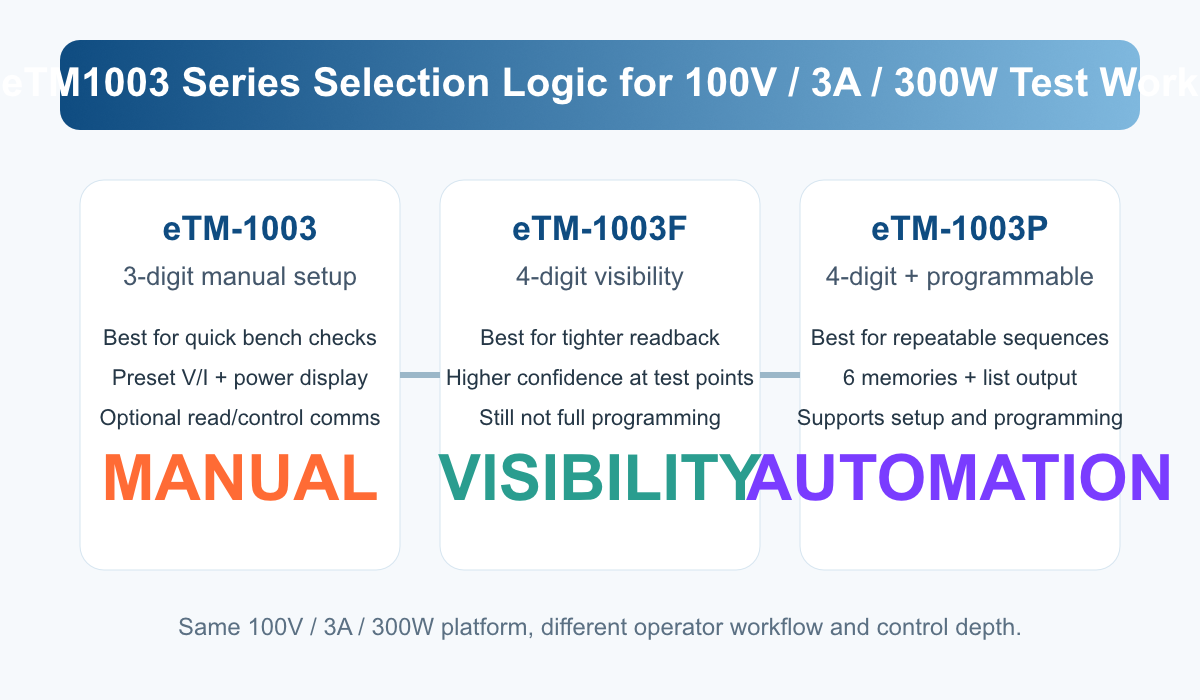

How to choose eTM-1003 vs eTM-1003F vs eTM-1003P
The easiest way to decide is to ask three questions. Will the operator manually dial in a setpoint or benefit from clearer readback? Does the workstation need only read/control capability or actual programming support? Is the job a one-step verification or a repeated sequence that should run the same way every shift?
For manual service benches and low-volume engineering checks, the standard eTM-1003 is usually enough. The uploaded spec shows preset voltage/current, power display, ON/OFF switching, and optional rear communication for read/control, which is often all that is required for practical verification. The F-series keeps that general operating style but improves display visibility and 100V-class resolution behavior, making it a smarter buy when technicians need tighter on-screen confidence. The P-series adds the workflow jump: hardware list output, six quick memories, stronger protection coverage, and rear communication that supports setup and programming. That is the point where the supply stops being only a bench source and starts behaving like a repeatable test asset.
Choose manual eTM-1003 when…
You want the lowest-friction path to 100V-class bench work, the operator is present, and the station does not need scripted changes.
Choose eTM-1003F when…
You want the same envelope with better readability and finer confidence during debug, verification, or inspection.
Choose eTM-1003P when…
You want repeatable steps, stored setups, interface-driven workflows, or fewer operator-dependent variations from unit to unit.

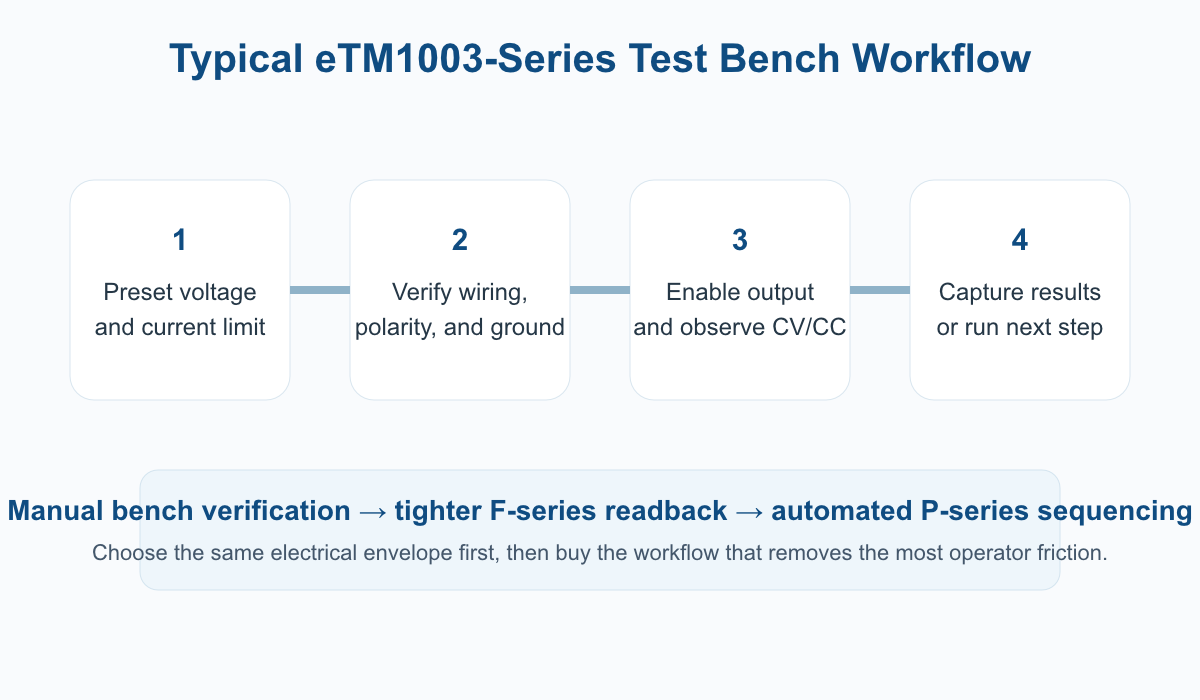

How to build a safer 100V bench bring-up workflow
A common mistake in higher-voltage bench work is treating the power supply as though it were only a dial-and-go box. At 100V, process discipline matters. The safer workflow is simple: define the target voltage window, set the current limit first, verify wiring and polarity, enable output intentionally, and document the expected draw before you scale the station. This is where the eTM1003 Series helps because the models are built around CV/CC operation, front output control, and immediate status cues for controlled bring-up.

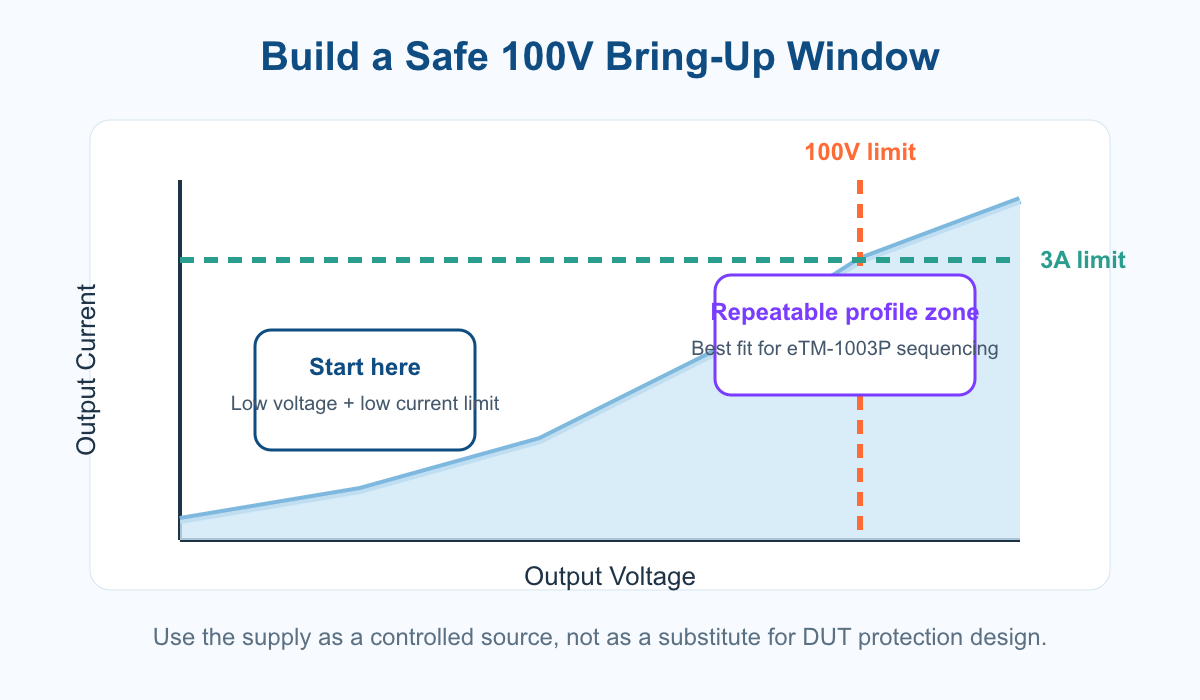

In practice, do not start at the target voltage unless the DUT is already well understood. For early validation, start lower, confirm there is no unexpected current draw, and walk the setpoint upward in planned checkpoints. If the DUT has capacitive input behavior or unknown transients, design the station around the test method rather than assuming the power source alone will solve startup instability. For related panel-level design considerations, it is worth reviewing TPS guidance on planning DC power architecture for industrial control cabinets, control cabinet thermal design, and inrush-related trip causes at power-on.
For teams formalizing test work, the stronger option is to define a standard operating sequence: connection check, preset load condition, current-limit threshold, voltage checkpoint table, pass/fail observation, and controlled shutdown. The eTM-1003P stands out in this part of the workflow because it is designed for list programming and stored parameter recall, which reduces operator interpretation and compresses changeover time between DUT variants. If the job is still manual but you want better visual verification of actual setpoints, the eTM-1003F is a cleaner intermediate step than jumping straight to automation.
When visibility matters more than raw power
In many BoFu buying decisions, engineering and procurement focus too hard on watts and miss the operator issue. But if all three candidate SKUs already meet the same 300W ceiling, the real question becomes: what removes the most wasted time at the station? On boards and subassemblies that need repeated checkpoint confirmation, better display granularity reduces hesitation and misreads. That is why the eTM-1003F can be the best-value choice even though it does not add more power than the standard model.
When to move to programmable sequencing
The eTM-1003P becomes the right answer when the test bench is no longer a person-plus-power-supply problem and starts becoming a process-control problem. The signal is usually one of these: the same output steps are repeated across multiple DUTs, operators manually re-enter settings too often, or engineering wants remote control inside a fixture.
According to the product catalog and the official TPS product page, the programmable 100V model adds hardware list output, six stored parameter memories, and rear communication that supports setup and programming, not only basic read/control. TPS also calls out over-voltage, over-current, over-power, over-temperature, and short-circuit protection on the P-series. For a repeatable bench, that reduces setup drift and shortens operator training time.
That does not mean every 100V station needs programming. If the job is occasional troubleshooting, repair verification, or a one-operator engineering bench, manual setup is often faster. But if the organization is moving toward fixture-based validation, production-side repeatability, or integrated station design, the P-series prevents the false economy of buying a cheaper manual model first and then engineering around its workflow limits later. This is also where broader TPS services can become relevant, including working with a power system integration specialist and DFM-oriented PCB design support for power electronics, especially when the supply is only one subsystem inside a larger validation platform.
What procurement should ask before locking the part number
Procurement should push for workflow detail before comparing quotes. “100V / 3A / 300W” is not enough. The RFQ should clarify whether the station is manual or semi-automated, whether rear communication is required, what mains configuration applies to the site, and how the bench will be validated. That prevents underbuying on usability and overbuying on features no one will use.

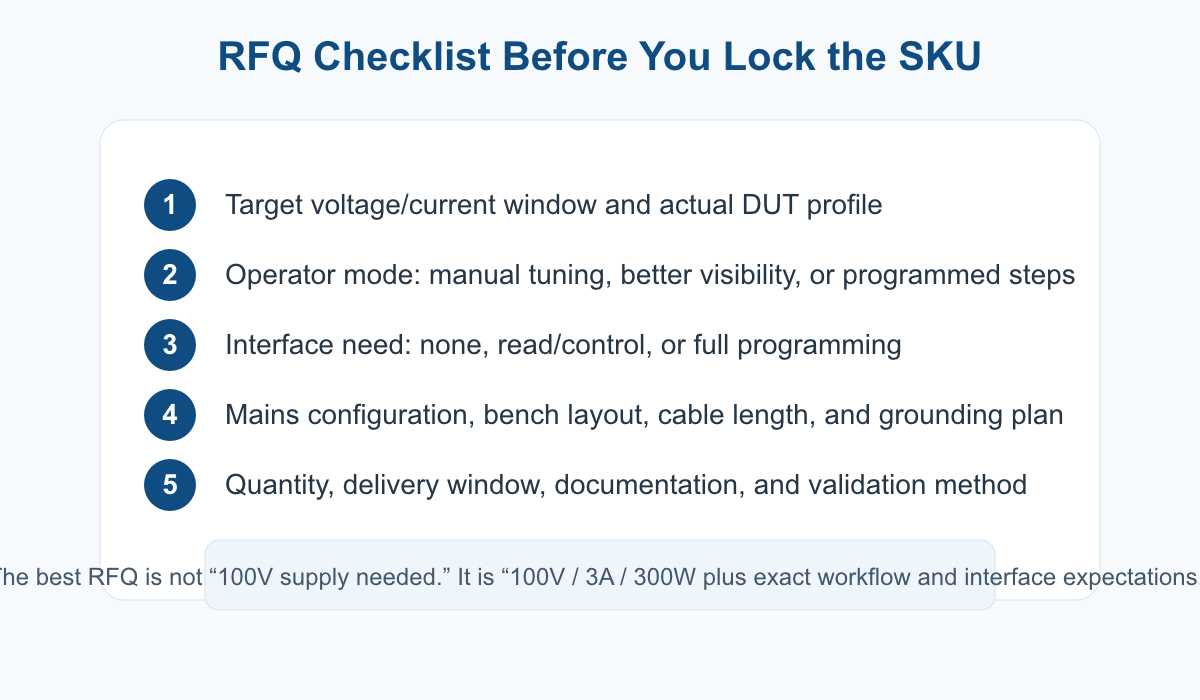

RFQ-ready checklist for engineering and procurement
A good RFQ shortens the buying cycle because it connects the electrical requirement to the operator task. For the eTM1003 Series, start with the DUT’s real operating window, then confirm whether the team needs manual adjustments, clearer 4-digit visibility, or repeatable programmed sequences. After that, define interface expectations, bench constraints, and the validation method that will prove the station works as intended.
- Define the actual voltage range, current ceiling, and whether the DUT ever approaches the 300W boundary.
- Specify operator mode: manual tuning, improved 4-digit readback, or programmed list / memory-driven work.
- Call out whether you need no interface, basic read/control, or full programming support.
- Confirm mains input expectations and bench-level grounding / cable layout before installation.
- Describe the pass/fail method: visual confirmation, logged results, or fixture-controlled automation.
- Include quantity, delivery expectation, documentation needs, and any validation or FAT requirements.
If you are still comparing options, the cleanest CTA path is to review the three product pages side by side and request the model that matches the station’s workflow: eTM-1003 manual 100V model, eTM-1003F 4-digit model, and eTM-1003P programmable model. If your project is part of a larger cabinet, automation, or validation line discussion, TPS’s related guides on small industrial panel power design, RFQ-ready sizing for control cabinet PSUs, and practical alarm wiring to PLC inputs can also help engineering tighten the system-level specification before sourcing.
Need the right eTM1003 model for your bench or fixture?
TPS ELECTRIC LLC can support manual bench validation, tighter 4-digit readback workflows, and programmable 100V station builds. Start with the product page that matches your use case, then request a quote with your DUT profile, workflow expectations, and interface requirements: eTM-1003, eTM-1003F, eTM-1003P.
FAQ
1. What is the main difference between eTM-1003, eTM-1003F, and eTM-1003P?
All three share the same 0–100V, 0–3A, 300W platform. The difference is workflow depth. The standard eTM-1003 is the practical manual option, the eTM-1003F adds 4-digit visibility for tighter readback confidence, and the eTM-1003P adds programming, list output, memory recall, and stronger fit for repeatable automated work.
2. Is the eTM1003 Series a good fit for production fixtures?
Yes, but the model matters. For operator-driven verification, the manual or F-series can work well. For fixtures that need stored steps, remote control, or repeatable output sequences, the programmable eTM-1003P is usually the better long-term fit.
3. When should I choose the 4-digit F-series instead of the standard model?
Choose the F-series when the station’s cost is driven more by operator time, readback confidence, and verification speed than by raw wattage. If the station repeatedly confirms setpoints and technicians benefit from clearer display granularity, eTM-1003F is often the smarter purchase.
4. Does the eTM-1003P replace a larger automated power rack?
Not necessarily. It is best viewed as a compact programmable 100V / 3A / 300W source for repeatable bench and fixture work. If your test profile exceeds that electrical envelope or requires much broader system orchestration, you may need a larger architecture. But for many compact validation stations, it is the right automation step before going to a rack platform.
5. What should be included in the RFQ?
Include the DUT voltage/current profile, whether the station is manual or automated, interface expectations, mains input needs, grounding / layout constraints, quantity, timeline, and validation method. That gives TPS ELECTRIC LLC the detail needed to recommend the right eTM1003 Series model with fewer back-and-forth revisions.
