For U.S. system integrators, appliance OEMs, panel builders, sourcing teams, and electrical engineers, the YB-T Series is not just a catalog filter. It is a design decision that affects conducted emissions behavior, appliance safety integration, approval strategy, and the speed of your RFQ cycle. This guide explains how to evaluate YB-T against IEC 60939-3, IEC 60335-1, and UL 1283 without treating the filter like a generic “drop-in pass” part.
Bottom line: the YB-T Series on the TPS product page is positioned as a compact single-phase EMI line filter for appliances and general equipment, with 115/250V operation (DC to 400Hz), single-phase characteristics, and common-mode plus differential-mode noise suppression. The uploaded product sheet also shows multiple case styles (T1-T6), multiple internal circuit options (16, 12, 21, 27), and tab or wire output options. That combination makes YB-T useful for appliance-like designs that need a compact AC-input filter strategy, but it also means selection should be tied to the exact current, case, termination, and approval path rather than the series name alone.
That matters because compliance failures are rarely caused by only one missing part. In practice, late test failures usually come from the interaction among the filter, enclosure, line routing, PE bonding, harness length, switching topology, and documentation gaps. If your goal is faster U.S. qualification and fewer quote-stage surprises, treat YB-T as part of a controlled compliance package, not as a generic catalog accessory.
For many appliance and compact-equipment builds, the first EMI conversation starts when the lab reports excessive conducted noise on the AC input. That is exactly where a part like YB-T becomes relevant. A single-phase line filter near the mains entry can attenuate unwanted noise components before they couple back onto the supply, and TPS positions the YB-T Series for home appliances, refrigerators, washing machines, air conditioners, and compact general equipment. For U.S. buyers, that positioning is commercially useful because it fits the kinds of products that often need short design cycles, fast sourcing decisions, and repeatable qualification records.
However, the commercial promise is only valuable if the engineering decision is disciplined. A filter that works in one washer controller or HVAC subassembly may underperform in another if the inverter edge rates, cable routing, chassis bond, or line/load separation are different. That is why the TPS product page correctly emphasizes that final conducted-emissions results depend on the complete build, not the filter alone. If your team is already planning EMC pre-compliance lab work, fast pre-compliance testing, or a broader U.S. compliance selection review, the filter should be part of that larger workflow from day one.
Based on the current TPS product page, YB-T is presented as a single-phase filter / PCB board-mounted filter with a stated 1-20A current span and 115/250V (DC to 400Hz) operating voltage. The page description also highlights compactness, home-appliance relevance, and mitigation of both common-mode and differential-mode conducted noise. Meanwhile, the uploaded sheet visually indicates a 1-16A current range, multiple internal schematics identified as 16, 12, 21, and 27, and case variants T1 through T6. For a sourcing or certification team, that difference does not invalidate the series, but it does mean the exact approved variant should be confirmed during RFQ rather than assumed from a high-level catalog summary.
From a design standpoint, the uploaded sheet is useful because it reminds us that “YB-T Series” is a family, not a single build. The current rating, case, and termination style influence thermal behavior, packaging, assembly flow, and test repeatability. The same is true for mounting. One panel-cutout drawing is shown on the sheet, and several case drawings indicate that mechanical selection is part of the engineering decision. If you are working in a cabinet or appliance base where space is constrained, that can matter just as much as nominal current.
In other words, the right question is not “Does YB-T meet the standard?” The better question is “Which YB-T variant, integrated in which enclosure and wiring scheme, best supports the standard route for my final product?” That shift in thinking usually improves both engineering outcomes and procurement conversations.
Important RFQ note: if your documentation package has to satisfy U.S. OEM review, inspector questions, or third-party certification, ask TPS ELECTRIC LLC to identify the exact YB-T part number, current rating, circuit option, case style, termination style, and approval scope that will ship against your quote. That single step can prevent weeks of avoidable back-and-forth later.
The three named standards do not do the same job, and that is where many project teams lose time. One standard is centered on the filter family itself, another is centered on the end appliance, and another is frequently central to the U.S. path for EMI filters. When the responsibilities are separated clearly, selection becomes much faster.
IEC 60939-3 is the filter-centered standard in this discussion. Its scope is aligned with passive filter units for electromagnetic interference suppression where safety tests are appropriate, including single- and multi-channel filters in an enclosure or compact PCB-based entity. That makes it a practical anchor for evaluating whether the basic filter construction, terminals, and safety-relevant characteristics line up with the type of component you intend to install. For YB-T selection, this is where engineering teams should think about filter family fit, variant control, and whether the documentation available for the exact part is strong enough for the project’s approval path.
IEC 60335-1 is different. It is about the safety of household and similar electrical appliances as finished products or assemblies within that context. In practice, that means the filter is only one element inside a broader safety evaluation that includes wiring, accessible parts, abnormal operation, flammability considerations, mounting, and protection against hazards. A YB-T filter can support the appliance design, but it does not “transfer” end-product compliance by itself. The final mechanical location, distances, bonding, harness routing, and enclosure behavior still need to make sense in the appliance architecture.
UL 1283 is the most obviously U.S.-specific standard in this set. It addresses electromagnetic interference filters used on circuits up to specified AC or DC limits, and it matters because many U.S. customers want to know what the filter approval actually covers before they commit to the BOM. That is especially true for OEMs, panel builders, and contract manufacturers that want traceability in their supplier file. For YB-T, UL 1283 should be treated as a documentation and approval-alignment checkpoint: confirm that the exact variant you intend to buy is covered in a way that supports your product and installation conditions.
| Standard | Main question it answers | What your team should do with it |
|---|---|---|
| IEC 60939-3 | Is this the right type of passive EMI suppression filter, and is the supporting filter-level data appropriate? | Verify the exact YB-T variant, construction style, and available compliance records. |
| IEC 60335-1 | Is the final appliance integration safe in the real product context? | Review mounting, wiring, protection, spacing, and abnormal-condition behavior in the end appliance. |
| UL 1283 | Does the U.S. EMI filter approval path align with the exact component and installation? | Request approval scope, file references where applicable, and variant-specific traceability at RFQ stage. |
If your team also needs to coordinate the filter decision with broader power and compliance choices, the supporting TPS resources on EMC standards for power electronics, electrical safety checks before certification, and repeatable UL/CE documentation planning are worth using alongside the product review.
TPS already positions YB-T around appliance and appliance-like designs, and that is a sensible starting point. In air conditioners, the filter often sits near the mains entry of a control or power board where inverter switching noise can couple back to the line. In refrigerators and washing machines, it can support AC-input noise control in systems with motors, pumps, compressors, or switching supplies that inject broadband conducted noise. In small general-purpose equipment, the same logic applies when the build has a compact enclosure, a noisy power stage, and a realistic need to protect upstream wiring from noise propagation.
The key is that the application must match the variant. A line filter in a low-current controller enclosure may favor one case and termination style; a higher-current appliance interface may need another. Likewise, a board-mounted implementation for a compact appliance PCB is not selected the same way as a leaded or tab-terminated part used in a service-friendly assembly. The uploaded sheet suggests that YB-T is offered with both tab and wire-style outputs, which is useful for matching assembly constraints.
For U.S. procurement teams, the practical takeaway is simple: give TPS ELECTRIC LLC your real use case, not just a current number. Share the appliance type, nominal input, switching topology, enclosure concept, harness length, target standard route, and required documents. That produces a much better YB-T RFQ than a generic “quote your best 10A filter” request ever will.
Useful when inverter and control electronics create a conducted-noise problem at the AC entry, especially where layout discipline and short bond paths can be maintained.
Relevant where motors, relays, pumps, and switched power stages interact, and where the appliance safety route must be evaluated with the filter integrated into the final build.
Appropriate for space-constrained single-phase equipment that still needs disciplined EMC behavior and predictable documentation at quote stage.
Most effective when the sourcing package asks for exact variant mapping, approval scope, test support, and change-control expectations.
A filter can save a project, but only when it is installed like an EMC part rather than like generic wiring hardware. That means placement, routing, bonding, and separation matter immediately. The best time to enforce those rules is before the first formal lab booking.
If the goal is RFQ conversion and smoother customer qualification, do not wait for the formal certification lab to tell you whether the filter strategy works. Run a pre-compliance plan that answers the main risk questions early. At minimum, that means checking AC-input conducted emissions with the intended harness, enclosure, and grounding arrangement, then repeating after any filter, routing, or bonding changes. If your project also includes ESD, EFT, surge, or cabinet-level coupling risks, fold those into the same engineering checkpoint so the filter does not get blamed for unrelated layout weaknesses.
TPS already has a strong supporting content set for this part of the workflow. Engineers can use the guidance on EMC testing for typical power supplies and devices, conducted-emissions LISN setup mistakes, EFT versus surge fixes, and ESD failure diagnosis to build a more complete test plan around the filter decision.
A useful internal milestone is this: do not release the production BOM until the chosen YB-T variant has been checked in the real mechanical stack-up and documented in the test notes. That single rule improves repeatability for engineering, quality, and procurement.

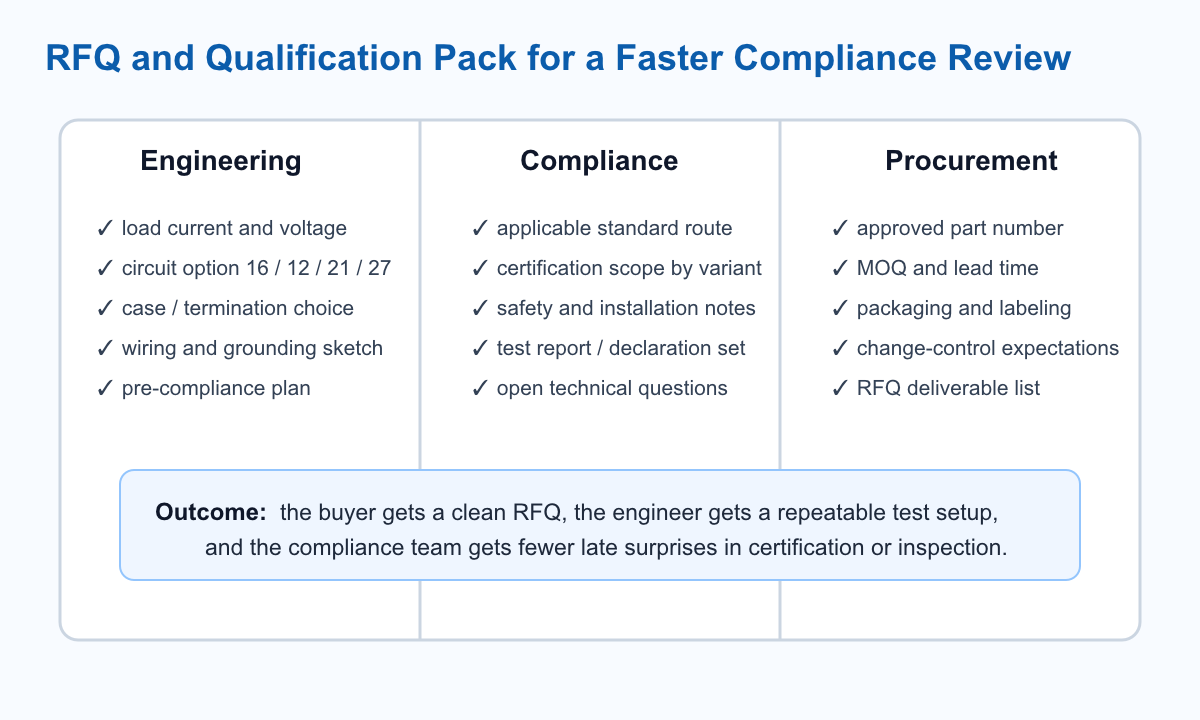

Strong RFQs close faster because they remove ambiguity. With a filter family like YB-T, the procurement package should be specific enough that engineering, sourcing, and compliance are all reviewing the same part definition. Ask for the approved part number, current rating, case style, termination style, applicable standard route, available test reports or declarations, and any installation constraints that matter to the product design. If your customer or inspector expects controlled documentation, define that deliverable list before the PO, not after the lab booking.
This is also where internal manufacturing and inspection workflows matter. If the finished equipment is going into a panelized or inspected environment, the broader TPS resources on what inspectors look for under NEC, panel marking, wire labeling, and FAT records can help the team build a cleaner documentation trail around the selected filter.
One more point matters for risk management: there is a visible current-range discrepancy between the uploaded sheet and the current TPS product page. That should not stop the project, but it should trigger a formal clarification in the RFQ. A disciplined buyer will simply ask TPS ELECTRIC LLC to confirm the exact shipping variant and the approval scope that applies to it. That is a normal and healthy step in a compliance-driven purchasing process.
BoFu buyers do not need another generic EMI article. They need a supplier conversation that reduces uncertainty. The real value of early engagement with TPS ELECTRIC LLC is not only product availability. It is the chance to align the filter variant, application context, documentation set, and test plan before the project enters an expensive review phase. That is especially important when the end customer, certification body, or contract manufacturer wants variant-level traceability.
If your team is choosing among several line-filter options, start with the YB-T Series product page, then send an RFQ that includes the intended standard route, appliance type, operating current, wiring concept, mounting constraints, and required compliance documents. That gives TPS the context needed to respond with a technically usable quote instead of a generic catalog response. It also improves the odds that your first lab setup will reflect the real production build.
Send TPS ELECTRIC LLC the exact current target, use case, enclosure concept, wiring method, and required documentation route. That is the fastest way to turn YB-T from a possible filter into a controlled compliance decision.
No. A line filter can materially improve conducted-emissions performance, but pass/fail results still depend on the full product build, including layout, enclosure, harness routing, grounding, and the noise signature of the power stage.
Because they address different layers of the problem. IEC 60939-3 is tied to passive EMI suppression filter requirements, while IEC 60335-1 is tied to the safety of the final household or similar appliance. Engineers need both views when a filter is integrated into an end product.
At the beginning. If the final product is headed toward a U.S. approval path, the buyer should confirm the exact filter variant and its approval scope before locking the BOM or planning formal certification.
Provide the target current, operating voltage, equipment type, switching topology, enclosure constraints, wiring style, mounting preference, intended standards route, and the specific documents your compliance or customer team will require.
Because the series appears to include multiple circuit diagrams, case styles, and termination options, and the uploaded sheet and current product page show different headline current ranges. Exact variant definition avoids documentation mismatches later.
