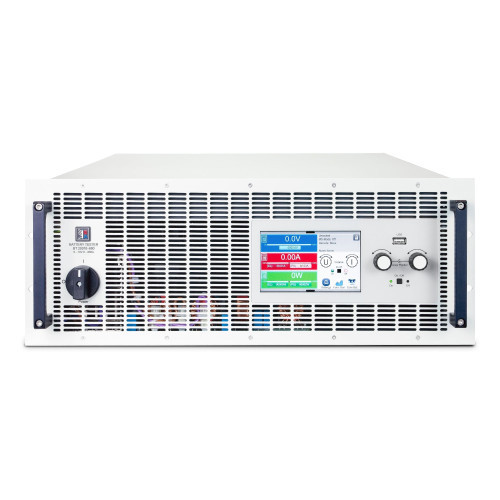

0-60V per channel, 0-500A per channel (180A parallel total), and 15000W total autoranging power in a compact 3U 19" rack chassis. Three independent bidirectional channels with regenerative energy recovery up to 96%. 18-bit digital control, 1 ms command cycle, CV/CC/CP/CR modes, reverse polarity detection, auto pre-charge, and dynamic sense regulation. Built-in Gbit Ethernet, EtherCAT, CAN FD, ProfiNet. Ideal for high-current low-voltage battery cell, module, and pack testing for EV, energy storage, and second-life applications.

Output Current

0-500A

Output Power

15000W

Output Voltage

0-60V

Type

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output: 3 independent bidirectional channels, each 0-60V, 0-500A (180A total in parallel – verify).
Total power: 15000W (5000W per channel, autoranging).
Energy recovery efficiency: up to 96% in discharge mode, feeding energy back to the grid.
Regulation modes: CV, CC, CP, CR for complete battery test flexibility.
Control speed: 1 ms command cycle; selectable Normal, Fast, Slow control loops.
Safety: Reverse polarity detection, automatic pre-charge, dynamic sense regulation for cable fault detection.

What It Is + Why It Matters

High-current bidirectional battery tester for low-voltage high-power battery cells, modules, and packs – ideal for automotive, energy storage, and renewable energy.
Three independent channels enable parallel testing of multiple cells or parallel operation for high-current single output (up to 180A as specified).
Energy recovery up to 96% drastically reduces energy costs and heat dissipation, minimizing HVAC requirements.
High precision and speed – 18-bit digital control ensures accurate measurements; 1 ms command cycle for real-time control.
Comprehensive safety features protect both the tester and the battery under test.
Scalable architecture – parallel up to 64 units for system power up to 1.92 MW.

Note: Autoranging technology provides full power across voltage and current range. Always follow battery safety guidelines.

Key Specs (EA-BT 20060-500 3U)

Voltage per channel: 0-60V (adjustable).
Current per channel: ±500A (bidirectional).
Power per channel: 5000W (autoranging).
Total device power: 15,000W.
Parallel operation: up to 180A per device (as per description – verify).

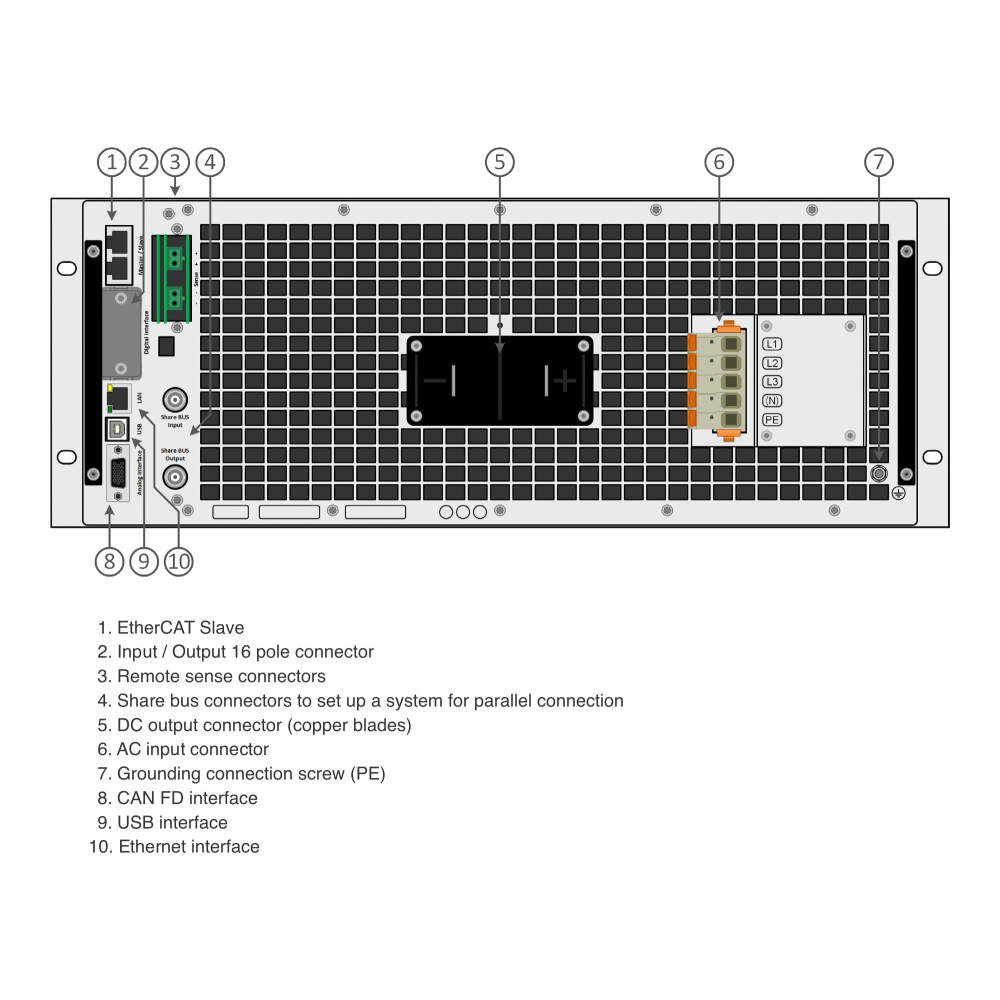

Communication interfaces: Gbit Ethernet, EtherCAT, CAN FD, ProfiNet (built-in).
Supported protocols: SCPI, ModBus, LabVIEW, IVI drivers.
Measurement resolution: 18-bit digital control.
Dimensions: 19" rack, 3U height. Weight: approx. 32-35 kg.

Interfaces & Software

Built-in high-speed communication: Gbit Ethernet, EtherCAT, CAN FD, ProfiNet – 1 ms cycle time.
USB host on front panel for data logging and test sequence loading.
Digital I/O for external control and status monitoring.
Included software: EA Power Control for test sequencing, EA Battery Simulator for emulation.
Programming support: SCPI, ModBus commands; LabVIEW and IVI drivers available.
Remote sense per channel with dynamic sense regulation and reverse polarity detection.

Best for / Not for

Best for: High-current low-voltage battery cell cycling (Li-ion, LFP, solid-state), module and pack formation, charge/discharge characterization, second-life battery testing, and production end-of-line (EOL) testing in EV, energy storage, and aerospace.
Not for: Applications requiring voltage above 60V per channel (use higher voltage BT models); lower current requirements (overkill).

Selection Checklist + Integration

Confirm battery voltage ≤ 60V per channel and current ≤500A per channel (parallel total 180A per spec).
DC connection: For 500A, use multiple parallel cables (e.g., 2x120mm² per pole) with low-inductance busbars.
Mounting: 19" rack, 3U height, allow >30cm rear clearance for airflow.
For master-slave parallel (up to 64 units): Connect Share bus and digital bus; total system power up to 1.92 MW.
For energy recovery: Ensure AC grid can accept regenerated power; check local regulations for grid protection device.
Software: Use EA Power Control for automated test sequences; EA Battery Simulator for battery emulation.
