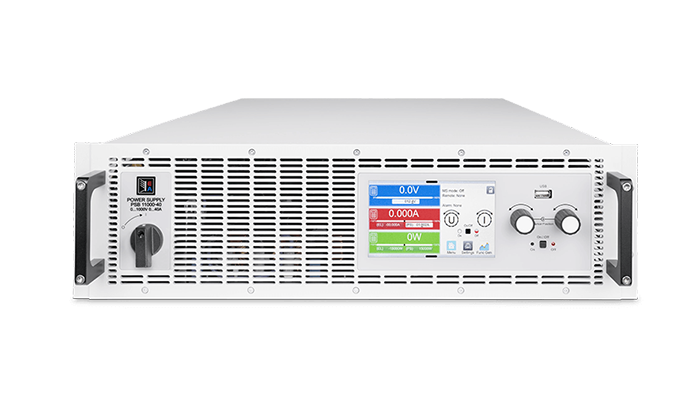

0-200V input voltage, 0-210A current, and 15000W autoranging power with regenerative energy recovery up to 94.5% in a compact 3U 19" rack chassis. Built-in function generator, battery test, MPPT tracking, internal resistance simulation, touchscreen HMI, analog & digital remote control, master-slave parallel up to 960kW, and full protections (OVP/OCP/OPP/OT). Ideal for high-current battery discharge, fuel cell testing, power supply burn-in, and industrial ATE.

Output Current

0-210A

Output Power

15000W

Output Voltage

0-200V

Type

Characteristic Curve

U/I/P autoranging

External Control

Analogue 0-5V/0-10V, USB, LAN, Profibus, DeviceNet, RS232, CAN, Modbus

Housing

19" rack

Human Interface

Touch panel & Menu

Special Feature

Function Generator, Resistance

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Input: 0-200V, 0-210A, 15000W with true autoranging (U/I/P).
AC input: 380-480V ±10%, 3-phase, 45-66Hz. On 208V input, derates to 9000W.
Energy recovery efficiency: up to 94.5% in sink mode.
Ripple: ≤40mV rms / ≤300mV pp (CV mode, 300 kHz / 20 MHz BW).
Protections: Adjustable OVP, OCP, OPP, plus OT, PF, SF.
Built-in function generator, battery test, MPPT tracking, and resistance mode.
Cooling: Forced air flow front to rear, temperature-controlled fans.

What It Is + Why It Matters

High-current regenerative electronic load – sinks DC power and feeds back up to 94.5% of absorbed energy to the grid, reducing cooling and electricity costs.
Wide current range 0-210A perfect for high-capacity battery discharge, fuel cell loading, and power supply burn-in.
Built-in function generator with sine, triangle, rectangular, trapezoid, arbitrary (99 points), ramp, DIN 40839, plus battery test (static/dynamic discharge) and MPPT tracking (4 modes).
Internal resistance simulation (CR mode) for realistic battery and fuel cell loading.
Master-Slave parallel – up to 64 units for 960kW total system power; true current sharing via Share bus and digital MS bus.
High dynamics: Current rise time ≤2ms (10-90%).

Note: Remote sensing compensates up to 5% of U_Nom. Always use DC terminal covers. Check local regulations for grid feed-in (grid protection device may be required).

Key Specs (EA-ELR 10200-210 3U)

Voltage range: 0-200V (adjustable).
Current range: 0-210A (adjustable).
Power range: 15000W (peak and steady at 21°C).
Internal resistance range: 0.03Ω – 50Ω (approx., from spec table).
Min. input voltage for Imax: ≈2V.
Rise time (10-90% Inom): ≤2ms; Fall time ≤2ms.
Display accuracy: Voltage ≤0.05% FS, Current ≤0.1% FS.
Insulation: AC input to DC input 3750Vrms; DC minus to PE ±1000V, DC plus to PE +1000V.
Output capacitance: 7560μF.
Dimensions (WxHxD): 19" x 3U x 668mm. Weight: ~32.8 kg (72 lb).

Interfaces & Remote Control

Standard digital: USB (rear B) + Ethernet (100M) supporting SCPI and ModBus RTU; USB host (front) for data logging/sequence loading.
Built-in analog interface (15-pin D-Sub): 0-5V / 0-10V selectable range for set/readback of U/I/P/R; includes remote on/off, alarm outputs, and CV status.
Optional plug-in modules (IF-AB series): Profibus, ProfiNet, CAN, CANopen, RS232, ModBus TCP, EtherCAT – retrofittable.
Web server on LAN port for configuration and manual SCPI commands.
Remote sense for accurate voltage measurement at source terminals.

Best for / Not for

Best for: High-current battery discharge testing (EV modules, lead-acid banks), fuel cell stack loading, DC power supply burn-in, solar panel MPPT characterization, and industrial ATE requiring up to 200V/210A.
Not for: Series connection of multiple loads (not permitted); source operation (power supply only); applications requiring output above 200V (use higher voltage ELR models).

Selection Checklist + Integration

Confirm source voltage ≤200V DC and current ≤210A (peak 15000W). Note derating on 208V AC input to 9000W.
DC cable cross-section: For 210A, use at least 95mm² (AWG4/0) per pole; use ring lugs (M8 bolt for Type 1 terminal).
Mounting: 19" rack, 3U height, allow >30cm rear clearance for airflow.
For master-slave parallel: Connect Share bus (BNC) and MS bus (RJ45 CAT5); terminate ends via internal settings (BIAS/TERM). Up to 64 units.
For energy recovery: Ensure grid connection can accept regenerated power; may require external grid protection device per local regulations (e.g., VDE-AR-N 4105).
For battery test: Use built-in static or dynamic discharge mode with adjustable discharge voltage, time, and capacity thresholds.
For MPPT tracking: Select mode MPP1 (find MPP), MPP2 (track), MPP3 (fast track), or MPP4 (user-defined curve via USB).
For remote sensing: Use supplied sense connector to compensate voltage drop; do not connect NC pins (200V model has no NC restriction).
Firmware updates via USB-B and EA Power Control software (included).
