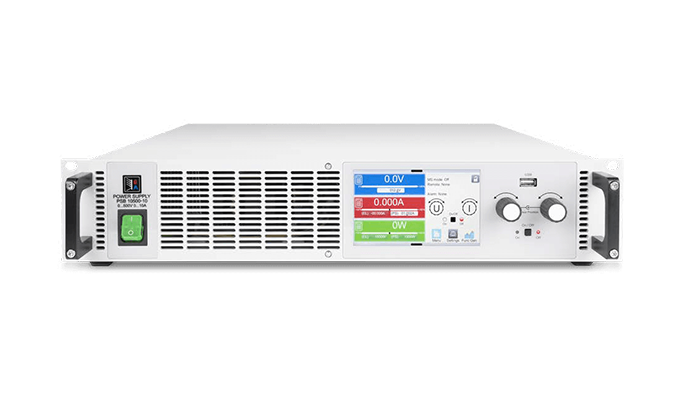

High-density EA-PS 10000 2U series programmable DC power supplies with wide 60–1500V output, 6–120A current, and 1500–3000W auto‑ranging power in a 19‑inch 2U rack enclosure. Featuring active PFC, up to 95% efficiency, a 5″ TFT touch panel, remote sensing, Share bus for parallel connection, and built‑in analog/USB/Ethernet interfaces with optional CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, and EtherCAT, they are perfectly suited for automated test systems, industrial electronics, and high‑power laboratory experiments demanding minimal rack space.

Model

PS 10060-60, PS 10080-60, PS 10200-25, PS 10360-15, PS 10500-10, PS 10750-06, PS 10060-120, PS 10080-120, PS 10200-50, PS 10360-30, PS 10500-20, PS 10750-12, PS 11000-10, PS 11500-06

Output Power (Max/Derated)

1500W / 1200W, 3000W / 1500W

Output Voltage (CV Range)

0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V, 0-1000V, 0-1500V

Output Current (CC Range)

0-6A, 0-10A, 0-12A, 0-15A, 0-20A, 0-25A, 0-30A, 0-50A, 0-60A, 0-120A

AC Input

110-240V AC (active PFC)

Type

Programmable DC Power Supply

External Control

Analog, USB, Ethernet, Optional CAN, Optional CANopen, Optional RS232, Optional Profibus, Optional ProfiNet, Optional ModBus TCP, Optional EtherCAT

Housing

19" 2U Rackmount

Special Features

Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Safety OVP (60V SELV models), SCPI, ModBus RTU, LabView VIs, SEMI F47

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	Output Power (Max/Derated)	Output Voltage (CV Range)	Output Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PS 10060-60	1500W / 1200W	0-60V	0-60A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Safety OVP (SELV), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10080-60	1500W / 1200W	0-80V	0-60A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10200-25	1500W / 1200W	0-200V	0-25A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10360-15	1500W / 1200W	0-360V	0-15A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10500-10	1500W / 1200W	0-500V	0-10A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10750-06	1500W / 1200W	0-750V	0-6A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10060-120	3000W / 1500W	0-60V	0-120A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Safety OVP (SELV), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10080-120	3000W / 1500W	0-80V	0-120A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10200-50	3000W / 1500W	0-200V	0-50A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10360-30	3000W / 1500W	0-360V	0-30A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10500-20	3000W / 1500W	0-500V	0-20A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 10750-12	3000W / 1500W	0-750V	0-12A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 11000-10	3000W / 1500W	0-1000V	0-10A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47
PS 11500-06	3000W / 1500W	0-1500V	0-6A	110-240V AC	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 2U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), SCPI & ModBus RTU, LabView VIs, SEMI F47

30-Second Fit Check

Need high power in a minimal rack space? Models cover 0-60V to 0-1500V, with currents up to 120A.
Output power: 1500W or 3000W with fully autoranging output; efficiency up to 95%.
Only 2U (88 mm) height fits any standard 19" rack; temperature-controlled fans for silent operation.
Built-in analog, USB, and Ethernet interfaces (galvanically isolated); SCPI & ModBus RTU support.
Protection suite: OVP, OCP, OPP, OT, PF, MSP, SF; Share bus and master-slave for parallel connection of up to 64 units.

What It Is + Why It Matters

Compact 19" 2U programmable DC power supplies designed for automated test systems and high-power laboratory setups.
The autoranging output stage delivers maximum voltage at lower current or maximum current at lower voltage – one unit covers a wide load range.
True master-slave parallel operation with summed actual values and shared setpoints across units, plus a Share bus for dynamic voltage balancing – scalable to 192kW.
Galvanically isolated analog and digital interfaces ensure noise-immune remote control; optional plug-in modules for CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT.
60V models are SELV compliant with an additional Safety OVP feature for enhanced protection.

Note: 1500W models accept 110-240V AC single phase; 3000W models accept 110-240V AC. Both derate power at lower input voltages (1200W/1500W at 110-127V AC). Must be installed in a closed 19" rack with lockable doors.

Key Specs

AC input: 1500W: 110-240V AC, 3000W: 110-240V AC, single phase, active PFC, 45-65Hz.
Output voltage: 0-60V up to 0-1500V; Output current: 0-6A up to 0-120A.
Output power: 0-1500W or 0-3000W (adjustable power limit); derating to 1200W/1500W at 110-127V AC input.
Efficiency: up to 95%; Regulation accuracy: CV ≤0.05%, CC ≤0.1%.
Control panel: 5" TFT colour touchscreen (800x480), 2 rotary knobs with push function, panel lock.
Interfaces: 15-pin analog (0-5/10V), USB-B, USB-A, Ethernet, plus optional industrial bus modules.
Master-slave bus (RS485 via RJ45) + Share bus (BNC) for up to 64 units parallel operation.
Dimensions (WxHxD): 19" x 2U x approx. 500mm; Weight: approx. 12.5-13.5 kg (model dependent).

Integration & Installation

DC output, remote sensing, and share bus terminals on the rear panel; 19" rack mount ears integrated.
Mains input via 3-pole clamp terminal (L, N, PE); verify AC supply matches model (1500W: 110-240V, 3000W: 110-240V).
Master-slave connection via standard CAT5 patch cables; Share bus via BNC coaxial cables (50Ω); supports mixed power classes within the same series.
Optional interface modules are user-installable in the rear slot; ESD precautions apply during module exchange.
Must be installed in a closed 19" rack/cabinet with lockable doors; ensure adequate ventilation (min. 30cm rear clearance).

Best for / Not for

Best for: High-power automated test systems (ATE), industrial DC bus simulation, battery charging (with proper supervision), high-density laboratory racks, semiconductor testing, and applications requiring scalable parallel power.
Not for: AC output, floating outputs that require grounding the positive beyond specified limits, environments lacking adequate cooling space, or direct series connection of models rated above 500V output.

Selection Checklist + RFQ

Choose voltage/current model matching your load (60V, 80V, 200V, 360V, 500V, 750V, 1000V, 1500V options).
Confirm total power requirement ≤ 1500W or 3000W; note autoranging reduces current at high voltage and derating applies at 110-127V AC input.
Verify available AC mains (single-phase 110-240V) and required AC cord/terminal wiring.
Select required interfaces: built-in analog/USB/Ethernet plus any optional industrial bus modules.
For master-slave operation, specify total system power and number of units; ensure all units have same voltage rating.
Plan for installation in a closed 19" rack with adequate cooling and lockable doors.
