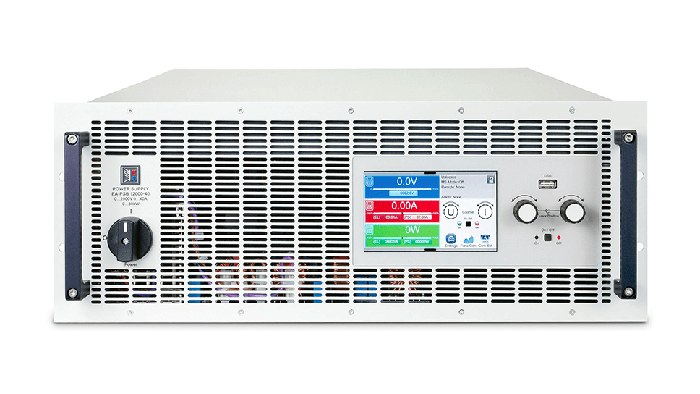

EA-PS 10000 4U Series programmable DC power supply delivering 30 kW output with models covering 0–60 V to 0–2000 V and currents up to 1000 A in a 4U 19-inch rack chassis. Equipped with a galvanically isolated analog interface, USB, and Ethernet, it is perfectly suited for industrial testing, battery charging, and laboratory automation.

Model

PS 10060-1000, PS 10080-1000, PS 10200-420, PS 10360-240, PS 10500-180, PS 10750-120, PS 10920-125, PS 11000-80

DC Power (Max/Derated)

30 kW / 18 kW (at 208 V input)

DC Voltage (CV Range)

0-60 V, 0-80 V, 0-200 V, 0-360 V, 0-500 V, 0-750 V, 0-920 V, 0-1000 V

DC Current (CC Range)

0-1000 A, 0-420 A, 0-240 A, 0-180 A, 0-120 A, 0-125 A, 0-80 A

AC Input

380-480 V 3ph (208 V with derating to 18 kW)

Type

Programmable DC Power Supply

External Control

Analog, USB, Ethernet (optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)

Housing

4U 19-inch Rack

Special Features

Internal Resistance Mode, Master-Slave Parallel (up to 64 units), USB Data Logging, Remote Sense, Voltage Controller Speed Selectable, SEMI F47, Optional Water Cooling

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – EA-PS 10000 4U Series

Model	Power	Voltage Range	Current Range	Type	Characteristic Curve	Ripple (CV rms / pp)	Efficiency (up to)	Insulation (DC- / DC+ to PE)	External Control	Housing	Human Interface	Cooling Options	Special Features
PS 10060-1000	30 kW	0-60 V	0-1000 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤25 mV / ≤320 mV	95.1%	±600 V / ±600 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense, Safety OVP
PS 10080-1000	30 kW	0-80 V	0-1000 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤25 mV / ≤320 mV	95.5%	±600 V / ±600 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense
PS 10200-420	30 kW	0-200 V	0-420 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤40 mV / ≤300 mV	95.3%	±1000 V / ±1000 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense
PS 10360-240	30 kW	0-360 V	0-240 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤55 mV / ≤320 mV	95.8%	±1000 V / ±1000 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense
PS 10500-180	30 kW	0-500 V	0-180 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤70 mV / ≤350 mV	96.5%	±1500 V / +2000 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense
PS 10750-120	30 kW	0-750 V	0-120 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤200 mV / ≤800 mV	96.5%	±1500 V / +2000 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense
PS 10920-125	30 kW	0-920 V	0-125 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	≤200 mV / ≤800 mV	96.5%	±1500 V / +2000 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense
PS 11000-80	30 kW	0-1000 V	0-80 A	Programmable DC Power Supply	Auto-Ranging CV/CC/CP/CR	<300 mV / <1600 mV	95.8%	±1500 V / +2000 V	Analog, USB, Ethernet (optional: CAN, Profibus, etc.)	4U 19-inch Rack	5" TFT Touch, 2 Knobs	Air (std.), Water (opt.)	Master-Slave (up to 64 units), USB Logging, Remote Sense

30-Second Fit Check

Need a high-power DC source? All models deliver 30 kW with voltage ranges from 0-60 V up to 0-1000 V and currents up to 1000 A.
Four regulation modes: Constant Voltage (CV), Constant Current (CC), Constant Power (CP), Constant Resistance (CR) with adjustable internal resistance simulation.
Comprehensive protection: Overvoltage (OVP), Overcurrent (OCP), Overpower (OPP), Overtemperature (OT), and Safety OVP (60 V model only).
Built-in color TFT touchscreen HMI with two rotary knobs; optional water cooling for reduced audible noise and cooler exhaust.
Remote control via galvanically isolated analog (0-5/10 V), USB, Ethernet (SCPI/ModBus RTU), and optional industrial interfaces (CAN, Profibus, EtherCAT).

What It Is + Why It Matters

High-performance 30 kW programmable DC power supply series designed for industrial test systems, laboratory experiments, and automated production lines.
While PS 10000 series models lack the built-in function generator, they excel as a robust, reliable DC source for continuous power delivery and master-slave parallel operation.
True master-slave parallel operation supports up to 64 units for a total of 1920 kW, with automatic current sharing via the Share bus.
Designed for seamless integration with standard 19-inch rack cabinets; optional water cooling is available for environments where heat dissipation is a critical factor.

Note: The 60 V model incorporates reinforced insulation and a Safety OVP alarm that triggers at 60.6 V to maintain SELV compliance. Always use remote sensing to compensate for cable voltage drop (max. 5% U_Nom).

Key Specs

AC input: 380-480 V, 3ph (208 V with derating to 18 kW), 45-65 Hz, power factor ~0.99.
Load regulation: ≤0.05% FS (CV), ≤0.1% FS (CC); stability: ≤0.02% FS over 8 h.
Rise time (10-90%): ≤10 ms (CV), ≤2 ms (CC); display accuracy: 0.05% (V), 0.1% (I).
Interfaces: 1x USB-B, 1x Ethernet (100 Mbit), 1x USB-A (host), 1x 15-pin D-Sub analog; slot for optional fieldbus modules.
Remote sensing compensation: up to 5% of nominal voltage; digital master-slave bus via dual RJ45.
Dimensions: 4U 19-inch rack chassis; weight varies by model. Water-cooled versions available.

Integration & Installation

DC output via copper blade terminals with M10 (up to 200 V) or M6 (≥360 V) bolts; use ring lugs or copper bars for low inductance.
AC input via a 5-pole plug (3x L + PE, N optional); included strain relief and grounding point for additional PE connection.
USB stick slot (front) for data logging and profile save/load (FAT32, max 32 GB).
Voltage controller speed selectable (Slow/Normal/Fast) to minimize overshoot; SEMI F47 ride-through available (firmware KE 3.02+).

Best for / Not for

Best for: High-power battery charge/discharge testing, industrial DC motor testing, semiconductor burn-in, large-scale laboratory DC power needs, and as slave units in master-slave systems with PSI 10000 masters.
Not for: Direct connection to generators or UPS (must run on grid); series connection of models with DC+ potential exceeding 2000 V (e.g., 1000 V model); use without proper DC terminal cover when voltage presents a hazard.

Selection Checklist + RFQ

Choose model based on required voltage (60 V … 1000 V) and current (80 A … 1000 A) ratings.
Confirm AC supply: 400 V or 208 V (derated power 18 kW).
Select cooling: standard air cooling or optional water cooling (lower noise, no waste heat into room).
Specify needed interfaces (analog, Ethernet, USB) and optional fieldbus module (CAN, Profibus, EtherCAT, etc.).
Plan for rack depth and clearance (≥30 cm rear for air cooling) and DC cable cross-section per rated current.
