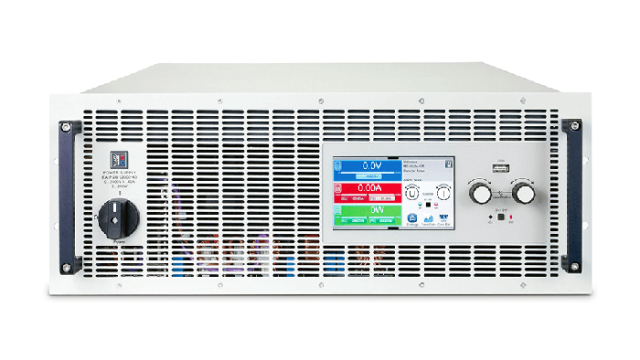

Versatile EA-PSB 10000 4U series bidirectional programmable DC power supplies with wide 10–2000V voltage, 40–1000A current, and 10–30kW autoranging power in a 4U 19‑inch rack enclosure. Featuring active PFC, up to 96.5% efficiency, a 5″ TFT touch panel, built‑in function generator, master‑slave parallel capability for up to 64 units (1920kW), and galvanically isolated analog/USB/Ethernet interfaces with optional CAN, Profibus, ProfiNet, and more, they are expertly suited for battery testing, solar panel and fuel cell simulation, automotive electronics validation, and high‑power automated test systems demanding seamless source‑sink operation and energy efficiency.

Model

PSB 10010-1000, PSB 10060-1000, PSB 10080-1000, PSB 10200-420, PSB 10360-240, PSB 10500-180, PSB 10750-120, PSB 10920-125, PSB 11000-80, PSB 11500-60, PSB 12000-40

DC Power (Max/Derated)

10000W / 10000W, 30000W / 18000W

DC Voltage (CV Range)

0-10V, 0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V, 0-920V, 0-1000V, 0-1500V, 0-2000V

DC Current (CC Range)

0-40A, 0-60A, 0-80A, 0-120A, 0-125A, 0-180A, 0-240A, 0-420A, 0-1000A

AC Input

208-480V AC, 3ph (active PFC)

Type

Programmable Bidirectional DC Power Supply

External Control

Analog, USB, Ethernet, Optional CAN, Optional CANopen, Optional RS232, Optional Profibus, Optional ProfiNet, Optional ModBus TCP, Optional EtherCAT

Housing

19" 4U Rackmount

Special Features

Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV Simulation, Fuel Cell Simulation, EN 50530 PV, Battery Test, MPPT Tracking, Master-Slave (up to 64 units), Share Bus, Remote Sense, SCPI & ModBus RTU, LabView VIs, Optional Water Cooling

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	DC Power (Max/Derated)	DC Voltage (CV Range)	DC Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PSB 10010-1000	10000W / 10000W	0-10V	0-1000A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 93.8%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10060-1000	30000W / 18000W	0-60V	0-1000A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 95.1%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10080-1000	30000W / 18000W	0-80V	0-1000A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 95.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10200-420	30000W / 18000W	0-200V	0-420A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 95.3%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10360-240	30000W / 18000W	0-360V	0-240A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 95.8%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10500-180	30000W / 18000W	0-500V	0-180A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10750-120	30000W / 18000W	0-750V	0-120A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 10920-125	30000W / 18000W	0-920V	0-125A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 11000-80	30000W / 18000W	0-1000V	0-80A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 11500-60	30000W / 18000W	0-1500V	0-60A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling
PSB 12000-40	30000W / 18000W	0-2000V	0-40A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Sink up to 96.5%, Autoranging, Function Generator, PV/FC Simulation, EN 50530, Battery Test, MPPT, Master-Slave (up to 64 units/1920kW), Share Bus, Remote Sense, SCPI & ModBus, LabView VIs, Optional Water Cooling

30-Second Fit Check

Need a single unit that can source and sink high power? Models span 10V to 2000V, with currents up to 1000A.
DC power: 10kW or 30kW with fully autoranging output; regenerative energy recovery up to 96.5%.
Seamless two-quadrant operation between source and sink modes with automatic crossover.
Built‑in 5" TFT touch panel with function generator, battery test, and MPPT tracking.
Protection suite: OVP, OCP, OPP, OT, PF, MSP, SF; master-slave parallel for up to 64 units (1920kW).

What It Is + Why It Matters

Compact 4U 19" rack bidirectional DC power supply integrating both a programmable source and a regenerative electronic load in one device.
The autoranging output stage delivers maximum voltage at lower current or maximum current at lower voltage; sink mode recovers up to 96.5% of absorbed energy back to the grid.
Advanced simulation capabilities: simple and extended PV (EN 50530), fuel cell, battery test, and MPPT tracking enable comprehensive component testing without extra hardware.
Multiple galvanically isolated interfaces: analog (0-5/10V), USB, Ethernet plus optional industrial buses (CAN, Profibus, ProfiNet, EtherCAT, ModBus TCP, RS232).
True master-slave parallel operation for up to 64 units with Share bus for dynamic current balancing; optional water cooling for reduced noise and better thermal management.

Note: In sink mode, the device recovers energy to the grid; consult local utility regulations and consider a grid protection device. 30kW models derate to 18kW at 208V AC input. Must be installed in a closed 19" rack with adequate ventilation or optional water cooling.

Key Specs

AC input: 208-480V AC, 3-phase, active PFC, 45-65Hz; 30kW models derate to 18kW at 208V.
DC voltage range: 0-10V up to 0-2000V; DC current: 0-40A up to 0-1000A.
DC power: 10kW or 30kW (autoranging with adjustable power limit).
Efficiency: up to 96.5% in both source and sink modes.
Display: 5" TFT colour touchscreen (800x480) with two rotary knobs; separate set values for source and sink modes.
Interfaces: 15-pin analog (0-5/10V), USB-B, USB-A, Ethernet; optional IF-AB modules for CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT.
Master-slave bus (RS485 via RJ45) + Share bus (BNC) for up to 64 units.
Dimensions (WxHxD): 19" x 4U x approx. 668mm; Weight: approx. 50 kg (air-cooled), 56 kg (water-cooled).

Integration & Installation

DC output via copper busbars (M10 or M6 bolts) on the rear panel; plastic covers and strain relief accessories included.
AC mains via 5-pole connector (3x L, N, PE) or 4-wire (3x L, PE); fixed connection required with external circuit breaker.
Master-slave connection via standard CAT5 patch cables; Share bus via BNC coaxial cables (50Ω).
Optional water cooling available; must be installed in a closed 19" rack/cabinet with lockable doors and adequate ventilation or water supply.

Best for / Not for

Best for: Battery charge/discharge cycling, solar inverter testing with PV simulation (EN 50530), fuel cell simulation, automotive 48V/400V/800V system validation, bidirectional DC-DC converter testing, and any application requiring a seamless source-sink transition with high-power energy recovery.
Not for: Applications requiring only a dedicated electronic load without source capability, environments without adequate rack cooling, direct series connection in sink mode (not permitted), or locations without proper three-phase AC supply and grid compliance for energy feedback.

Selection Checklist + RFQ

Choose voltage/current model matching your test requirements (10V, 60V, 80V, 200V, 360V, 500V, 750V, 920V, 1000V, 1500V, or 2000V).
Verify total power demand ≤ 10kW or 30kW, noting autoranging characteristics and derating to 18kW at 208V AC input for 30kW models.
Confirm three-phase AC supply availability (208-480V AC) and plan for fixed connection with proper circuit protection.
Select required interfaces: built-in analog/USB/Ethernet plus any optional industrial bus modules (e.g., CAN, ProfiNet).
For master-slave operation, specify total system power and number of units; ensure all units have the same voltage rating.
Plan for energy recovery grid compliance and possible grid protection device installation; consider optional water cooling for high-density cabinets.
