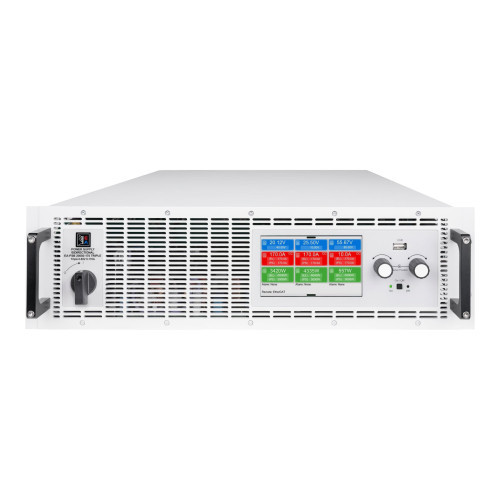

Ultra-compact EA-PSB 20000 Triple 3U series 3-channel bidirectional programmable DC power supplies with wide 60–920V output, 20–170A current, and 5kW per channel (15kW total) autoranging power in a space‑saving 3U 19‑inch rack enclosure. Featuring three independent, galvanically isolated channels, active PFC, up to 96% energy recovery, a built‑in function generator with PV and fuel cell simulation, and high‑speed EtherCAT, CAN FD, USB, and Ethernet interfaces, they are expertly suited for multi‑component automotive testing, battery simulation, on‑board charger validation, and high‑density automated test systems demanding maximum channel density and energy efficiency.

Model

PSB 20060-170 Triple, PSB 20080-170 Triple, PSB 20200-70 Triple, PSB 20360-40 Triple, PSB 20500-30 Triple, PSB 20920-20 Triple

Power per Channel (Max)

5kW

Total Device Power

15kW

Output Voltage (CV Range)

0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-920V

Output Current (CC Range)

0-20A, 0-30A, 0-40A, 0-70A, 0-170A

AC Input

208-480V AC, 3ph (active PFC)

Type

Programmable Bidirectional DC Power Supply (3-Channel)

External Control

EtherCAT, CAN FD, Ethernet, USB, Digital I/O

Housing

19" 3U Rackmount

Special Features

3 Galvanically Isolated Channels, Regenerative Sink up to 96%, Autoranging, Function Generator, PV/FC Simulation, Master-Aux Bus (up to 8 units), Share Bus, SCPI, ModBus RTU

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	Power per Channel (Max)	Output Voltage (CV Range)	Output Current (CC Range)	Total Device Power	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PSB 20060-170 Triple	5kW	0-60V	0-170A	15kW	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply (3-Channel)	EtherCAT, CAN FD, Ethernet, USB, Digital I/O	19" 3U Rackmount	3 Galvanically Isolated Channels, Regenerative Sink up to 94.5%, Autoranging, Function Generator with PV/FC Simulation, Master-Aux Bus (8 units/120kW), Share Bus per Channel
PSB 20080-170 Triple	5kW	0-80V	0-170A	15kW	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply (3-Channel)	EtherCAT, CAN FD, Ethernet, USB, Digital I/O	19" 3U Rackmount	3 Galvanically Isolated Channels, Regenerative Sink up to 94.5%, Autoranging, Function Generator with PV/FC Simulation, Master-Aux Bus (8 units/120kW), Share Bus per Channel
PSB 20200-70 Triple	5kW	0-200V	0-70A	15kW	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply (3-Channel)	EtherCAT, CAN FD, Ethernet, USB, Digital I/O	19" 3U Rackmount	3 Galvanically Isolated Channels, Regenerative Sink up to 94.5%, Autoranging, Function Generator with PV/FC Simulation, Master-Aux Bus (8 units/120kW), Share Bus per Channel
PSB 20360-40 Triple	5kW	0-360V	0-40A	15kW	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply (3-Channel)	EtherCAT, CAN FD, Ethernet, USB, Digital I/O	19" 3U Rackmount	3 Galvanically Isolated Channels, Regenerative Sink up to 95.5%, Autoranging, Function Generator with PV/FC Simulation, Master-Aux Bus (8 units/120kW), Share Bus per Channel
PSB 20500-30 Triple	5kW	0-500V	0-30A	15kW	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply (3-Channel)	EtherCAT, CAN FD, Ethernet, USB, Digital I/O	19" 3U Rackmount	3 Galvanically Isolated Channels, Regenerative Sink up to 95.5%, Autoranging, Function Generator with PV/FC Simulation, Master-Aux Bus (8 units/120kW), Share Bus per Channel
PSB 20920-20 Triple	5kW	0-920V	0-20A	15kW	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply (3-Channel)	EtherCAT, CAN FD, Ethernet, USB, Digital I/O	19" 3U Rackmount	3 Galvanically Isolated Channels, Regenerative Sink up to 95.5%, Autoranging, Function Generator with PV/FC Simulation, Master-Aux Bus (8 units/120kW), Share Bus per Channel

30-Second Fit Check

Need to test multiple components in a single rack unit? Three independent, galvanically isolated channels in a 3U enclosure.
Each channel delivers 0-60V to 0-920V and 0-20A to 0-170A with 5kW autoranging power (15kW total device power).
Seamless two-quadrant source-sink operation per channel; regenerative energy recovery up to 96%.
High-speed control interfaces: EtherCAT, CAN FD, 1 Gbit Ethernet, USB; built-in function generator with PV/FC simulation.
Protection suite per channel: OVP, OCP, OPP, OT; parallel operation for up to 8 units (120kW) via Master-Aux bus and Share bus.

What It Is + Why It Matters

Industry's most compact 3-channel bidirectional DC power supply in 3U format, replacing three single-channel devices and saving over 50% rack space.
Three independent, fully isolated channels enable parallel testing of motors, inverters, and on-board chargers within the same test setup – accelerating development cycles in fast-moving industries.
Each channel is a complete two-quadrant device with autoranging output and regenerative energy recovery up to 96%, significantly reducing both operational and HVAC energy costs.
Integrated function generator with PV (EN 50530) and fuel cell simulation, plus arbitrary waveform generation for complex test sequences.
Built-in EtherCAT (1 ms cycle time), CAN FD, and 1 Gbit Ethernet ensure ultra-fast system integration and data acquisition for demanding automated test environments.

Note: All three channels are galvanically isolated from each other and from the AC input. The 208V AC version (optional) operates without power derating. In sink mode, energy is recovered to the grid; consult local utility regulations.

Key Specs

AC input: 208-480V AC, 3-phase, active PFC, 45-66Hz; 208V version available with no derating.
Per channel: Voltage 0-60V up to 0-920V; Current 0-20A up to 0-170A; Power 5kW autoranging.
Total device power: 15kW (3 channels × 5kW).
Efficiency: up to 96% in both source and sink modes (energy recovery).
Control panel: TFT colour touchscreen with two rotary knobs; individual channel control.
Interfaces: EtherCAT (2x In/Out), 1 Gbit Ethernet, CAN FD (5 Mbit), USB, Digital In/Out (16-pole), USB Host (front).
Master-Aux bus + Share bus (per channel) for up to 8 units parallel (120kW total).
Dimensions (WxHxD): 19" x 3U x 668mm (enclosure); Weight: approx. 32.8 kg.

Integration & Installation

Three independent DC output channels with copper blade terminals on the rear panel; each channel has its own remote sensing and Share bus connectors.
Single three-phase AC input connector (208-480V AC); automatic grid voltage detection; optional 208V US version available without derating.
Master-Aux bus and per-channel Share bus for parallel connection of up to 8 units; DC terminals can be linked with vertical copper rails.
High-speed communication: EtherCAT with 1 ms cycle time; CAN FD at 5 Mbit; 1 Gbit Ethernet; Digital I/O (16-pole) for direct control integration.
Must be installed in a closed 19" rack/cabinet with lockable doors; ensure adequate ventilation and grid compliance for energy recovery.

Best for / Not for

Best for: Multi-component automotive testing (motors, inverters, OBCs simultaneously), battery module/pack simulation, high-density automated test racks, renewable energy inverter validation, and any application requiring three independent, isolated bidirectional DC channels in minimal rack space.
Not for: Applications requiring a single channel with more than 5kW, series connection of channels (not supported), or environments without three-phase AC supply and proper rack cooling.

Selection Checklist + RFQ

Choose voltage/current rating matching your test requirements per channel (60V, 80V, 200V, 360V, 500V, or 920V).
Verify per-channel power demand ≤ 5kW (autoranging); total device power = 15kW across all three channels.
Confirm three-phase AC supply availability (208-480V AC); specify standard or 208V US version.
Select control interface: built-in EtherCAT, CAN FD, Ethernet, USB, plus Digital I/O.
For multi-unit parallel systems, specify total channels and total system power (up to 8 units / 120kW); all channels must share the same voltage rating.
Plan for energy recovery grid compliance and possible grid protection device installation.
