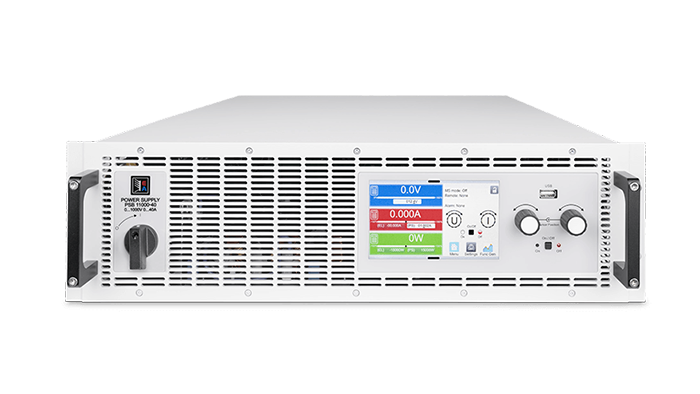

Versatile EA-PSBE 10000 3U series bidirectional programmable DC power supplies with wide 10–2000V voltage, 20–510A current, and 5–15kW power in a 3U 19‑inch rack enclosure. Featuring active PFC, up to 96% efficiency, a 5″ TFT touch panel, built‑in function generator, master‑slave parallel capability for up to 64 units (1920kW), and galvanically isolated analog/USB/Ethernet interfaces with optional CAN, Profibus, ProfiNet, and more, they are expertly suited for battery testing, fuel cell testing, on‑board charger testing, and high‑power automated test systems demanding seamless source‑sink operation and energy efficiency.

Model

PSBE 10010-170, PSBE 10060-170, PSBE 10080-170, PSBE 10200-70, PSBE 10360-40, PSBE 10500-30, PSBE 10750-20, PSBE 10010-340, PSBE 10060-340, PSBE 10080-340, PSBE 10200-140, PSBE 10360-80, PSBE 10500-60, PSBE 10750-40, PSBE 11000-30, PSBE 11500-20, PSBE 10010-510, PSBE 10060-510, PSBE 10080-510, PSBE 10200-210, PSBE 10360-120, PSBE 10500-90, PSBE 10750-60, PSBE 11000-40, PSBE 11500-30, PSBE 12000-20

DC Power (Max)

1700W, 3400W, 5000W, 5100W, 10000W, 15000W

DC Voltage (CV Range)

0-10V, 0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V, 0-1000V, 0-1500V, 0-2000V

DC Current (CC Range)

0-20A, 0-30A, 0-40A, 0-60A, 0-70A, 0-80A, 0-90A, 0-120A, 0-140A, 0-170A, 0-210A, 0-340A, 0-510A

AC Input

208-480V AC, 3ph (active PFC)

Type

Programmable Bidirectional DC Power Supply

External Control

Analog, USB, Ethernet, Optional CAN, Optional CANopen, Optional RS232, Optional Profibus, Optional ProfiNet, Optional ModBus TCP, Optional EtherCAT

Housing

19" 3U Rackmount

Special Features

Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus RTU, LabView VIs, 16-bit ADCs/DACs

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	DC Power (Max)	DC Voltage (CV Range)	DC Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PSBE 10010-170	1700W / 5000W *	0-10V	0-170A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10060-170	5000W	0-60V	0-170A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10080-170	5000W	0-80V	0-170A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10200-70	5000W	0-200V	0-70A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10360-40	5000W	0-360V	0-40A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10500-30	5000W	0-500V	0-30A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10750-20	5000W	0-750V	0-20A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10010-340	3400W / 10000W *	0-10V	0-340A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10060-340	10000W	0-60V	0-340A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10080-340	10000W	0-80V	0-340A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10200-140	10000W	0-200V	0-140A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10360-80	10000W	0-360V	0-80A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10500-60	10000W	0-500V	0-60A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10750-40	10000W	0-750V	0-40A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 11000-30	10000W	0-1000V	0-30A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 11500-20	10000W	0-1500V	0-20A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10010-510	5100W / 15000W *	0-10V	0-510A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10060-510	15000W	0-60V	0-510A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10080-510	15000W	0-80V	0-510A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10200-210	15000W	0-200V	0-210A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10360-120	15000W	0-360V	0-120A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10500-90	15000W	0-500V	0-90A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 10750-60	15000W	0-750V	0-60A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 11000-40	15000W	0-1000V	0-40A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 11500-30	15000W	0-1500V	0-30A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs
PSBE 12000-20	15000W	0-2000V	0-20A	208-480V AC, 3ph	Programmable Bidirectional DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Regenerative Sink, Two-Quadrant Operation, Function Generator, Master-Slave (up to 64 units), Share Bus, SCPI & ModBus, LabView VIs

* Note: The 10V models reach the full output power of 5kW, 10kW, or 15kW only at higher voltages due to the autoranging principle. The specified power values for 10V models represent the maximum achievable power at the rated voltage.

30-Second Fit Check

Need a single unit that can source and sink high power? Models span 0-10V to 0-2000V, with currents up to 510A.
Output power: 5kW, 10kW, or 15kW with fully autoranging output; efficiency up to 96%.
Seamless two-quadrant operation between source and sink modes; regenerative energy recovery in sink mode.
Built-in function generator for dynamic testing; control speed selectable (Normal, Fast, Slow).
Protection suite: OVP, OCP, OPP, OT; Share bus and master-slave for parallel connection of up to 64 units.

What It Is + Why It Matters

Compact 3U 19" rack bidirectional DC power supply integrating both a programmable source and a regenerative electronic load in one device.
The autoranging output stage delivers maximum voltage at lower current or maximum current at lower voltage; sink mode recovers up to 96% of absorbed energy back to the grid.
True master-slave parallel operation for up to 64 units (1920kW total) with Share bus for dynamic current balancing – scalable for high-power battery and fuel cell testing.
Multiple galvanically isolated interfaces: analog (0-5/10V), USB, Ethernet plus optional industrial buses (CAN, CANopen, Profibus, ProfiNet, EtherCAT, ModBus TCP, RS232).
16-bit ADCs and DACs ensure high resolution and accuracy; intuitive 5" TFT touch panel with multi-language support.

Note: In sink mode, the device recovers energy to the grid; consult local utility regulations and consider a grid protection device. Must be installed in a closed 19" rack with lockable doors and adequate ventilation.

Key Specs

AC input: 208-480V AC, 3-phase, active PFC, 45-66Hz; derating at 208V AC input.
DC voltage range: 0-10V up to 0-2000V; DC current: 0-20A up to 0-510A.
DC power: 5kW, 10kW, or 15kW (autoranging with adjustable power limit).
Efficiency: up to 96% in both source and sink modes.
Display: 5" TFT colour touchscreen (800x480) with two rotary knobs; separate set values for source and sink modes.
Interfaces: 15-pin analog (0-5/10V), USB-B, USB-A, Ethernet; optional IF-AB modules for CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT.
Master-slave bus (RS485 via RJ45) + Share bus (BNC) for up to 64 units.
Dimensions (WxHxD): 19" x 3U x 668mm; Weight: 18-32.8 kg (model dependent).

Integration & Installation

DC output via copper busbars on the rear panel; vertical connection rails available for easy parallel setup.
AC mains via 3-phase terminal (208-480V AC); automatic adjustment to supply voltage with derating at 208V.
Master-slave connection via standard CAT5 patch cables; Share bus via BNC coaxial cables (50Ω).
Optional interface modules are user-installable in the rear slot; ESD precautions apply during module exchange.
Must be installed in a closed 19" rack/cabinet with lockable doors; ensure adequate ventilation and grid compliance for energy recovery.

Best for / Not for

Best for: Battery charge/discharge cycling, battery simulation, fuel cell testing, on-board charger (OBC) testing, battery recycling/discharge to safe levels, solar inverter testing, and any application requiring a seamless source-sink transition with energy recovery.
Not for: Applications requiring only a dedicated power supply without sink capability, environments without adequate rack cooling, or locations without proper three-phase AC supply and grid compliance for energy feedback.

Selection Checklist + RFQ

Choose voltage/current model matching your test requirements (10V, 60V, 80V, 200V, 360V, 500V, 750V, 1000V, 1500V, or 2000V).
Verify total power demand ≤ 5kW, 10kW, or 15kW, noting autoranging characteristics and derating at 208V AC input.
Confirm three-phase AC supply availability (208-480V AC) and plan for fixed connection with proper circuit protection.
Select required interfaces: built-in analog/USB/Ethernet plus any optional industrial bus modules (e.g., CAN, ProfiNet).
For master-slave operation, specify total system power and number of units; ensure all units have same voltage rating.
Plan for energy recovery grid compliance and possible grid protection device installation.
