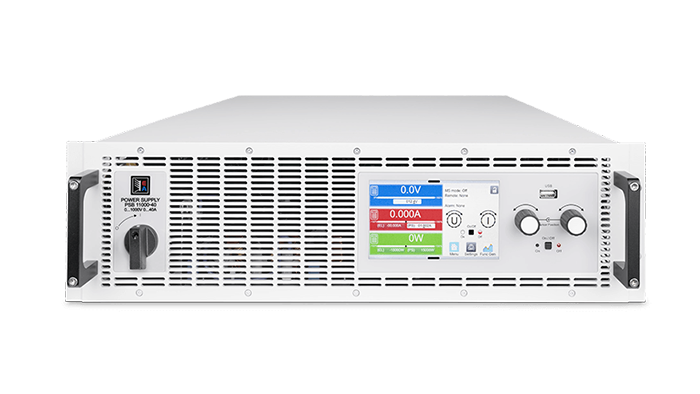

High-power EA-PSI 10000 3U series programmable DC power supplies with wide 60–2000V output, 20–510A current, and 5–15kW auto‑ranging power in a 19‑inch 3U rack enclosure. Featuring active PFC, up to 95.5% efficiency, a 5″ TFT touch panel, built‑in function generator with solar panel and fuel cell simulation (EN 50530), remote sensing, Share bus for parallel connection, and built‑in analog/USB/Ethernet interfaces with optional CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, and EtherCAT, they are perfectly suited for automated test systems, industrial electronics, renewable energy simulation, and high‑power laboratory experiments demanding minimal rack space.

Model

PSI 10060-170, PSI 10080-170, PSI 10200-70, PSI 10360-40, PSI 10500-30, PSI 10750-20, PSI 10060-340, PSI 10080-340, PSI 10200-140, PSI 10360-80, PSI 10500-60, PSI 10750-40, PSI 11000-30, PSI 11500-20, PSI 10060-510, PSI 10080-510, PSI 10200-210, PSI 10360-120, PSI 10500-90, PSI 10750-60, PSI 11000-40, PSI 11500-30, PSI 12000-20

Output Power (Max/Derated)

5000W / 3000W, 10000W / 6000W, 15000W / 9000W

Output Voltage (CV Range)

0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V, 0-1000V, 0-1500V, 0-2000V

Output Current (CC Range)

0-20A, 0-30A, 0-40A, 0-60A, 0-70A, 0-80A, 0-90A, 0-120A, 0-140A, 0-170A, 0-210A, 0-340A, 0-510A

AC Input

208-480V AC, 3ph (active PFC)

Type

Programmable DC Power Supply

External Control

Analog, USB, Ethernet, Optional CAN, Optional CANopen, Optional RS232, Optional Profibus, Optional ProfiNet, Optional ModBus TCP, Optional EtherCAT

Housing

19" 3U Rackmount

Special Features

Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV Simulation, Fuel Cell Simulation, EN 50530 PV, SCPI, ModBus RTU, LabView VIs, SEMI F47

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	Output Power (Max/Derated)	Output Voltage (CV Range)	Output Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PSI 10060-170	5000W / 3000W	0-60V	0-170A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10080-170	5000W / 3000W	0-80V	0-170A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10200-70	5000W / 3000W	0-200V	0-70A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10360-40	5000W / 3000W	0-360V	0-40A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10500-30	5000W / 3000W	0-500V	0-30A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10750-20	5000W / 3000W	0-750V	0-20A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10060-340	10000W / 6000W	0-60V	0-340A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10080-340	10000W / 6000W	0-80V	0-340A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10200-140	10000W / 6000W	0-200V	0-140A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10360-80	10000W / 6000W	0-360V	0-80A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10500-60	10000W / 6000W	0-500V	0-60A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10750-40	10000W / 6000W	0-750V	0-40A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 11000-30	10000W / 6000W	0-1000V	0-30A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 11500-20	10000W / 6000W	0-1500V	0-20A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10060-510	15000W / 9000W	0-60V	0-510A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10080-510	15000W / 9000W	0-80V	0-510A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10200-210	15000W / 9000W	0-200V	0-210A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10360-120	15000W / 9000W	0-360V	0-120A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10500-90	15000W / 9000W	0-500V	0-90A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 10750-60	15000W / 9000W	0-750V	0-60A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 11000-40	15000W / 9000W	0-1000V	0-40A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 11500-30	15000W / 9000W	0-1500V	0-30A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47
PSI 12000-20	15000W / 9000W	0-2000V	0-20A	208-480V AC, 3ph	Programmable DC Power Supply	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 3U Rackmount	Auto-ranging output, Remote sensing, Share bus, Master-Slave (up to 64 units), Function Generator, PV/FC Simulation, EN 50530, SCPI & ModBus RTU, LabView VIs, SEMI F47

30-Second Fit Check

Need high power in a 3U rack format? Models cover 0-60V to 0-2000V, with currents up to 510A.
Output power: 5kW, 10kW, or 15kW with fully autoranging output; efficiency up to 95.5%.
Only 3U (133 mm) height fits any standard 19" rack; temperature-controlled fans for silent operation.
Built-in analog, USB, and Ethernet interfaces (galvanically isolated); SCPI & ModBus RTU support.
Protection suite: OVP, OCP, OPP, OT, PF, MSP, SF; Share bus and master-slave for parallel connection of up to 64 units.

What It Is + Why It Matters

Compact 19" 3U programmable DC power supplies designed for high-power automated test systems and industrial applications.
The autoranging output stage delivers maximum voltage at lower current or maximum current at lower voltage – one unit covers a wide load range.
True master-slave parallel operation with summed actual values and shared setpoints across units, plus a Share bus for dynamic voltage balancing – scalable to 960kW.
Integrated function generator with solar panel (PV) and fuel cell (FC) simulation, plus extended EN 50530 testing for advanced renewable energy applications.
Galvanically isolated analog and digital interfaces ensure noise-immune remote control; optional plug-in modules for CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT.

Note: 5kW/10kW/15kW models accept 208-480V AC three-phase; derating to 3/6/9 kW at 208V AC input. Must be installed in a closed 19" rack with lockable doors and adequate ventilation.

Key Specs

AC input: 208-480V AC, 3ph, active PFC, 45-65Hz; derating at 208V AC input (3/6/9 kW).
Output voltage: 0-60V up to 0-2000V; Output current: 0-20A up to 0-510A.
Output power: 0-5kW, 0-10kW, or 0-15kW (adjustable power limit); autoranging.
Efficiency: up to 95.5%; Regulation accuracy: CV ≤0.05%, CC ≤0.1%.
Control panel: 5" TFT colour touchscreen (800x480), 2 rotary knobs with push function, panel lock.
Interfaces: 15-pin analog (0-5/10V), USB-B, USB-A, Ethernet, plus optional industrial bus modules.
Master-slave bus (RS485 via RJ45) + Share bus (BNC) for up to 64 units parallel operation.
Dimensions (WxHxD): 19" x 3U x approx. 668mm; Weight: 18-32.8 kg (model dependent).

Integration & Installation

DC output, remote sensing, and share bus terminals on the rear panel; 19" rack mount ears integrated.
Mains input via 5-pole or 4-wire connector (3x L, N, PE); three-phase 208-480V AC with automatic adjustment and derating at 208V.
Master-slave connection via standard CAT5 patch cables; Share bus via BNC coaxial cables (50Ω); supports mixed power classes within the same series.
Optional interface modules are user-installable in the rear slot; ESD precautions apply during module exchange.
Must be installed in a closed 19" rack/cabinet with lockable doors; ensure adequate ventilation (min. 30cm rear clearance) and proper three-phase AC supply.

Best for / Not for

Best for: High-power automated test systems (ATE), industrial DC bus simulation, solar inverter testing with PV simulation (EN 50530), fuel cell simulation, battery charging (with proper supervision), high-density laboratory racks, and applications requiring scalable parallel power and advanced renewable energy simulation.
Not for: AC output, floating outputs that require grounding the positive beyond specified limits, environments lacking adequate cooling space, or direct series connection of high-voltage models.

Selection Checklist + RFQ

Choose voltage/current model matching your load (60V, 80V, 200V, 360V, 500V, 750V, 1000V, 1500V, 2000V options).
Confirm total power requirement ≤ 5kW, 10kW, or 15kW; note autoranging reduces current at high voltage and derating applies at 208V AC input.
Verify available AC mains (three-phase 208-480V) and required AC cord/terminal wiring.
Select required interfaces: built-in analog/USB/Ethernet plus any optional industrial bus modules (CAN, Profibus, etc.).
For master-slave operation, specify total system power and number of units; ensure all units have same voltage rating.
Plan for installation in a closed 19" rack with adequate cooling and lockable doors.
