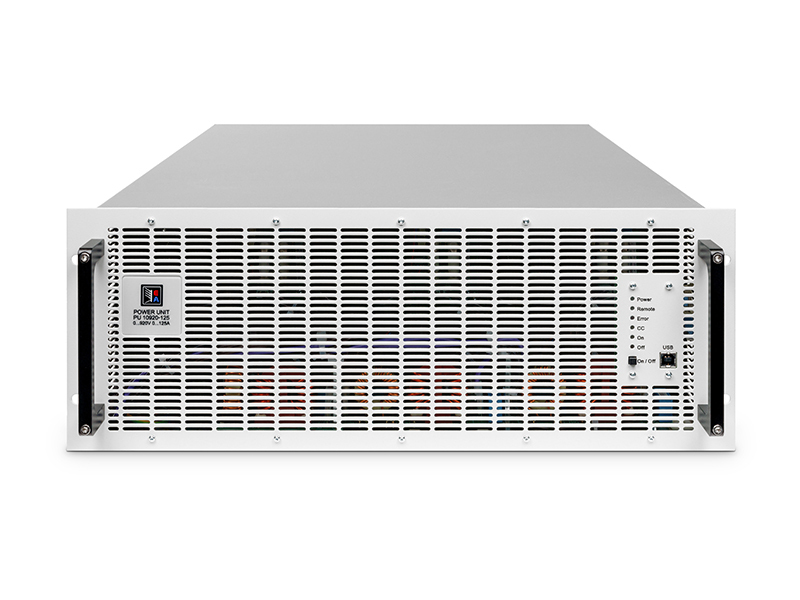

Cost-optimized EA-PU 10000 4U series programmable DC power units with wide 60–2000V output, 40–1000A current, and 30kW autoranging power in a 4U 19‑inch rack enclosure. Featuring active PFC, up to 96.5% efficiency, an LED status panel, and built‑in analog/USB/Ethernet interfaces with optional CAN, Profibus, ProfiNet, and more, they are expertly designed as power units for master‑slave systems, enabling scalable, high‑density DC source solutions for industrial automation, test systems, and laboratory applications.

Model

PU 10060-1000, PU 10080-1000, PU 10200-420, PU 10360-240, PU 10500-180, PU 10750-120, PU 10920-125, PU 11000-80, PU 11500-60, PU 12000-40

DC Power (Max/Derated)

30000W / 18000W

DC Voltage (CV Range)

0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V, 0-920V, 0-1000V, 0-1500V, 0-2000V

DC Current (CC Range)

0-40A, 0-60A, 0-80A, 0-120A, 0-125A, 0-180A, 0-240A, 0-420A, 0-1000A

AC Input

208-480V AC, 3ph (active PFC)

Type

Programmable DC Power Unit

External Control

Analog, USB, Ethernet, Optional CAN, Optional CANopen, Optional RS232, Optional Profibus, Optional ProfiNet, Optional ModBus TCP, Optional EtherCAT

Housing

19" 4U Rackmount

Special Features

Efficiency up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units), Share-Bus, Remote Sense, Optional Function Generator, SCPI, ModBus RTU, Optional Water Cooling

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	DC Power (Max/Derated)	DC Voltage (CV Range)	DC Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PU 10060-1000	30000W / 18000W	0-60V	0-1000A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 95.1%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 10080-1000	30000W / 18000W	0-80V	0-1000A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 95.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 10200-420	30000W / 18000W	0-200V	0-420A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 95.3%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 10360-240	30000W / 18000W	0-360V	0-240A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 95.8%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 10500-180	30000W / 18000W	0-500V	0-180A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 10750-120	30000W / 18000W	0-750V	0-120A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 10920-125	30000W / 18000W	0-920V	0-125A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 11000-80	30000W / 18000W	0-1000V	0-80A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 95.8%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 11500-60	30000W / 18000W	0-1500V	0-60A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PU 12000-40	30000W / 18000W	0-2000V	0-40A	208-480V AC, 3ph	Programmable DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Efficiency up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling

30-Second Fit Check

Need a scalable, high-power DC source without the cost of an integrated display? Models cover 60V to 2000V, with currents up to 1000A.
DC power: 30kW per unit (derated to 18kW at 208V AC) with fully autoranging output; efficiency up to 96.5%.
Designed as a power unit for master-slave systems; a single master can control multiple PU units, reducing total system cost.
Status indication via LEDs; no TFT display – configuration and setpoints are managed by the master or via remote control.
Comprehensive protection: OVP, OCP, OPP, OT, MSP, SF; master-slave bus and Share bus for parallel connection of up to 64 units.

What It Is + Why It Matters

Cost-optimized programmable DC power unit in 4U 19" rack format, specifically designed as an auxiliary (slave) unit to extend the power of a master device (e.g., from the PSI 10000 or PSB 10000 series).
The autoranging output stage allows maximum current at lower voltages or maximum voltage at lower currents, covering a wide range of test scenarios with a single model.
Multiple units can be combined via the built-in master-slave bus and Share bus to form a single, high-power source system of up to 1920kW, with the master handling all setpoints and measurements.
Equipped with analog (0-5/10V), USB, and Ethernet interfaces plus an optional plug-in slot for industrial protocols (CAN, Profibus, EtherCAT, etc.), ensuring seamless integration into automated environments.
An optional function generator (sine, square, ramp, arbitrary, PV/FC simulation) and optional water cooling further expand the capabilities for dynamic testing and high-density installations.

Note: The PU 10000 series is a unidirectional power source only; it cannot sink current. Ensure a compatible master unit with TFT display is available if full local control and monitoring is required.

Key Specs

AC input: 208-480V AC, 3-phase, active PFC, 45-65Hz; automatic derating to 18kW at 208V AC.
DC output voltage: 0-60V up to 0-2000V; DC output current: 0-40A up to 0-1000A.
DC output power: 30kW autoranging; output efficiency up to 96.5% (model dependent).
Control panel: LED status indicators (Power, Remote, Error, On, Off) and DC on/off pushbutton; no TFT display.
Interfaces: 15-pin analog (0-5/10V), USB-B (rear), USB-A (front), Ethernet; optional slot for IF-AB digital modules (CAN, Profibus, etc.).
Master-slave bus (RS485 via RJ45) + Share bus (BNC) for up to 64 units (1920kW total).
Dimensions (WxHxD): 19" x 4U x 668mm; Weight: approx. 50 kg (air-cooled), 56 kg (water-cooled).

Integration & Installation

DC output via copper busbars (M10 or M6 bolts) on the rear panel; plastic covers and strain relief accessories included.
Three-phase AC mains via 5-pole connector (L1, L2, L3, N, PE); fixed connection required with external circuit breaker/contactor.
Master-slave bus connection via standard CAT5 patch cables; Share bus via BNC coaxial cables (50Ω).
Optional water cooling available for reduced ambient noise and better heat management in high-density cabinets.
Must be installed in a closed 19" rack/cabinet with lockable doors; ensure adequate ventilation or water supply for cooling.

Best for / Not for

Best for: Building large-scale, cost-efficient master-slave DC source systems (e.g., industrial DC bus supply, battery charging, electrolysis, motor testing) where the master provides the interface and the PU units supply raw source power.
Not for: Applications requiring a standalone unit with an integrated TFT display and full local controls; sink/load operation (this is a unidirectional source only); or operation without a compatible master unit for full functionality.

Selection Checklist + RFQ

Choose voltage/current model matching your load requirements (60V, 80V, 200V, 360V, 500V, 750V, 920V, 1000V, 1500V, or 2000V).
Confirm total source power requirement ≤ 30kW per unit; note derating to 18kW at 208V AC input.
Verify three-phase AC supply (208-480V) and plan for external switching and circuit protection.
Select cooling option: standard forced air or optional water cooling (for reduced noise and heat emission).
For multi-unit systems, order the appropriate number of PU units plus one compatible master unit (e.g., PSI 10000 4U or PSB 10000 4U series) to complete the system.
If optional function generator or digital interfaces (Profibus, EtherCAT, etc.) are needed, specify the corresponding options/modules.
