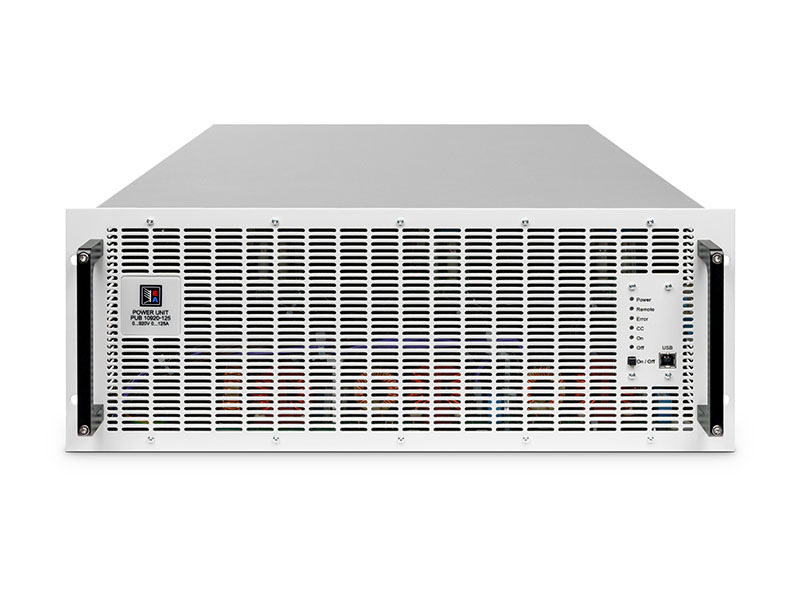

Cost-optimized EA-PUB 10000 4U series bidirectional programmable DC power units with wide 60–2000V output, 40–1000A current, and 30kW autoranging power in a 4U 19‑inch rack enclosure. Featuring regenerative energy recovery up to 96%, active PFC, an LED status panel, and built‑in analog/USB/Ethernet interfaces with optional CAN, Profibus, ProfiNet, and more, they are expertly designed as power units for master‑slave systems, enabling scalable, high‑density bidirectional DC solutions for battery testing, fuel cell simulation, and industrial automation.

Model

PUB 10060-1000, PUB 10080-1000, PUB 10200-420, PUB 10360-240, PUB 10500-180, PUB 10750-120, PUB 10920-125, PUB 11000-80, PUB 11500-60, PUB 12000-40

DC Power (Max/Derated)

30000W / 18000W

DC Voltage (CV Range)

0-60V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V, 0-920V, 0-1000V, 0-1500V, 0-2000V

DC Current (CC Range)

0-40A, 0-60A, 0-80A, 0-120A, 0-125A, 0-180A, 0-240A, 0-420A, 0-1000A

AC Input

208-480V AC, 3ph (active PFC)

Type

Programmable Bidirectional DC Power Unit

External Control

Analog, USB, Ethernet, Optional CAN, Optional CANopen, Optional RS232, Optional Profibus, Optional ProfiNet, Optional ModBus TCP, Optional EtherCAT

Housing

19" 4U Rackmount

Special Features

Regenerative Energy Recovery up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units), Share-Bus, Remote Sense, Optional Function Generator, SCPI, ModBus RTU, Optional Water Cooling

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – All Values

Model	DC Power (Max/Derated)	DC Voltage (CV Range)	DC Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PUB 10060-1000	30000W / 18000W	0-60V	0-1000A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 95.1%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 10080-1000	30000W / 18000W	0-80V	0-1000A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 95.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 10200-420	30000W / 18000W	0-200V	0-420A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 95.3%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 10360-240	30000W / 18000W	0-360V	0-240A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 95.8%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 10500-180	30000W / 18000W	0-500V	0-180A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 10750-120	30000W / 18000W	0-750V	0-120A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 10920-125	30000W / 18000W	0-920V	0-125A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 11000-80	30000W / 18000W	0-1000V	0-80A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 95.8%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 11500-60	30000W / 18000W	0-1500V	0-60A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling
PUB 12000-40	30000W / 18000W	0-2000V	0-40A	208-480V AC, 3ph	Programmable Bidirectional DC Power Unit	Analog, USB, Ethernet (Optional: CAN, CANopen, RS232, Profibus, ProfiNet, ModBus TCP, EtherCAT)	19" 4U Rackmount	Regenerative Energy Recovery up to 96.5%, Autoranging, LED Status Panel (no TFT), Master-Slave Bus (up to 64 units/1920kW), Share-Bus, Remote Sense, SCPI & ModBus RTU, Optional Function Generator, Optional Water Cooling

30-Second Fit Check

Need a scalable, high-power bidirectional source/sink without the cost of an integrated display? Models cover 60V to 2000V, with currents up to 1000A.
DC power: 30kW per unit (derated to 18kW at 208V AC) with fully autoranging and regenerative energy recovery up to 96.5%.
Designed as a power unit for master-slave systems; a single master (with display) can control multiple PUB units, reducing total system cost.
Status indication via LEDs; no TFT display – configuration and setpoints are managed by the master or via remote control.
Comprehensive protection: OVP, OCP, OPP, OT, MSP, SF; master-slave bus and Share bus for parallel connection of up to 64 units.

What It Is + Why It Matters

Cost-optimized bidirectional DC power unit in 4U 19" rack format, specifically designed as an auxiliary (slave) unit to extend the power of a master device (e.g., from the PSB 10000 or PSBE 10000 series).
The autoranging output stage allows maximum current at lower voltages or maximum voltage at lower currents, covering a wide range of test scenarios with a single model.
Energy consumed in sink mode is regenerated to the grid with up to 96.5% efficiency, significantly reducing cooling costs and electrical consumption compared to passive loads.
Multiple units can be combined via the built-in master-slave bus and Share bus to form a single, high-power system of up to 1920kW, with the master handling all setpoints and measurements.
For standalone or backup use, the device can be configured via the front USB port and a simple SCPI/ModBus command set; an optional function generator is available for dynamic testing.

Note: The PUB 10000 series does not include a TFT display; instead, it uses an LED status panel. In sink mode, ensure compliance with local grid regulations for energy feedback.

Key Specs

AC input: 208-480V AC, 3-phase, active PFC, 45-65Hz; automatic derating to 18kW at 208V AC.
DC voltage range: 0-60V up to 0-2000V; DC current: 0-40A up to 0-1000A.
DC power: 30kW autoranging; energy recovery efficiency up to 96.5%.
Control panel: LED status indicators (Power, Remote, Error, CC, On, Off) and DC on/off pushbutton; no TFT display.
Interfaces: 15-pin analog (0-5/10V), USB-B (rear), USB-A (front), Ethernet; optional slot for IF-AB digital modules (CAN, Profibus, etc.).
Master-slave bus (RS485 via RJ45) + Share bus (BNC) for up to 64 units (1920kW total).
Dimensions (WxHxD): 19" x 4U x 668mm; Weight: approx. 50 kg (air-cooled), 56 kg (water-cooled).

Integration & Installation

DC output via copper busbars (M10 or M6 bolts) on the rear panel; plastic covers and strain relief accessories included.
Three-phase AC mains via 5-pole connector (L1, L2, L3, N, PE); fixed connection required with external circuit breaker/contactor.
Master-slave bus connection via standard CAT5 patch cables; Share bus via BNC coaxial cables (50Ω).
Optional water cooling available for reduced ambient noise and better heat management in high-density cabinets.
Must be installed in a closed 19" rack/cabinet with lockable doors; ensure adequate ventilation or water supply for cooling, and consult grid regulations for energy recovery.

Best for / Not for

Best for: Building large-scale, cost-efficient master-slave systems (e.g., battery pack cycling, power supply burn-in, fuel cell testing, solar array simulation) where the master provides the interface and the PUB units supply raw bidirectional power.
Not for: Applications requiring a standalone unit with an integrated TFT display and full local controls; series connection of DC terminals (not supported); or operation without a compatible master unit for full functionality.

Selection Checklist + RFQ

Choose voltage/current model matching your test requirements (60V, 80V, 200V, 360V, 500V, 750V, 920V, 1000V, 1500V, or 2000V).
Confirm total sinking/sourcing power requirement ≤ 30kW per unit; note derating to 18kW at 208V AC input.
Verify three-phase AC supply (208-480V) and plan for external switching and grid compliance for energy recovery.
Select cooling option: standard forced air or optional water cooling (for reduced noise and heat emission).
For multi-unit systems, order the appropriate number of PUB units plus one compatible master unit (e.g., PSB 10000 4U or PSBE 10000 4U series) to complete the system.
If optional function generator or digital interfaces (Profibus, EtherCAT, etc.) are needed, specify the corresponding options/modules.
