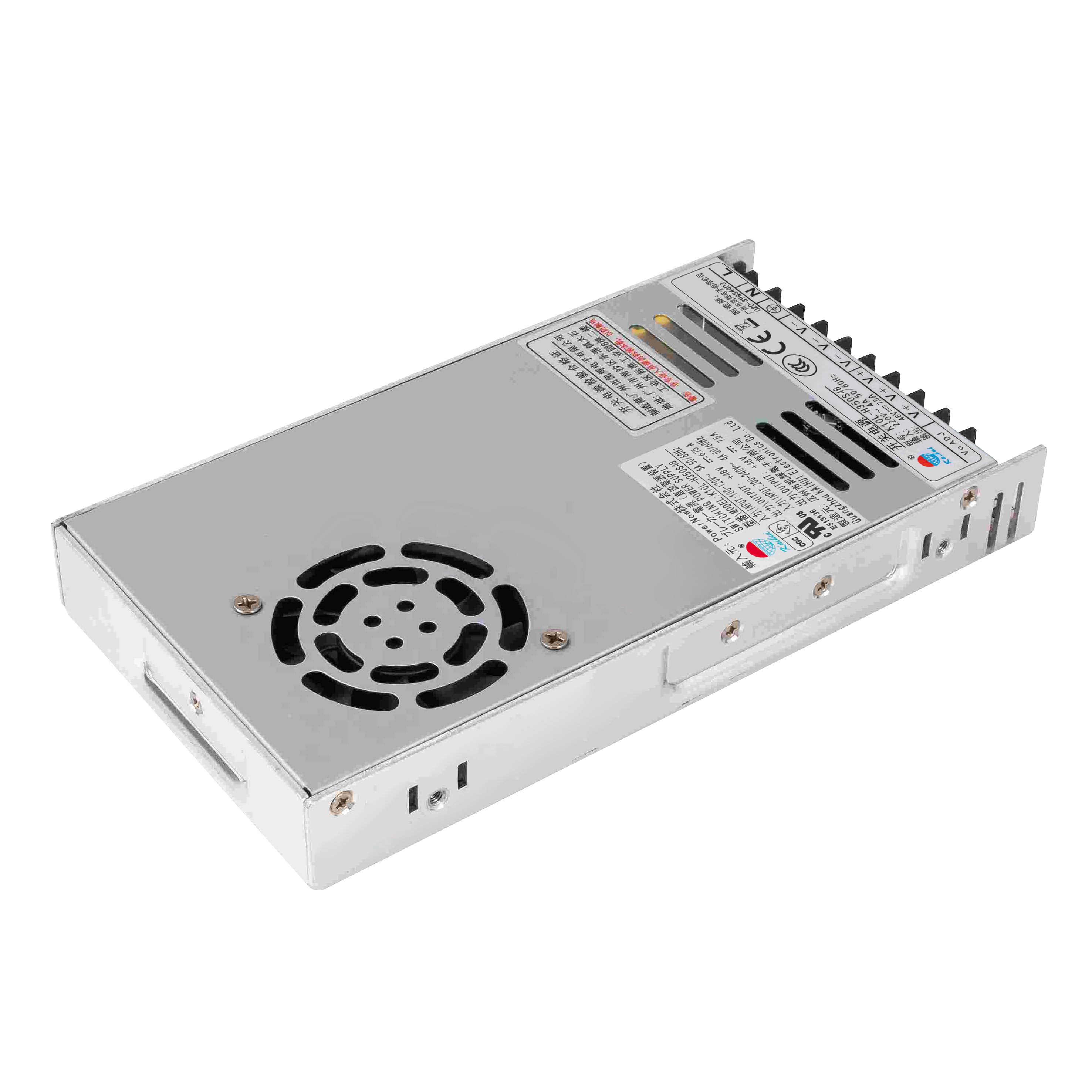

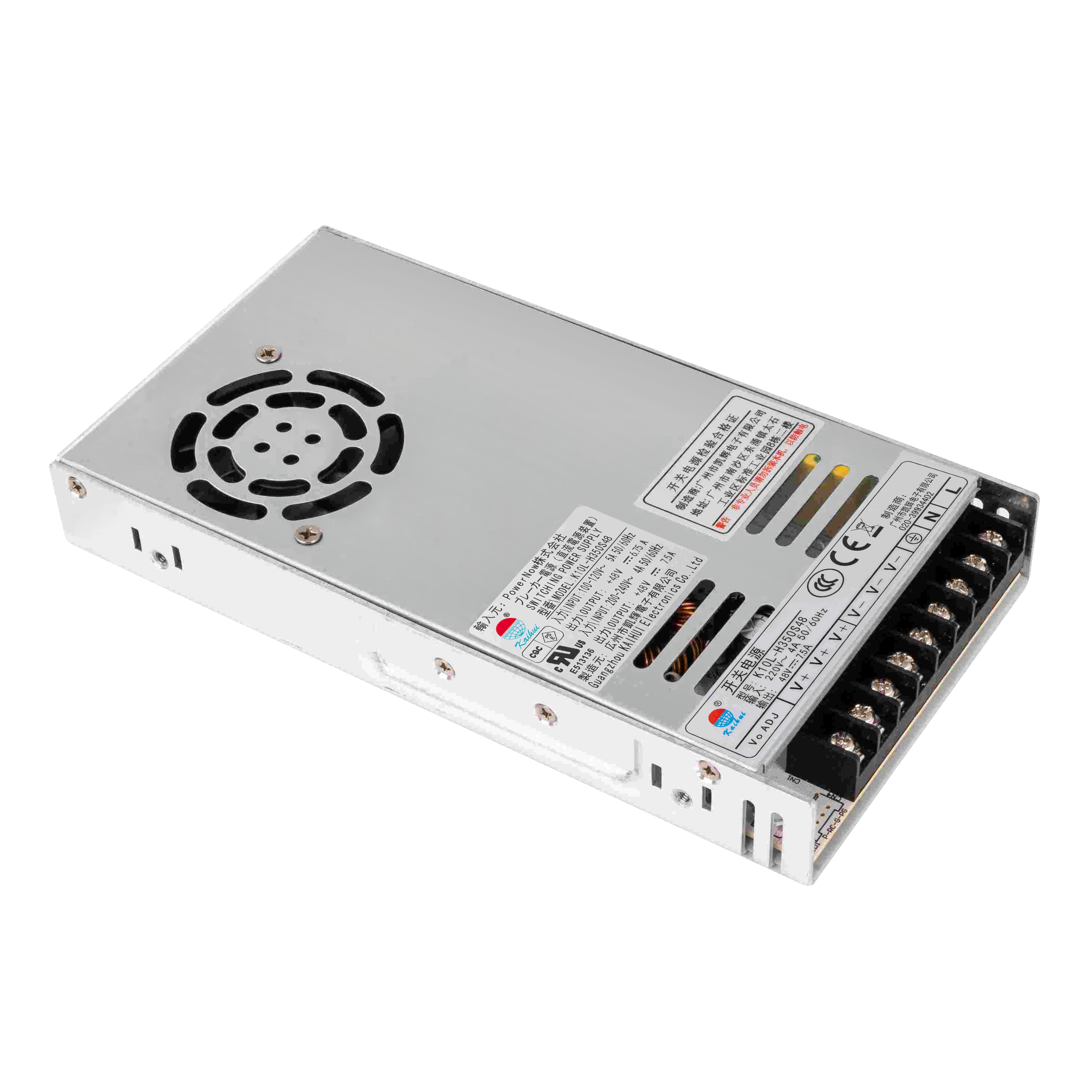

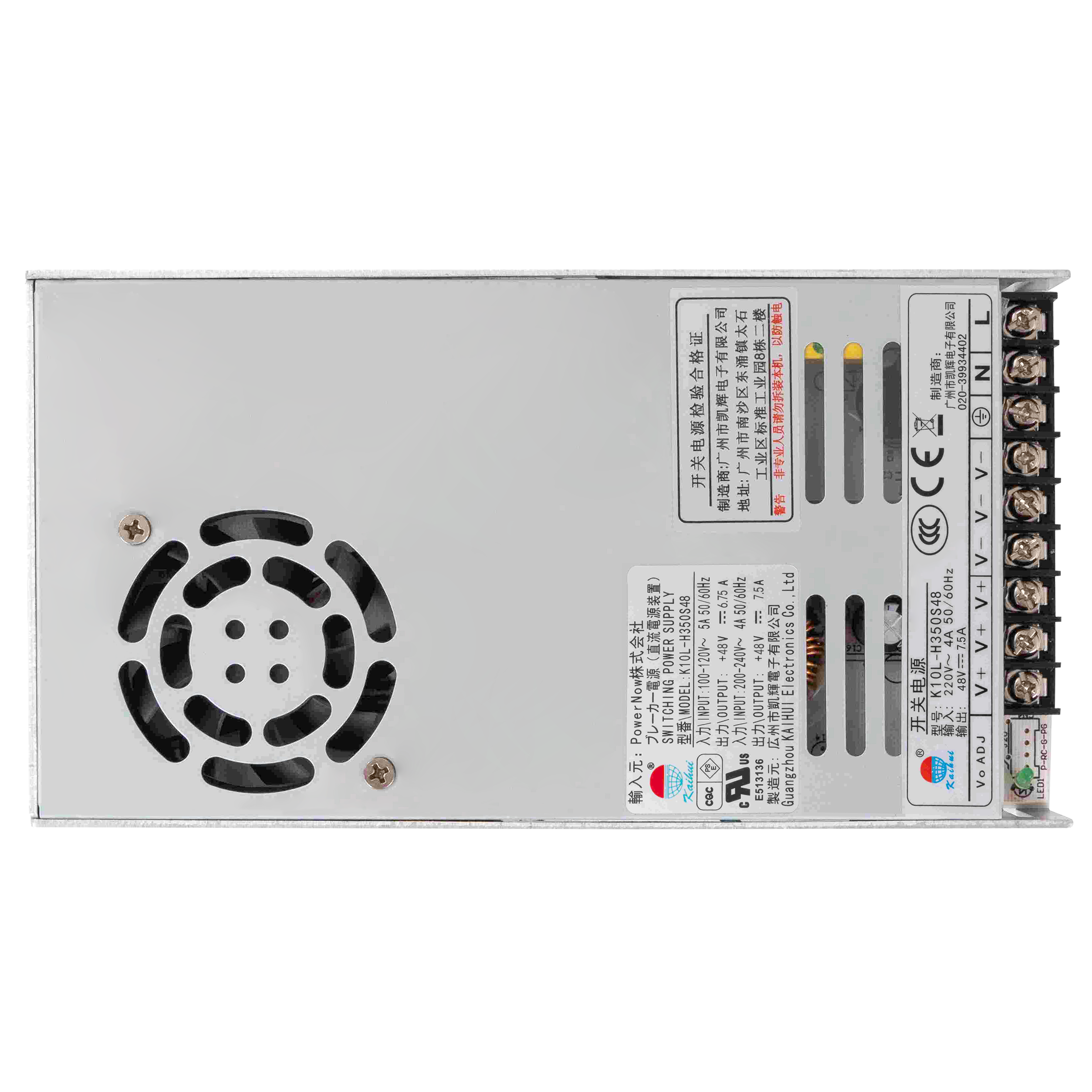

Name: K10L-H350S48
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

High-efficiency K10L-H350S Series switching power supply with 48VDC output, up to 7.5A rated current, 360W power, and a slim 215 × 115 × 30mm enclosure. Featuring 90–264VAC universal input, up to 89% efficiency, ±10% output adjustment, and overload, short-circuit, over-voltage, and over-temperature protection, it is ideal for industrial automation equipment, control systems, and reliable embedded power applications.

Input Current

4A/220V AC

Output Voltage

48V DC

Rated Input Voltage

100V~240V AC

Rated Current

7.5A

Rated Power

360W

Output Adjustable Range

±10%

Output Accuracy

±1%

Efficiency @230Vac

89%

Size/Weight

215*115*30mm(L*W*H)/0.65Kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output class: 48VDC, rated 7.5A (360W).
Input: 90–264VAC, 50–60Hz; PF listed >0.98 (115V) / >0.95 (230V).
Trim: ±10% adjustable output range.
Footprint: 215×115×30mm open-frame; confirm mounting and airflow.
Protection style: hiccup overload/short; over-voltage threshold listed per model.

What It Is + Why It Matters

48V DC rails are common in industrial electronics and power distribution inside equipment.
Higher listed efficiency (89% @230VAC) can reduce heat load in tight enclosures.
PFC helps keep upstream current draw “cleaner” when deploying multiple supplies.

Key Specs

Rated output: 48VDC, 7.5A; 360W.
Ripple & noise: 480mVp-p.
Efficiency @230VAC: 89%.
Regulation: line ±0.5%, load ±0.5%; accuracy ±1%.
Inrush/leakage: 30A @230VAC; leakage <1mA @240V.
Operating env: -20~60°C, 10~90%RH non-condensing.

Integration & Wiring

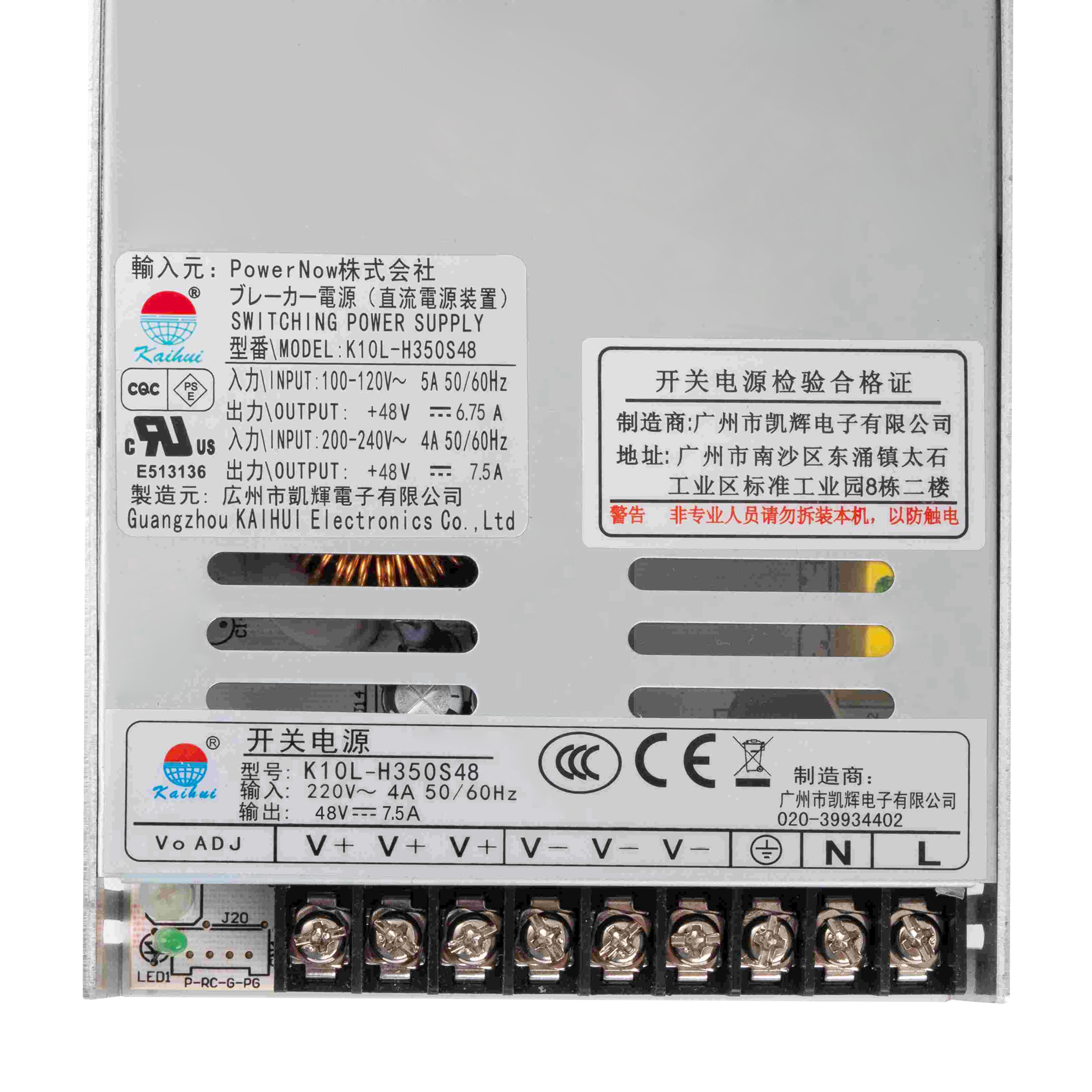

AC input: L / N / protective earth terminal arrangement provided.
DC outputs: multiple terminals for + and – distribution; plan conductor sizing for 7.5A rail and load layout.
Setup/rise/hold: 2s / 50ms / 20ms.

Best For / Not For

Best for: 48V rails for industrial electronics, control systems, and equipment-level DC distribution.
Not for: noise-sensitive designs that cannot tolerate 480mVp-p ripple, or sealed applications without thermal design.

Typical Applications

Industrial control systems
Equipment-level 48V DC distribution
Industrial electronics assemblies and test fixtures
General 48V DC power inside cabinets

Selection Checklist

Confirm load stays within 48V / 7.5A with peak headroom.
Verify universal input requirement: 90–264VAC.
Confirm ripple tolerance: 480mVp-p.
Use ±10% trim only within your end-product safety margin.
Thermal: confirm airflow and spacing for open-frame installation.

RFQ Quick Checklist: quantity, delivery target, AC mains, downstream 48V loads, enclosure size/airflow constraints.
Note: final compliance and performance depend on end-product design and verification testing.
