Key specifications
- Rated output capacity: 10kW (AC→DC)
- AC input: 480VAC nominal, 384–528VAC range, 50/60Hz ±5Hz
- DC output: 15.5VDC, 645A
- DC→AC rated input capacity: 8000W; DC input: 15.5VDC, 516A

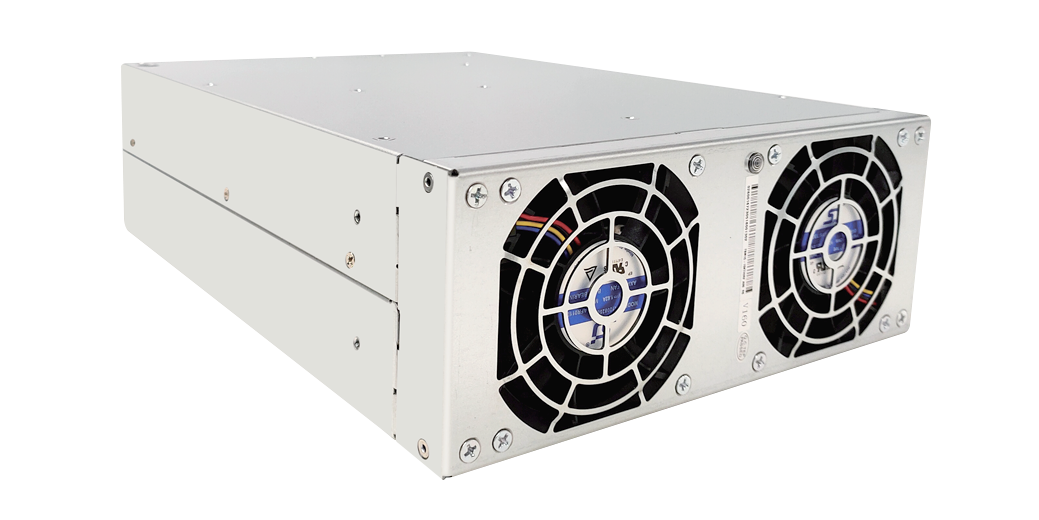

Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15.5VDC output, 645A rated current, 10kW power, 480VAC 3Ph+PE input, and a space-saving 218 × 86 × 300mm design. Featuring high-frequency isolation, up to 92% bidirectional efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and testing, bidirectional power testing, and energy-recyclable power aging applications.
Use the module within the specified input ranges and system design constraints. Final approvals/certifications depend on the complete end system configuration.
