Key specifications
- Rated output capacity: 13.5kW (AC→DC)
- AC input: 480VAC nominal; 384–528VAC range; 50/60Hz ±5Hz
- DC output: 15VDC, 900A
- DC→AC rated input capacity: 10.8kW; DC input: 15VDC, 720A

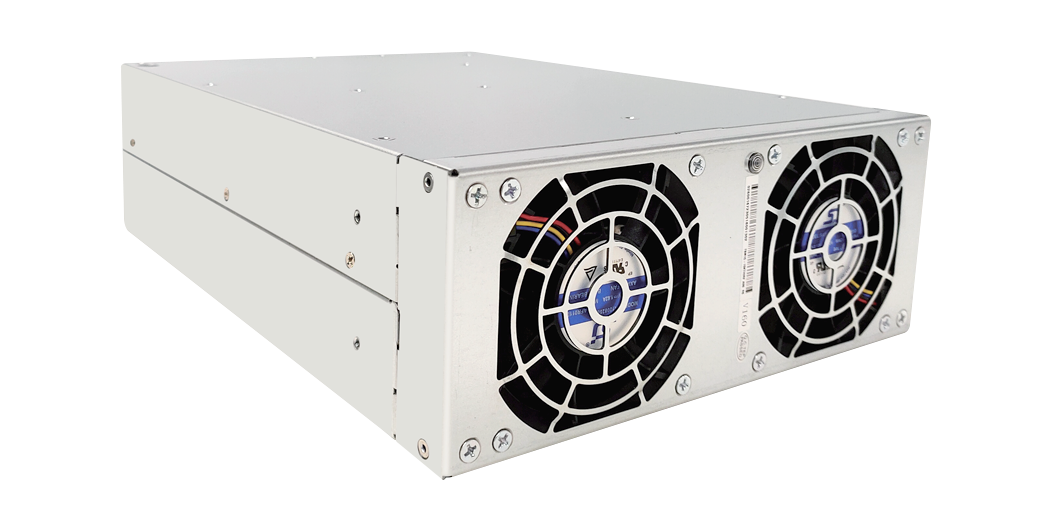

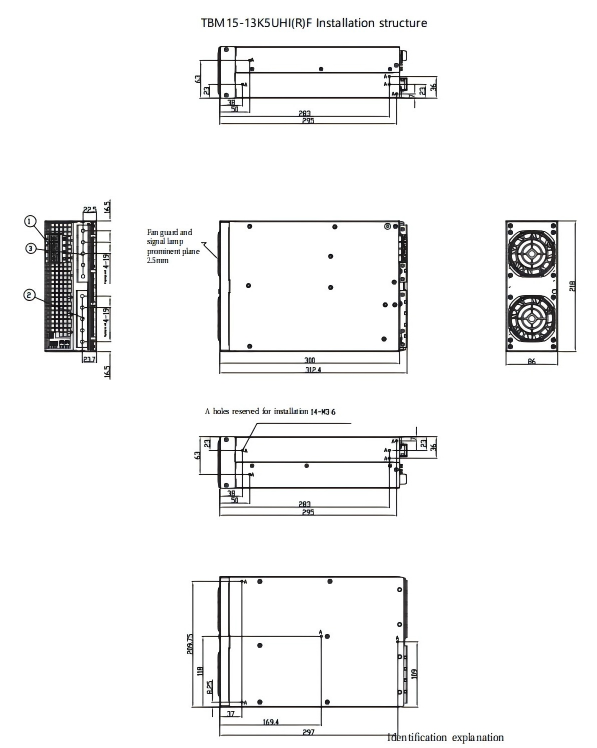

Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15VDC output, 900A rated current, 13.5kW power, 480VAC 3Ph+PE input, and a space-saving 218 × 86 × 300mm design. Featuring high-frequency isolation, up to 93.5% AC-to-DC efficiency and 92% DC-to-AC efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and test equipment as well as energy-recyclable power aging applications.
Confirm the parallel system topology and CAN control strategy during equipment design.
