Key specifications
- Rated output capacity: 13kW (AC→DC)
- AC input: 480VAC nominal; 384–528VAC range; 50/60Hz ±5Hz
- DC output: 15VDC, 866.7A
- DC→AC rated input capacity: 10.4kW; DC input: 15VDC, 693.3A

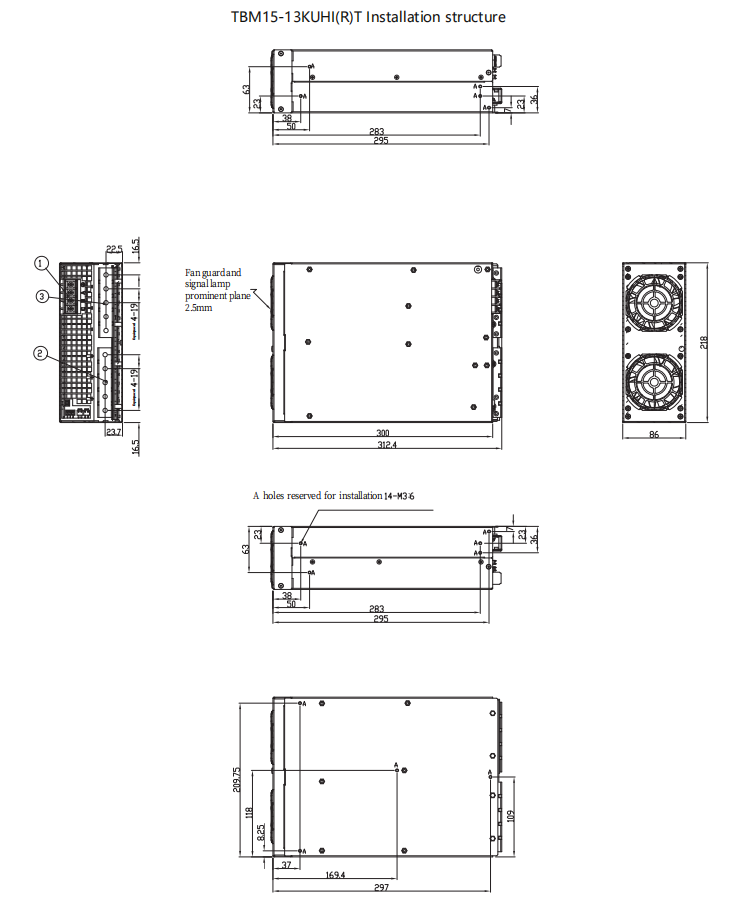

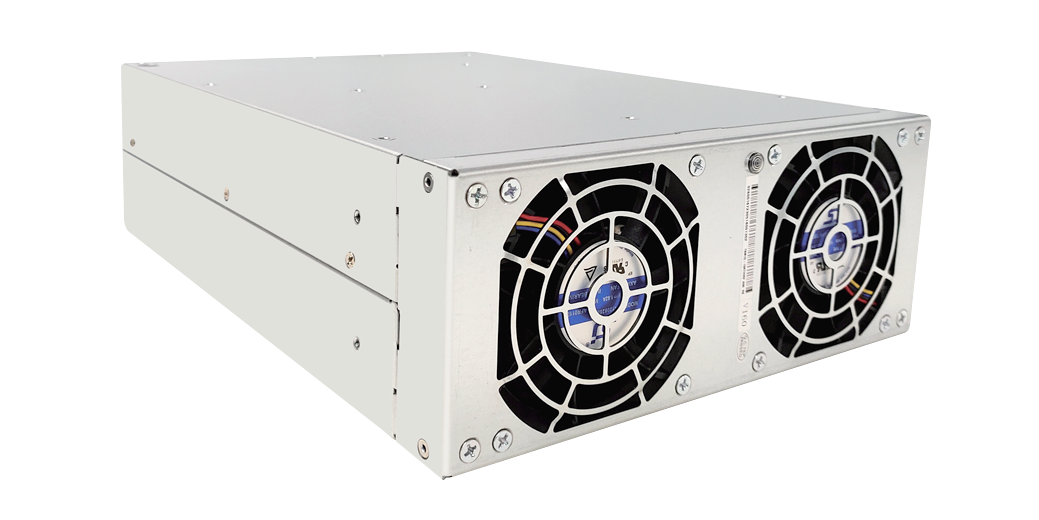

Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15VDC output, 866.7A rated current, 13kW power, 480VAC 3Ph+PE input, and a space-saving 218 × 86 × 300mm design. Featuring high-frequency isolation, up to 93.5% AC-to-DC efficiency and 92% DC-to-AC efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and test equipment, bidirectional power test equipment, and energy-recyclable power aging applications.
Verify the complete equipment thermal design and airflow direction during system integration.
