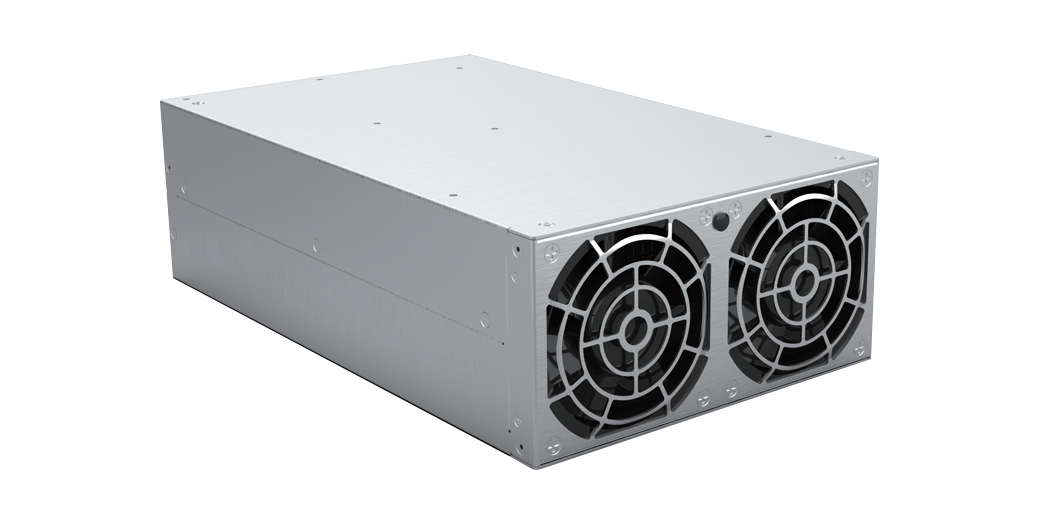

Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15VDC output, 480A rated current, 7.2kW power, 480VAC 3Ph+PE input, and compact 176 × 86 × 285mm dimensions. Featuring high-frequency isolation, up to 91.5% AC-to-DC efficiency and 90.5% DC-to-AC efficiency, PF above 0.99, THDi below 5%, seamless bidirectional switching, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and testing, bidirectional power testing, and energy-recyclable power aging applications.

Wiring Mode

3Ph+PE

AC Input Rated Voltage

480VAC

DC Output Rated Voltage

15VDC

DC Output Rated Current

480A

Power Direction

Bidirectional

Expandability

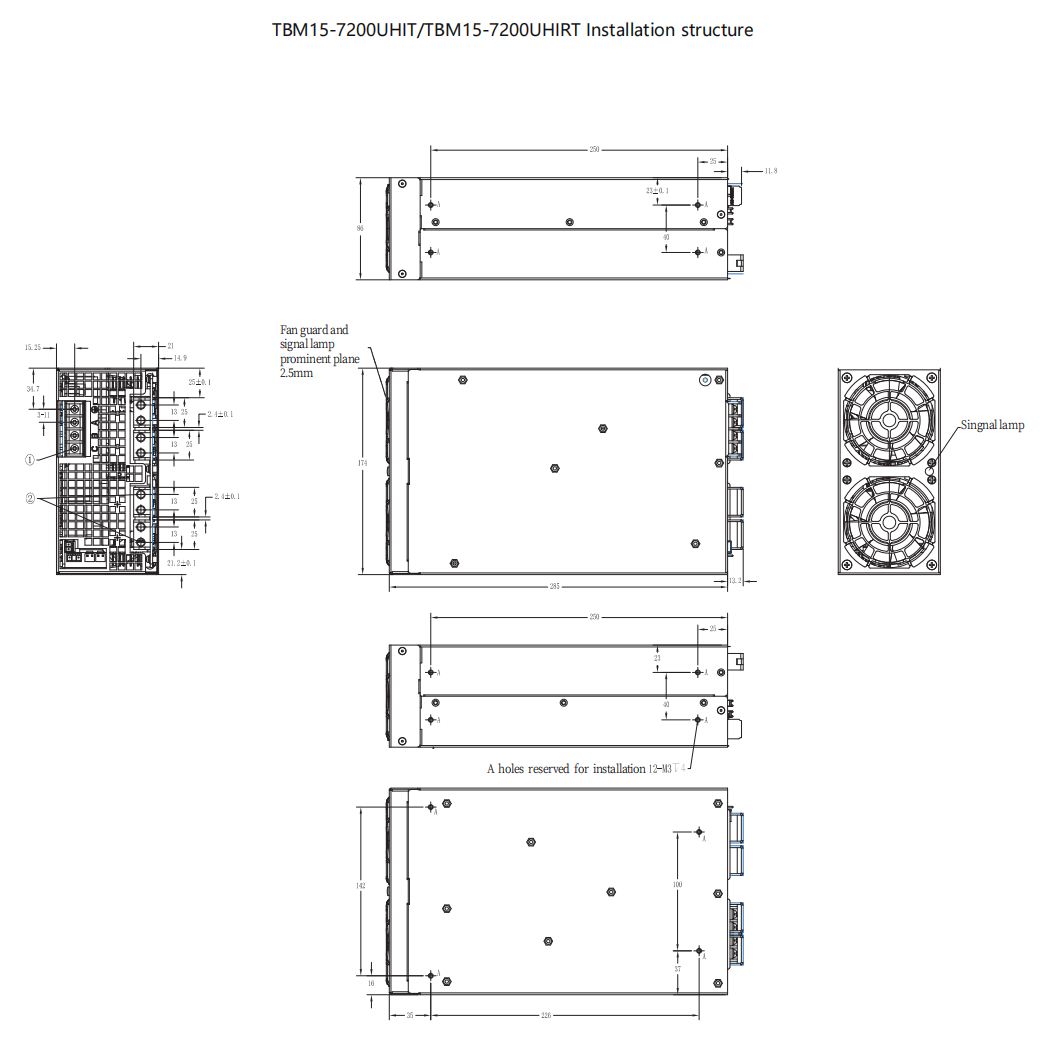

Size（W*H*D）

176mm*86mm*285mm

Weight

≤8kg

GET A QUOTE

Add to Quote List View Quote List

Description

At-a-glance Three-phase • 480VAC

Rated AC: 480VAC
AC range: 384–528VAC (full load)
AC→DC rating: 15VDC / 480A (7.2kW class)
DC→AC rating (per spec table): 5760W / 15VDC / 384A

Power quality Low THDi

Frequency: 50/60Hz (±5Hz adaptive control)
THDi: < 5% @480VAC, full load (grid THDu ≤ 2%)
PF: 0.99 @480VAC, full load (grid THDu ≤ 2%)
Voltage accuracy: ±1%
Ripple voltage: 500mV

Efficiency Bidirectional

Peak efficiency (DC→AC, per spec table): 90.5% @480VAC
Peak efficiency (AC→DC, per spec table): 91.5% @480VAC
Input current (per spec table): ≤12A

Integration & environment CAN • Parallel

Cooling: Forced-air, intelligent control (airflow reversible for R type)
Parallel expansion: Up to 4 units
Communication: CAN
Operating temperature: -10°C to 45°C full load; 45–60°C derate to 90%
Altitude: < 2000m; above 2000m temperature derating 1℃ per 100m rising
Size / weight: 176×86×285mm; ≤8kg

Note: DC side voltage exceeding 20VDC will cause power failure (per datasheet note).

Download
