Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15.5VDC output, 580A rated current, 9kW power, 480VAC 3Ph+PE input, and compact 218 × 86 × 300mm dimensions. Featuring high-frequency isolation, up to 92% bidirectional efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and testing, bidirectional power testing, and energy-recyclable power aging applications.

Wiring Mode

3Ph+PE

AC Input Rated Voltage

480VAC

DC Output Rated Voltage

15.5VDC

DC Output Rated Current

580A

Power Direction

Bidirectional

Expandability

Size（W*H*D）

218mm*86mm*300mm

Weight

≤6.5kg

GET A QUOTE

Add to Quote List View Quote List

Description

At-a-glance Three-phase • 480VAC

Rated AC: 480VAC
AC range: 384–528VAC
AC→DC rating: 15.5VDC / 580A (9kW class)
DC→AC rating (per spec table): 7200W / 15.5VDC / 465A

Power quality PF 0.99 • THDi <5%

Frequency: 50/60Hz (±5Hz adaptive control)
THDi: < 5% @480VAC, full load (grid THDu ≤ 2%)
PF: 0.99 @480VAC, full load (grid THDu ≤ 2%)
Input current (per spec table): ≤15A
Voltage accuracy: 1%
Ripple voltage: 250mV

Efficiency & isolation Up to 92%

Peak efficiency (AC→DC, per spec table): 92% @480VAC
Peak efficiency (DC→AC, per spec table): 91.5% @480VAC
Isolation: High-frequency isolation
Cooling: Forced-air cooling, intelligent control

Integration & environment CAN • Parallel

Parallel expansion: Up to 4 units
Communication: CAN
Operating temperature: -10°C to 45°C full load; 45–60°C derate to 90%
Altitude: <1000m; 1000–3000m derating 1% per 100m rising
Size / weight: 218×86×300mm; ≤6.5kg

Note: DC side voltage exceeding 20VDC will cause power failure (per datasheet note).

Download

Company: About TPS; Certificates & Compliance; Careers

Support & Resources: FAQ Center; Downloads; News & Insights

Services & Products: Electronic Manufacturing Services; Integration Solutions; EMC and Safety Testing; Power Supplies; Accessories

Legal: Privacy Policy; Terms & Conditions; Legal Notice

Contact Info: 175-23 Peck Ave, Fresh Meadows, NY 11365, USA; newyork.us@tps-electronic.com; +1 929 704 1340

Follow Us

Get in Touch with TPS

Name*

Business Email*

Company Name

Country/Region

Afghanistan
Australia
Brazil
Canada
France
Germany
Spain
Switzerland
United Kingdom
United States
Aland Islands
Albania
Algeria
American Samoa
Andorra
Angola
Anguilla
Antigua and Barbuda
Argentina
Armenia
Aruba
Ascension Island
Austria
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan
Bolivia
Bosnia and Herzegovina
Botswana
Bouvet Island
British Indian Ocean Territory
British Virgin Islands
Brunei Darussalam
Bulgaria
Burkina Faso
Burundi
Cambodia
Cameroon
Cape Verde
Caribbean Netherlands
Cayman Islands
Central African Republic
Chad
Chile
China
Christmas Island
Cocos (Keeling) Islands
Colombia
Comoros
Congo
Cook Islands
Costa Rica
Cote D'ivoire
Cuba
Curaçao
Cyprus
Czech Republic
Korea,D.P.R.K
Congo, The Democratic Republic
Denmark
Djibouti
Timor Leste
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Ethiopia
Falkland Islands (Malvinas)
Faeroe Islands
Fiji
Finland
French Guiana
French Polynesia
French Southern Territories
Gabon
Gambia
Georgia
Ghana
Gibraltar
Greece
Greenland
Grenada
France, DOM-TOM Guadeloupe
U.S. Guam
Guatemala
Guernsey
Guinea
Guinea-bissau
Guyana
Haiti
Heard Island and Mcdonald Islands
Honduras
Hong Kong, China
Hungary
Iceland
India
Indonesia
Iran (Islamic Republic of)
Iraq
Ireland
Isle of Man
Israel
Italy
Jamaica
Japan
Jersey
Jordan
Kazakhstan
Kenya
Kiribati
Korea, Republic of
Kosovo
Kuwait
Kyrgyzstan
Lao People's Democratic Republic
Latvia
Lebanon
Lesotho
Liberia
Liechtenstein
Lithuania
Luxembourg
Macau, China
Madagascar
Malawi
Malaysia
Maldives
Mali
Malta
Marshall Islands
France, DOM-TOM Martinique
Mauritania
Mauritius
France, DOM-TOM Mayotte
Mexico
Micronesia, Federated States of
Moldova, Republic of
Monaco
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
Netherlands
Netherlands Antilles
France, DOM-TOM New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Niue
Norfolk Island
North Macedonia
Northern Mariana Islands
Norway
Oman
Pakistan
Palau
Palestine
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Pitcairn
Poland
Portugal
Puerto Rico
Qatar
France, DOM-TOM Réunion
Romania
Russia
Rwanda
Saint Barthélemy
St. Helena
Saint Kitts and Nevis
Saint Lucia
Saint Martin
France,St.Pierre and Miquelon
Saint Vincent and the Grenadines
Samoa
San Marino
Sao Tome and Principe
Saudi Arabia
Senegal
Serbia
Seychelles
Sierra Leone
Singapore
Sint Maarten
Slovakia (Slovak Republic)
Slovenia
Vietnam
Solomon Islands
Somalia
South Africa
South Georgia and The South Sandwich Islands
South Sudan
Sri Lanka
Libyan Arab Jamahiriya
Sudan
Suriname
Svalbard and Jan Mayen Islands
Swaziland
Sweden
Syrian Arab Republic
Taiwan, China
Tajikistan
Tanzania, United Republic of
Thailand
The Commonwealth of Dominica
The Dominican Republic
Croatia
Togo
Tokelau
Tonga
Trinidad and Tobago
Tristan da Cunha
Tunisia
Turkey
Turkmenistan
Turks and Caicos Islands
Tuvalu
U.S. Islands
Uganda
Ukraine
United Arab Emirates
Uruguay
Virgin Islands (U.S.)
Uzbekistan
Vanuatu
Vatican City State (Holy See)
Venezuela
France, DOM-TOM Wallis and Futuna
Western Sahara
Yemen
Zambia
Zimbabwe

Inquiry Type*

General question
New project or solution
Existing system upgrade
After-sales or support

Application / Industry

What problem are you facing right now?

What are you trying to achieve?

Target Timeline

Budget Range

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

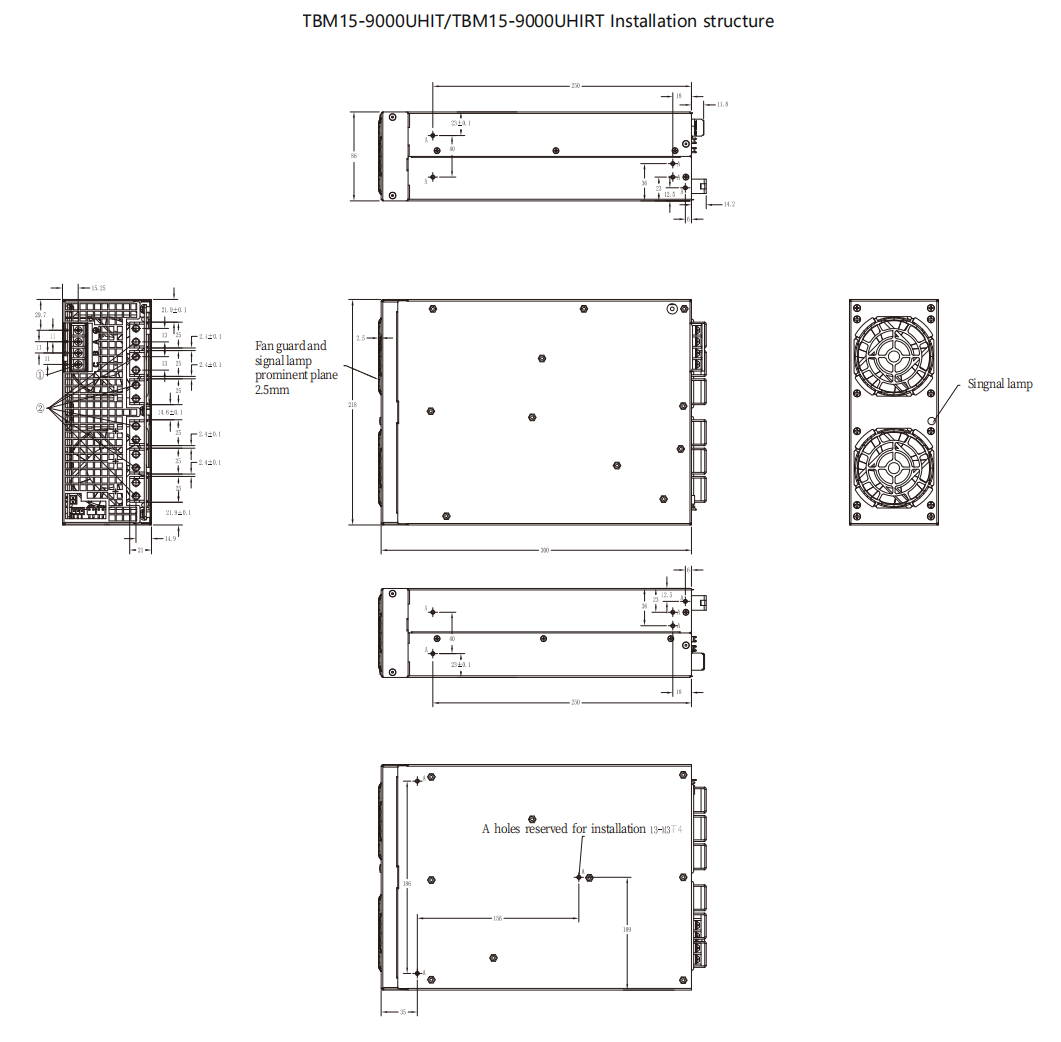

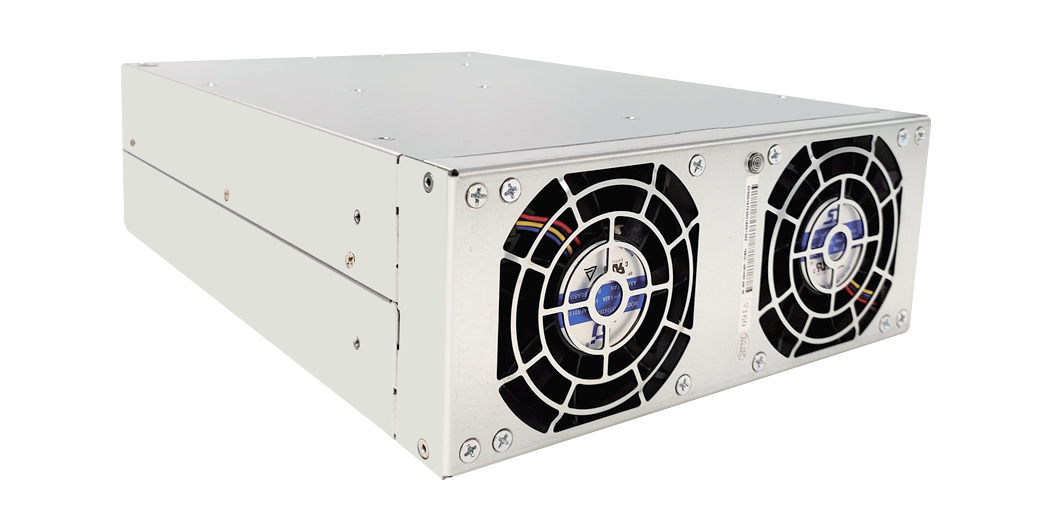

TBM15-9000UHI(R)T
