Industrial Applications of the AIMF480-B24: A 24V/20A DIN-Rail Power Supply for US Control Panels, Machine Skids, and Harsh-Environment 24VDC Systems

Why the AIMF480-B24 fits real industrial 24VDC architectures

Many 24V control systems fail at the edges, not at the nominal load. The problem is rarely that a cabinet needs “24VDC” in the abstract. The real question is whether the supply can handle inrush, long cable runs, hot enclosures, fluctuating mains, status monitoring, and field service expectations without turning commissioning into a debugging exercise.

The AIMF480-B24 is attractive because its spec stack aligns with the way industrial control systems are actually built in the US. A 480W / 20A output class is large enough for mid-to-heavy control loads, yet the DIN-rail format still works for organized enclosure layouts. The wide 85-277VAC input helps when your machine, skid, or distributed panel may land in facilities with different utility conditions, and the 120-390VDC input option adds flexibility for DC-fed architectures or specialized systems. The adjustable 24-28V output gives you practical room to compensate for cable drop or to tune the rail to your control design rather than forcing the rest of the cabinet to adapt.

For panel builders, the model also checks several boxes that matter during shop build and field startup: DC OK signaling for power-good logic, free-air convection cooling, high efficiency to reduce cabinet heat burden, and a mechanical form factor that remains manageable in multi-device rails. The datasheet also lists double-sided conformal coating, active PFC, short-circuit / over-current / over-voltage / over-temperature protection, and wide ambient operation. In plain English, that means the product is positioned for cabinets that need more than a commodity office-grade power brick.

Best industrial application scenarios

1) PLC and I/O control cabinets

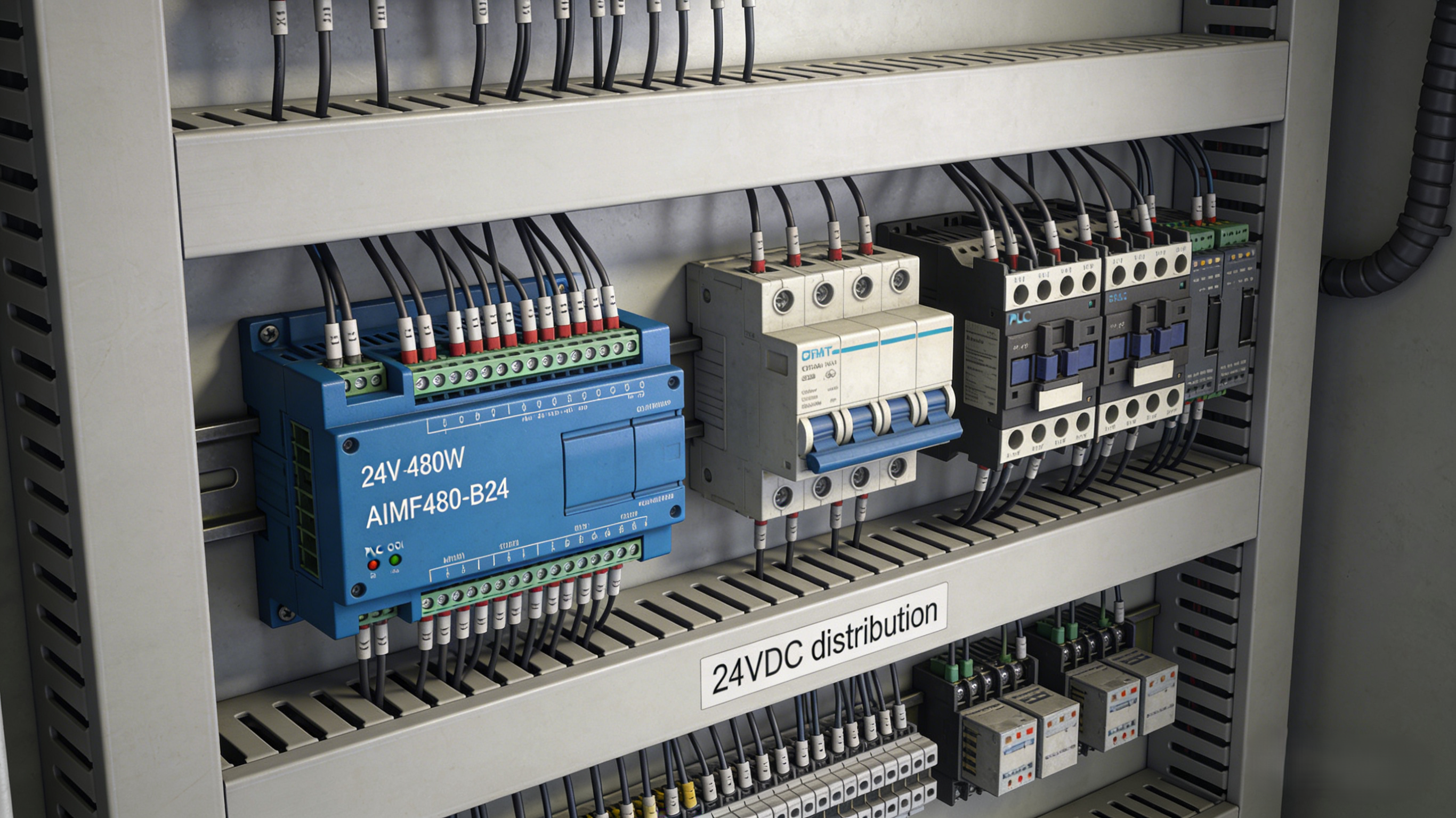

One of the clearest fits is a central 24V rail for PLC CPUs, remote I/O, relays, contactor coils, sensors, signal conditioners, and network switches inside industrial control cabinets. In this use case, the AIMF480-B24 gives enough power budget to consolidate loads that would otherwise require multiple smaller supplies, while still keeping the layout serviceable. Its DC OK signal is useful here because you can feed a PLC input or supervisory relay and know immediately whether the power stage is healthy during commissioning or after a utility event.

2) Machine skids and packaged equipment

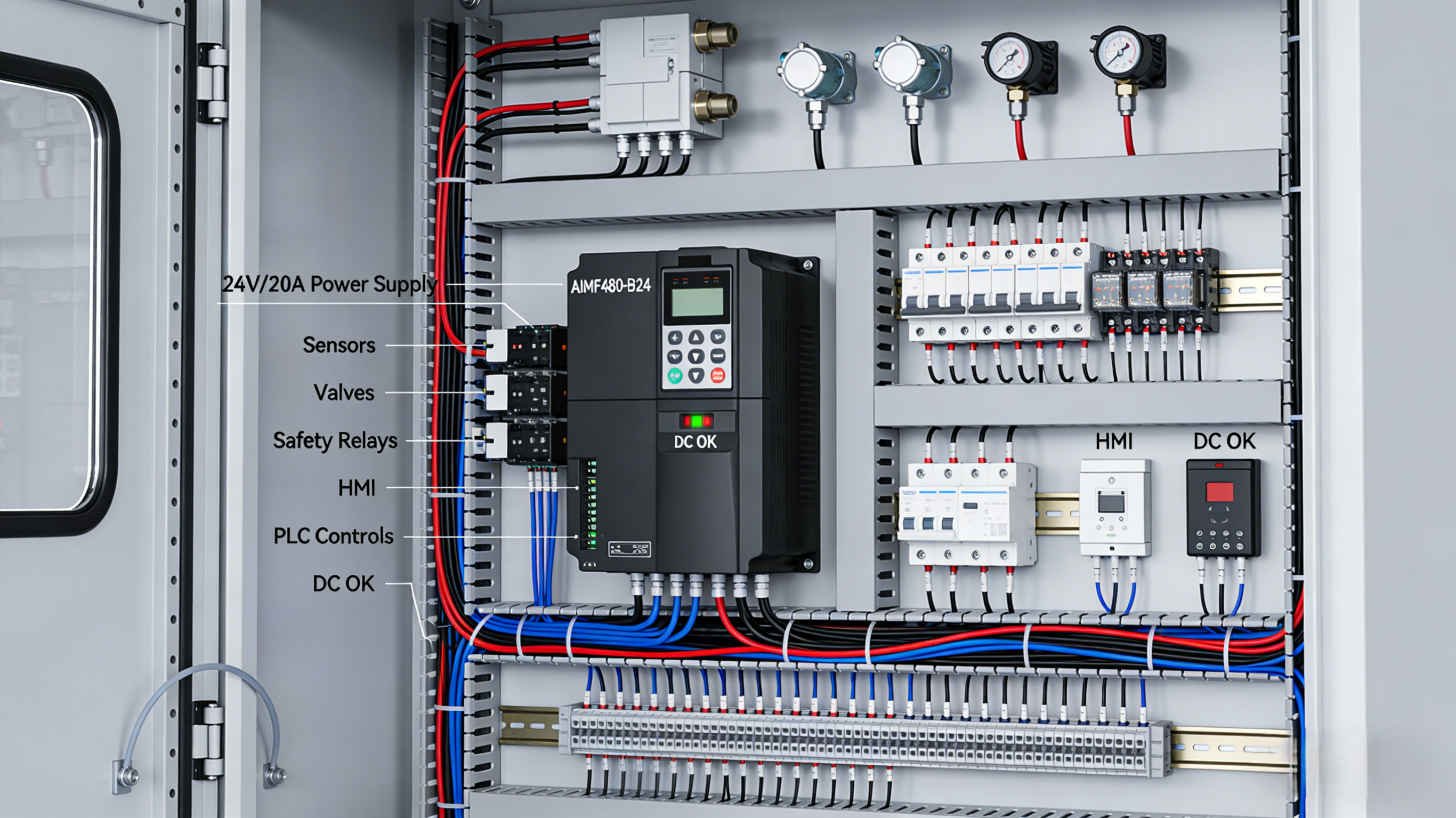

For packaging machines, test skids, pump skids, process modules, and auxiliary machine panels, wide AC input is a genuine commercial advantage. It reduces the need to create multiple panel variants just to accommodate site power differences. If your machine builder sells into different US plants, or exports from a US build program into multiple regions, that flexibility can simplify BOM control and speed up approvals. The 24-28V adjustment range also helps when you know your field wiring, valve manifolds, or distributed loads will benefit from a slightly elevated setpoint.

3) Harsh-environment auxiliary 24V systems

Some control cabinets sit in cleaner electrical rooms. Others live near washdown-adjacent production areas, dusty process environments, or outdoor-adjacent utility spaces where condensation risk, airborne contamination, and maintenance realities are less forgiving. The AIMF480-B24 is relevant in those situations because the series documentation emphasizes conformal coating and harsh-environment orientation. That does not remove the need for a correct enclosure strategy, but it does mean the supply belongs on the shortlist when you are evaluating cabinets that cannot rely on pristine conditions.

4) Distributed automation and remote utility panels

Remote automation nodes, analyzer houses, utility panels, and secondary control boxes often need a compact but dependable 24V source with status visibility and reasonable margin. The model’s size, convection cooling approach, and DIN-rail mounting are practical in these distributed builds, especially when you want cleaner maintenance workflows and less panel clutter. If your enclosure rating and service access still need work, pair the supply selection step with enclosure planning and documentation rather than treating the PSU as a stand-alone decision.

How to size and integrate it without rework

Good PSU selection is not just a wattage decision. For the AIMF480-B24, the smarter workflow is to start with a real load map. List continuous loads first: PLC, HMI, switches, safety relays, transmitters, and always-on auxiliaries. Then layer in dynamic loads such as solenoids, contactor coils, brakes, valves, or accessories that cycle on together. Finally, account for startup and abnormal events, not because the supply must cover every impossible scenario, but because nuisance trips during field startup are expensive and avoidable.

At 24V / 20A, this model is often best when you want to run the main control rail and still preserve margin. A practical rule in industrial cabinets is to avoid sizing to the exact nameplate sum. Leave engineering headroom for ambient drift, line variation, future I/O additions, and service diagnostics. The model’s 24-28V adjustment range is useful if your cabinet uses longer 24V runs or if downstream devices are happier toward the upper end of a regulated 24V rail. Just make sure every connected device stays inside its own accepted voltage window.

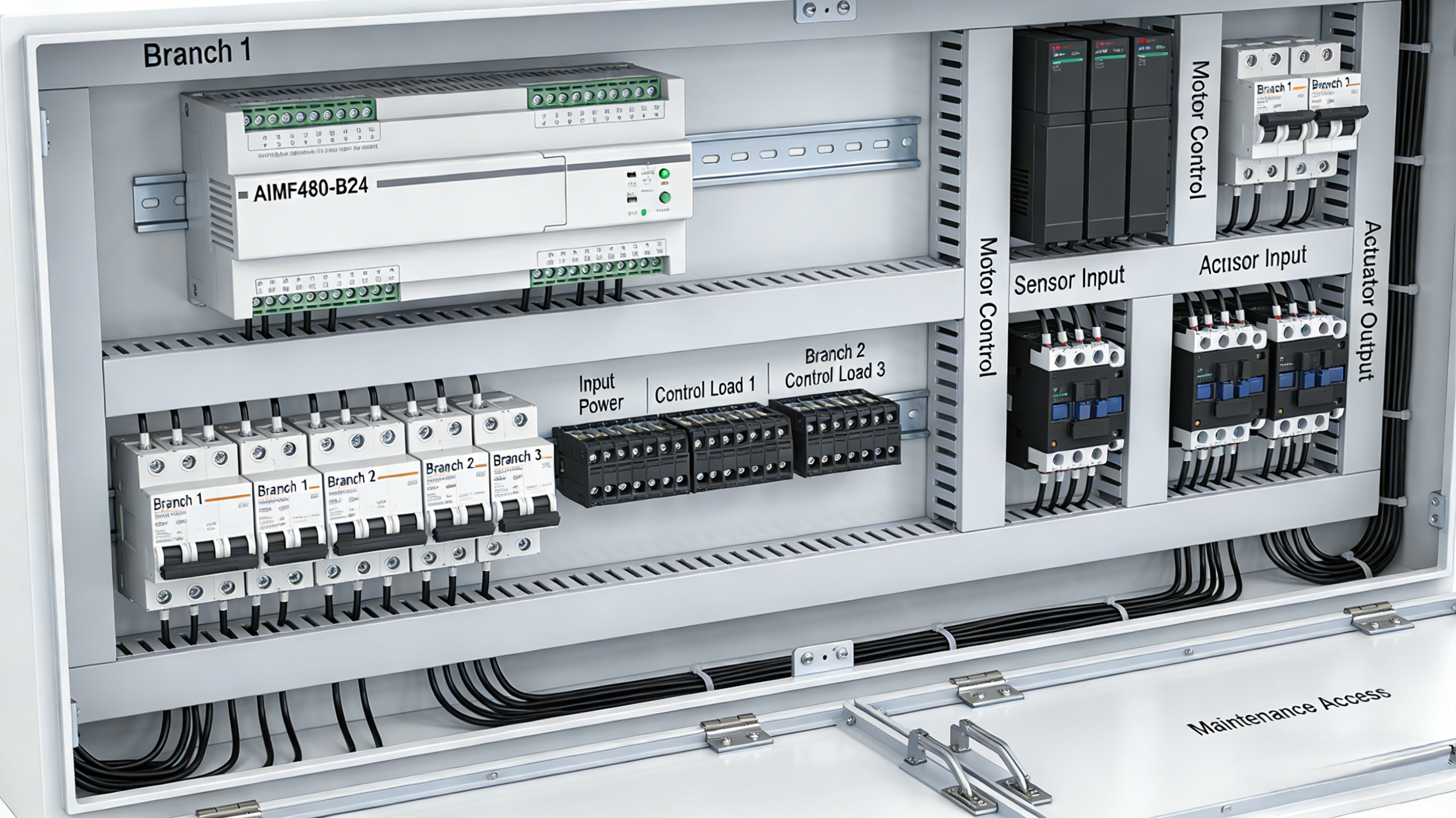

The capacitive load limit, DC OK status, and protection behavior also matter in integration reviews. If you have large bulk capacitance downstream, e-fuse modules, or segmented 24V distribution, validate those interactions in your bench setup before release. This is exactly where it helps to think beyond the PSU in isolation. A clean 24V design includes branch protection, isolation strategy, labeling, and accessible service points. For that reason, a useful companion read is DIN-Rail 24V DC Power Distribution for Lab & Test Racks, even if your application is not a lab rack in the strict sense.

Another common mistake is to ignore mechanical integration until late in the project. The supply is still a thermal device. It needs mounting space, terminal access, and sensible wire management. When the surrounding layout is poor, even a strong power supply becomes difficult to service. Use early enclosure planning and documented wiring conventions, especially for higher-density panels. TPS ELECTRIC LLC already covers that workflow in Test Rack Enclosure Design: Layout, Wiring, Documentation, and Service Access and in NEMA vs IP vs UL 50E: Choosing an Enclosure Rating Without Guessing.

Thermal, EMC, and compliance checkpoints

This is where bottom-of-funnel buyers separate “looks fine on paper” from “ready for production release.” The AIMF480-B24 product and series information are attractive precisely because they speak to thermal performance, industrial EMC behavior, and broader compliance alignment. But these claims only help you if you apply them correctly inside your end equipment.

Thermal reality inside the cabinet

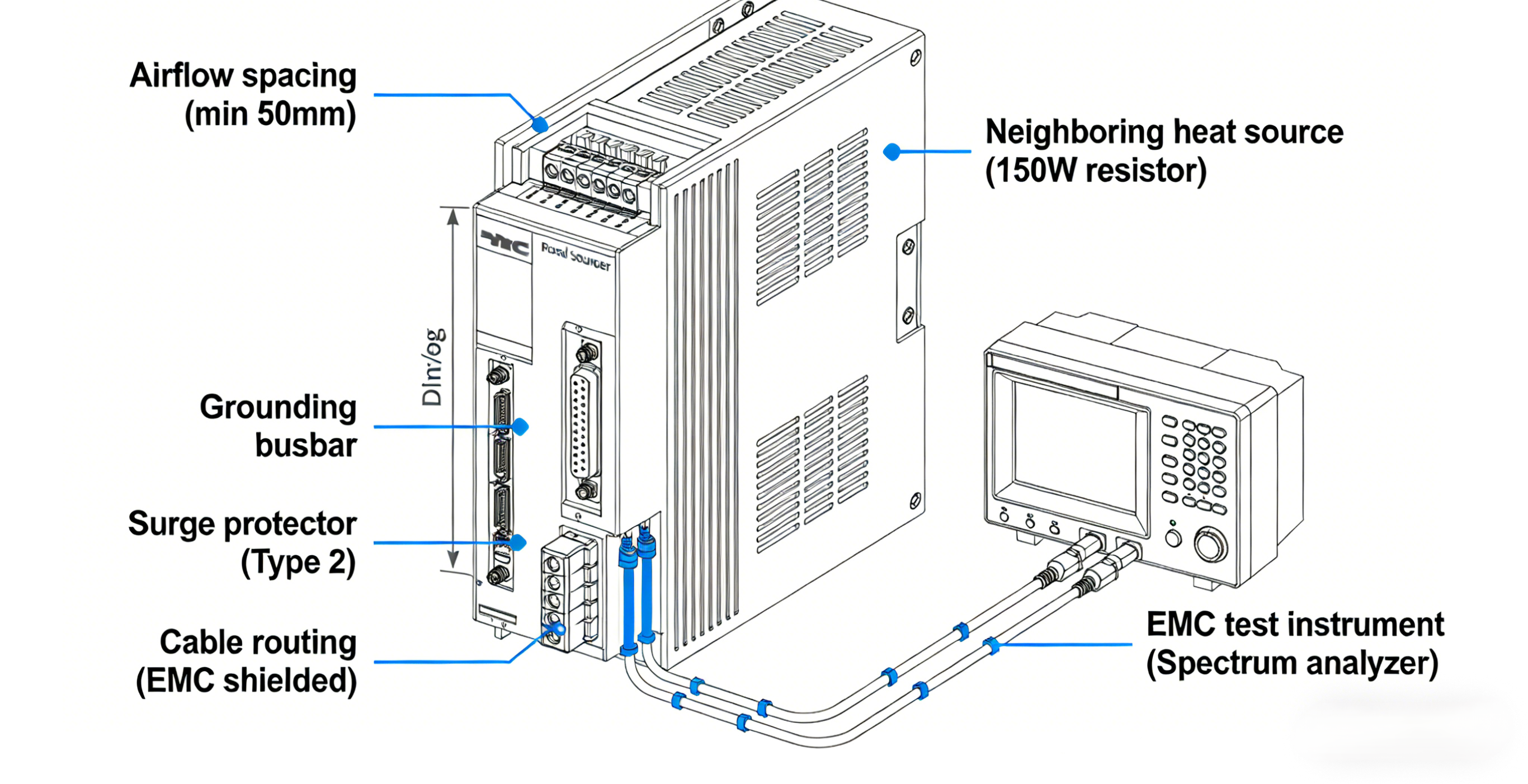

High efficiency is valuable because every point of lost efficiency becomes heat you still have to manage inside the enclosure. A 95% efficient 480W supply is easier to live with than a lower-efficiency alternative, but it is not thermally invisible. If your cabinet is tightly packed, mounted near drives, or installed in a hot mechanical space, you should validate the true ambient seen by the power supply rather than relying on room temperature. The series installation pages also indicate recommended clearance around the unit and orientation-dependent derating behavior. In practical terms, that means you should test the exact mounting orientation and adjacent heat sources you intend to ship, not just a bench setup with open air on every side.

EMC reality in machine and panel builds

Industrial power supplies are rarely the only noise actors in the cabinet. Drives, relays, switched loads, cable routing, grounding quality, and enclosure bonding all influence EMC performance. The AIMF480 series documentation is useful because it references conducted and radiated emissions plus immunity tests such as ESD, EFT, surge, conducted immunity, and voltage dips. That is a good sign for industrial integration, but it does not eliminate system-level responsibility. Your actual panel wiring and grounding scheme still determine whether the end product passes smoothly.

If EMC confidence matters to your buying decision, connect this product choice to your test workflow. The most relevant supporting reads from TPS ELECTRIC LLC are Industrial Automation Power EMC & Safety Testing, EMC & Safety Testing for EMS & System Integration, and Designing an EMC Test Bench for Power Electronics R&D Labs. These are especially relevant if your team wants to move from paper compliance to a repeatable validation process.

Compliance reality: model, series, and end equipment are not the same thing

Buyers should also keep the documentation hierarchy straight. A product page or series datasheet can point you in the right direction, but your project file must still tie the exact ordered part, the installation method, and the end-equipment standard together. If your panel will be reviewed against machine, industrial control, telecom, or other sector-specific rules, verify which marks and standards apply to the exact shipped configuration. This is particularly important when the documentation uses series-level language for temperature, EMC, or hazardous-environment suitability.

Procurement and RFQ checklist for faster approval

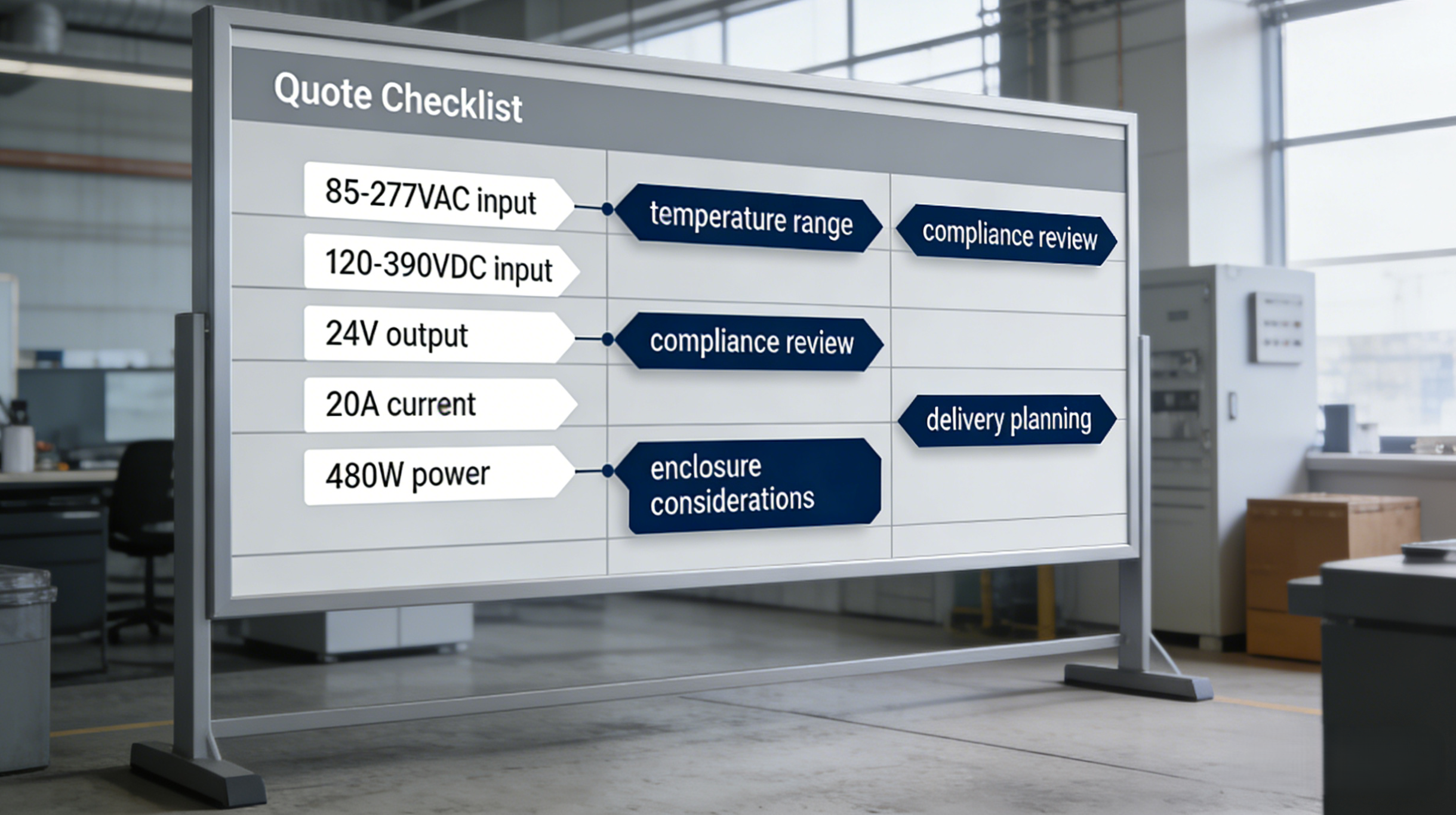

When a buyer or engineer is already comparing short-listed power supplies, the fastest way to get to a useful quote is to send a structured requirement set instead of a part number alone. For the AIMF480-B24, that means telling TPS ELECTRIC LLC not just that you want a 24V / 20A DIN-rail supply, but also how the unit will be used. Procurement speed improves when the commercial conversation matches the engineering risk.

If your use case still has uncertainty, it often makes sense to link the quote request to integration support, enclosure design support, or EMC/safety validation rather than treating the PSU as a stand-alone transaction. Two useful next reads are Custom Power Supply Modules for OEM Systems and EMC Battery Charger & Safety Testing for DC Power Systems if your wider program includes higher-complexity power conversion or system-level validation.

The bottom line is simple: if your application is a serious 24V industrial control rail rather than a light accessory circuit, the AIMF480-B24 deserves a close look. Review the full AIMF480-B24 product page, match the specs to your actual cabinet conditions, and send an RFQ with the real system context. That approach is far more likely to produce a usable quote and a clean first-pass integration than buying strictly from a headline wattage number.
