If your 24V control cabinet must survive high ambient temperature, mixed continuous and intermittent loads, and a procurement review that asks for real engineering logic, this guide shows how to evaluate AIMF480-B24 as a practical fit rather than a catalog checkbox.
The focus is simple: move from “480W sounds enough” to a defensible design result that system integrators, panel builders, electrical engineers, and sourcing teams can all use.
Quick answer
AIMF480-B24 is worth shortlisting when you need a 24V / 20A DIN-rail supply for a higher-current industrial control panel and your design benefits from wide 85–277VAC input, 24–28V adjustment, DC OK signaling, conformal coating, and a product-page-listed -40°C to +85°C ambient range. The right engineering question is not “Is it 480W?” but “Does it still give me enough usable margin after real cabinet temperature, peak loads, startup events, and monitoring requirements are included?”
This article gives you a step-by-step sizing approach, a procurement-ready checklist, and a clear answer to when AIMF480-B24 is a solid single-supply choice versus when you should move to redundancy, split-bus, or a different architecture.
Engineering scene: the real 24V cabinet problem
A common US panel-builder scenario looks like this: one 24VDC rail feeds a PLC, HMI, remote I/O, network switches, safety relays, sensors, and a few intermittent actuators. On paper, the arithmetic appears easy. In practice, the bad surprises show up later: a breaker nuisance-trips on power-up, the panel runs hotter than expected in July, a solenoid bank drags the rail during a restart, or procurement asks for a cleaner justification before releasing the PO.
That is why power-supply selection belongs inside a broader cabinet architecture discussion, not as an isolated part-number choice. If you have not already mapped source, distribution, protection, and load groups, start with DC power architecture planning for industrial control cabinets. It is much easier to defend a supply choice when the load tree is already organized.
For most 24V systems, you also need to separate three different questions:
- What is the continuous demand when the machine is in normal operation?
- What is the intermittent or peak demand during switching, startup, or fault recovery?
- What is the worst-case cabinet condition after ambient rise, airflow restriction, and adjacent heat sources are included?
That separation is what turns a generic “480W supply” into an engineering result. If your team still sizes by adding nameplate currents, review this more detailed approach to 24V control panel load calculation for continuous, peak, and duty-cycle conditions.
Why AIMF480-B24 is a credible option
On the public product page, AIMF480-B24 is positioned as a 24V DIN-rail power supply rated at 480W / 20A, with 85–277VAC or 120–390VDC input, 24–28V adjustable output, 95% efficiency at 230VAC, a listed maximum capacitive load of 100000uF, conformal coating, and DC OK support. For control-cabinet designers, that combination matters because it addresses several real design constraints at once: line flexibility, monitoring, output trim, and survivability in harsher electrical environments.
In BoFu terms, the key benefit is not that the unit is “industrial.” The key benefit is that it can reduce engineering compromises when your cabinet is moving beyond a light PLC-only load profile. A 20A, 24V supply is useful when the panel has enough always-on electronics that a smaller supply would force you into either razor-thin headroom or an immediate two-supply redesign.
There are four especially practical reasons to shortlist AIMF480-B24:
1) Wide input flexibility reduces site-specific friction
US system integrators often inherit inconsistent source conditions from one machine build to the next. A wide AC input window helps keep the same platform usable across multiple projects and geographies. That matters for OEM standardization, spare strategy, and procurement simplification.
2) Output adjustability gives you tuning room
The 24–28V trim range is useful when cable drop, distributed field loads, or device tolerances make a nominal 24V setting less than ideal. It is not a substitute for poor wiring design, but it gives the engineer a legitimate adjustment lever during validation.
3) DC OK turns the supply into a maintainable asset
For panel builders who care about diagnostics, DC OK is more than a feature bullet. It is the bridge between the power stage and the PLC alarm layer. Used well, it lets maintenance know the cabinet is drifting toward a power issue before the machine reaches a hard stop. TPS ELECTRIC LLC also has a practical guide on DC OK relay wiring to PLC inputs if you want to turn that status signal into something operationally useful.
4) Coating and harsh-environment fit improve design confidence
When humidity, dust, or mild corrosive exposure are part of the job, conformal coating becomes a design-risk reducer. It does not eliminate enclosure-level engineering, but it supports better field durability than an otherwise similar supply chosen only on wattage and price.
Need a faster go / no-go answer?
If your team already has a draft load list and cabinet ambient estimate, compare them against the public product page for AIMF480-B24 and send the RFQ with your operating assumptions. That shortens the technical review loop.
A sizing workflow that survives review
Here is the method that works best when engineering and sourcing both need a defendable answer.
Step 1: Build the load map by behavior, not only by device type
Group loads into always-on electronics, switched loads, startup/restart events, and anything safety-related. This keeps a PLC power rail from being evaluated the same way as a bank of contactors or valve manifolds. It also helps you decide whether one PSU should feed the whole cabinet or whether some loads deserve isolation.
| Design question | What to verify | Why it matters for AIMF480-B24 |
|---|---|---|
| Continuous 24V demand | Normal operating current of PLC, HMI, I/O, comms, and always-on auxiliaries | Determines whether 480W is comfortable or already too close to the edge |
| Peak / intermittent demand | Simultaneous switching, solenoid pull-in, relay banks, restart events | Protects against nuisance trips, rail sag, and unstable recovery |
| Voltage distribution | Cable length, terminal losses, trim setting, remote load sensitivity | Uses the 24–28V adjustment window effectively |
| Monitoring need | PLC alarming, service diagnostics, uptime expectations | Justifies the value of the DC OK feature |
Step 2: Add margin where failures actually happen
Margin is not just “20% because we always do that.” The right margin reflects thermal rise, aging, field modifications, and uncertain peak coincidence. In many cabinets, the design fails not because the continuous load math was wrong, but because the real machine did something ugly during power-on or restart. If nuisance tripping is already part of your project history, review this guide to startup tripping, inrush, and breaker behavior before you finalize the upstream protection strategy.
Step 3: Judge fit by operating result, not by catalog match
AIMF480-B24 is usually a good candidate when your 24V architecture needs one robust supply, your continuous load is materially below the headline rating after margin is added, and your intermittent peaks are understood well enough that the rail stays stable during real operating sequences. It becomes a weaker fit when the cabinet will run hot, the orientation is unfavorable, the peak profile is poorly known, or uptime requirements are high enough that a single point of failure is unacceptable.

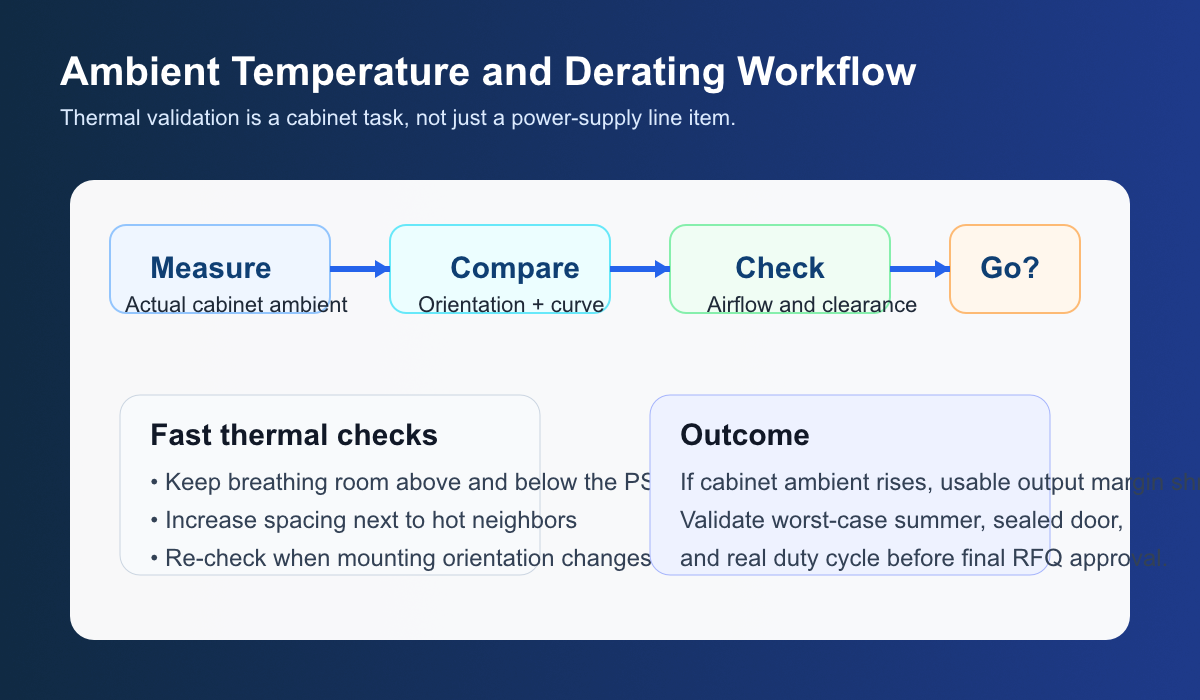

Thermal and layout checks before you freeze the BOM
This is where many otherwise solid BOMs get into trouble. A supply may look comfortable at room temperature on a bench but behave differently inside a crowded enclosure. TPS ELECTRIC LLC’s own content on DIN-rail power-supply derating in control cabinets and control-cabinet thermal design is worth reviewing before you release a final panel drawing.
For AIMF480-B24 specifically, there are three practical checks to make:
- Cabinet ambient versus room ambient: use the actual air temperature at the supply location, not the room temperature outside the enclosure.
- Clearance and neighboring heat: if a drive, resistor, transformer, or another PSU sits nearby, the local thermal condition can be much worse than the cabinet average.
- Mounting orientation: orientation-specific curves matter. A supply that performs well in the preferred mounting direction can lose margin faster when rotated.
The installation pages in the datasheet also show recommended breathing space around the unit; in practice, that means you should not evaluate the power supply in isolation from the DIN-rail layout. The best habit is to validate the highest-load, highest-ambient, door-closed case before the BOM is locked.
For projects governed by US industrial control-panel expectations, it is also reasonable to keep panel-level design decisions aligned with official references such as UL 508A and NFPA 79. Those are not product-selection shortcuts, but they help keep the cabinet design discussion in the right compliance frame.
Wiring, monitoring, and redundancy decisions
Not every 24V cabinet needs redundancy. Many machines are better served by one correctly sized PSU, good branch protection, and DC OK monitoring to the PLC. That design is simpler, easier to service, and often fully appropriate when a controlled stop after a supply fault is acceptable.
Redundancy becomes more attractive when the process cannot tolerate a rail collapse, when maintenance isolation is important, or when you want to split critical and noncritical loads. If that is your application, use TPS ELECTRIC LLC’s wiring guide for ORing, redundancy modules, and dual-PSU split-bus options before finalizing the architecture.
A good decision rule looks like this:
- Choose single PSU + DC OK when one supply can meet the load with margin and the machine can fail safely.
- Choose split-bus when noncritical loads should not pollute the critical control rail.
- Choose redundancy when uptime, maintenance continuity, or process risk justifies the extra hardware.
Whichever topology you choose, do not ignore service safety. Any cabinet service plan should remain consistent with official lockout / tagout practices such as OSHA’s control of hazardous energy guidance.
Ready to validate a live project?
Use the AIMF480-B24 product page as the RFQ landing point, then attach your load list, ambient assumptions, and desired monitoring topology. That gives your sourcing and engineering teams a common decision packet instead of a bare part number.
What procurement should include in the RFQ
Procurement gets better answers when the quote request looks like an engineering brief. Instead of sending only “24V 20A DIN-rail PSU,” include the data that actually controls fit. That makes it easier to confirm whether AIMF480-B24 is the right answer immediately, whether accessories or architecture changes are needed, or whether a different platform should be considered.
| RFQ field | What to include |
|---|---|
| Electrical load profile | Continuous watts, intermittent loads, startup profile, and any large capacitive or inductive events |
| Source conditions | Input supply type, expected voltage range, branch protection, and any brownout or restart concerns |
| Panel environment | Worst-case cabinet ambient, ventilation strategy, adjacent heat sources, contamination, humidity, or salt exposure |
| Mechanical constraints | DIN-rail orientation, available space, clearance limits, and service-access expectations |
| Controls integration | Need for DC OK to PLC, alarm philosophy, and whether critical loads require split-bus or redundancy |
| Compliance scope | Panel or machine standard target, qualification plan, and documentation needed for the project file |
This is also the point where procurement should ask a final business question: are we standardizing this part for future builds, or only solving one project? If standardization matters, wide-input flexibility, better monitoring, and environmental tolerance can easily outweigh the small savings of a less capable supply. In other words, the right BoFu question is not “What is the cheapest 480W DIN-rail PSU?” It is “Which choice reduces field risk, panel redesigns, and approval friction over multiple jobs?”
Final recommendation
If your project needs a 24V / 20A DIN-rail supply for a real industrial cabinet rather than a light-duty control box, AIMF480-B24 deserves a serious look. It is especially compelling when you want wide AC input, output trim, DC OK signaling, and better environmental resilience in one package. The part becomes most persuasive when paired with disciplined load budgeting, cabinet thermal validation, and a clear maintenance strategy.
For US system integrators, panel builders, electrical engineers, and procurement teams, the practical result is this: use AIMF480-B24 when the cabinet architecture supports a single well-sized 24V rail with adequate margin. Move to split-bus or redundancy when uptime, load isolation, or process risk demands more than one supply can safely provide.
When you are ready to turn that analysis into a project decision, send your load profile and cabinet conditions through the AIMF480-B24 RFQ page so the technical review starts from your real operating assumptions, not from a generic wattage comparison.
FAQ
Is AIMF480-B24 a good fit for a mixed 24V control panel?
Yes, when the panel needs higher 24V current, wide input flexibility, and DC OK monitoring, and when the cabinet thermal result still leaves comfortable headroom after continuous and peak loads are separated.
Should I size this supply only from connected load current?
No. A better method is to separate continuous load, intermittent load, and startup or restart events, then add margin for temperature, aging, and future field additions.
When should I choose redundancy instead of one AIMF480-B24?
Choose redundancy when one supply failure cannot be tolerated, when maintenance continuity is required, or when critical and noncritical loads need deliberate isolation.
Why does DC OK matter in a control cabinet?
DC OK lets you turn the power supply into a monitored component. Wired into a PLC input, it can support alarm logic, service diagnostics, and cleaner predictive maintenance workflows.
What should procurement send with the RFQ?
Send continuous and peak load data, source conditions, cabinet ambient, layout limits, monitoring expectations, and compliance scope. That usually produces a faster and more accurate technical answer.
