When your project needs a high-power single-phase AC/DC platform, the right question is not simply “Which 3000W power supply is available?” The better question is “Which rail, controls, compliance path, and integration strategy will reduce redesign risk and accelerate supplier approval?” This guide is written for system integrators, panel builders, procurement teams, and electrical engineers evaluating the TPS PFS3000 family for industrial and medical programs that need a 24V to 150V DC bus.
Instead of generic SEO content, this page is designed to help you make a supplier-shortlisting decision, prepare a cleaner RFQ, and confirm whether TPS can support your program with the right PFS3000 model, equivalent solution, or project-level integration assistance.
PFS3000 sits in a practical decision zone for teams that have already moved beyond concept selection. At this stage, you likely know your bus voltage range, continuous power target, cabinet or subsystem envelope, and the approval path your customer expects. What you need is a supplier that can match electrical requirements with integration realism. That is where the PFS3000 family becomes meaningful.
The platform covers 24V through 150V outputs in a single 3000W class, which means it can support very different high-power architectures without forcing your team to jump between unrelated hardware families. For lower-voltage, higher-current builds, the 24V, 30V, 36V, 42V, and 48V versions help simplify DC bus planning for automation, charging, and lighting systems. For higher-voltage bus designs, the 60V, 72V, 100V, 120V, and 150V options fit programs that need more voltage headroom for motion, charging, or specialized industrial and medical loads.
It also includes the features BoFu buyers actually care about: remote sense to compensate for cable drop, DC_OK for status visibility, remote on/off for system control, active current sharing for scalability, and PMBus or CANBus options when the project needs a smarter integration story. Those are not “nice to have” details; they directly affect commissioning time, fault visibility, and long-term serviceability.
Use PFS3000 when the project needs a 3kW single-phase AC/DC platform with output choices from 24V to 150V and a clear path to system-level control signals.
The compact 4.28" × 10.95" × 1.61" form factor helps when cabinet depth, rack density, or subsystem packaging matters as much as power density.
TPS is not just shipping a catalog unit. TPS can support model selection, equivalent solution matching, and project discussion for global B2B customers that need more than a part lookup.
For procurement and engineering teams, the fastest way to assess the family is to break it into current-heavy rails and higher-voltage rails. The current-heavy side includes 24V at 125A, 30V at 100A, 36V at 83.4A, 42V at 71.5A, and 48V at 62.5A. The higher-voltage side includes 60V at 50A, 72V at 41.7A, 100V at 30A, 120V at 25A, and 150V at 20A. The 48V and below models can also be specified with optional Oring-FET support, which can be useful when redundancy or parallel architecture planning becomes part of the project scope.
Across the family, the common platform characteristics are what make supplier evaluation easier: universal 90–264Vac input, 47–63Hz frequency range, up to 95% max efficiency on the 48V model, less than 3% regulation, 1% peak-to-peak ripple, dynamic response under 5%, a 5V/2A auxiliary rail, and an MTBF above 500k hours. The platform also supports 4000Vac primary-to-secondary isolation, 2×MOPP medical isolation, operation up to 5000m altitude, IEC/UL 62368-1 and IEC/UL 60601-1 approvals, and IEC 60601-1-2 related EMC positioning for medical-adjacent projects.
These versions are strong candidates for high-current cabinet buses, automation subsystems, AGV charging modules, stage-lighting power distribution, and robotic subsystems where copper loss, cable drop, and startup current behavior need close attention. If your team is already working through 24V load calculation or comparing approaches for redundancy and OR-ing, these models deserve a deeper look.
These versions fit better when system current needs to be reduced through a higher DC bus, or when the load itself expects a higher nominal rail. They are relevant for motion systems, charging applications, industrial equipment, collaborative robot subsystems, cooling systems, and medical equipment where high power and controlled integration both matter.
| Model link | Nominal output | Rated current | Typical project fit |
|---|---|---|---|
| PFS3000T24 | 24V / 3000W | 125A | 24V high-current buses, charging modules, control systems |
| PFS3000T30 | 30V / 3000W | 100A | Specialized automation rails and charging subsystems |
| PFS3000T36 | 36V / 3000W | 83.4A | Motion control and industrial 36V power architectures |
| PFS3000T42 | 42V / 3000W | 71.5A | Lighting, servo, and niche DC bus designs |
| PFS3000T48 | 48V / 3000W | 62.5A | Robotics, industrial equipment, battery-adjacent subsystems |
| PFS3000T60 | 60V / 3000W | 50A | Higher-voltage motion, charging, and bus architectures |
| PFS3000T72 | 72V / 3000W | 41.7A | Industrial systems needing lower cable current at 3kW |
| PFS3000T100 | 100V / 3000W | 30A | High-voltage DC bus, test and medical-adjacent platforms |
| PFS3000T120 | 120V / 3000W | 25A | Charging and specialized industrial systems |
| PFS3000T150 | 150V / 3000W | 20A | High-voltage DC bus programs and custom system integration |

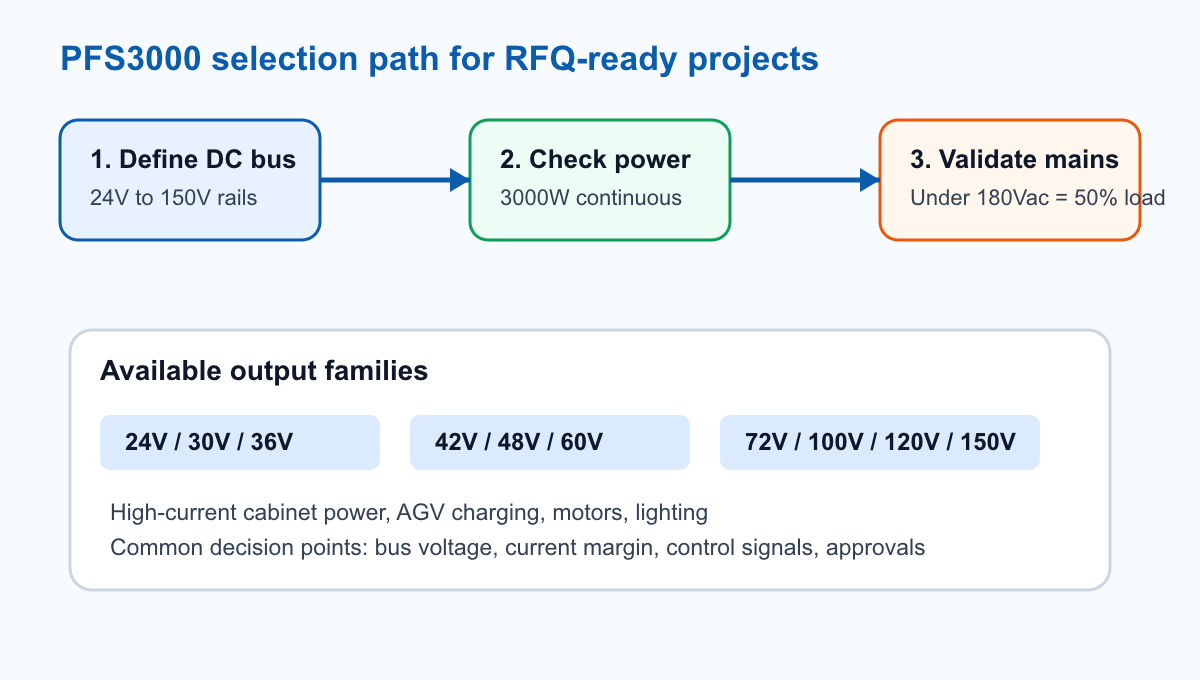

A good BoFu article should help the reader decide, not just admire the spec sheet. For PFS3000, a useful selection workflow has four steps: define the DC bus, verify continuous and peak demand, confirm the actual input environment, and then match controls, compliance, and packaging to the system. This matters because the “best” model is rarely the one with the highest number on the page; it is the one that reduces downstream engineering friction.
Select the nominal rail based on load architecture, cable run, allowable drop, and downstream conversion needs. Lower-voltage rails increase current quickly, which affects copper size, connector heating, and distribution losses. Higher-voltage rails can improve distribution efficiency but may shift insulation, protection, and end-load compatibility requirements. If your team is still rationalizing cabinet bus structure, the TPS resources on planning DC power architecture and RFQ-ready 24V sizing are useful supporting reads.
Do not assume that “3000W system” means “3000W power supply required” or the reverse. Many industrial systems experience brief inrush or accelerated startup sequences that are shaped by motors, drives, capacitive loads, chargers, fans, and simultaneous subsystem enable events. In those situations, the right question is whether the power architecture needs temporary headroom, staged startup logic, or multiple rails rather than only more nameplate wattage. This is also why remote on/off and DC_OK matter: they help you control power sequencing and validate power health during commissioning and service.

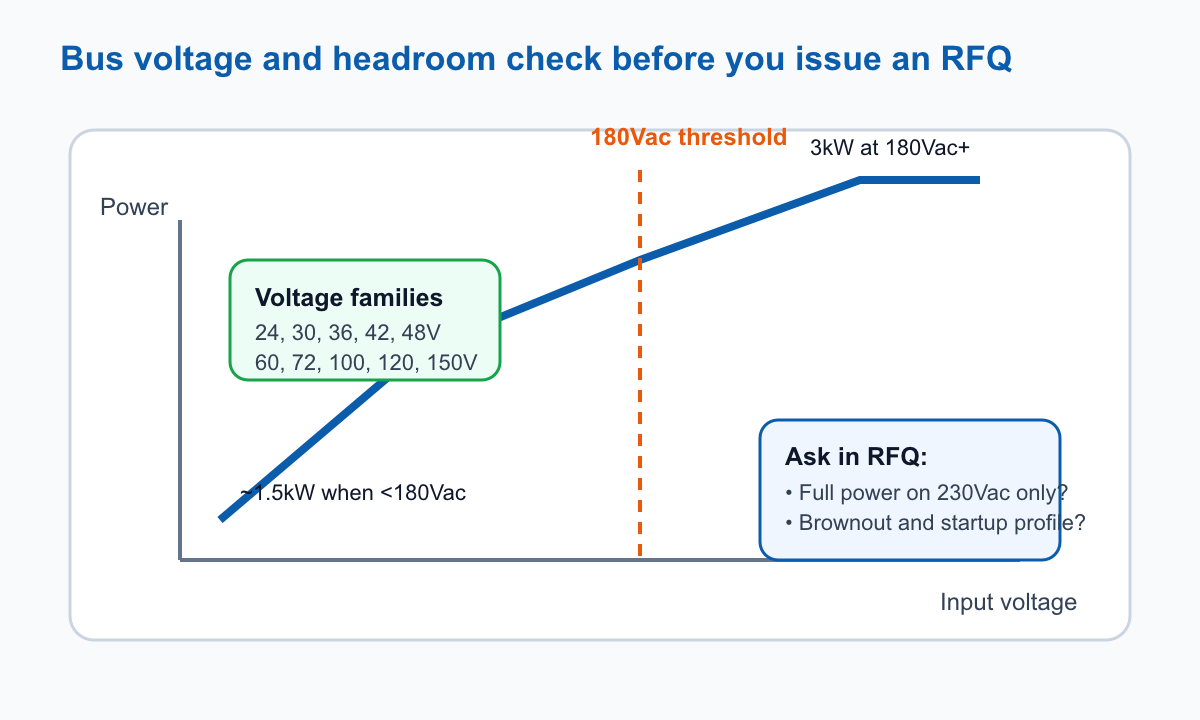

This step often decides whether a supplier stays in the short list. PFS3000 supports a global 90–264Vac input range, which is attractive for multinational programs. However, when the input is below 180Vac, the family derates to 50% load. That is completely manageable if the system normally runs on 200–240Vac, but it becomes a design constraint if the program expects full 3kW performance on lower line conditions. Procurement should therefore ask the OEM or end customer to specify nominal line, brownout behavior, and acceptable derating before sending an RFQ.

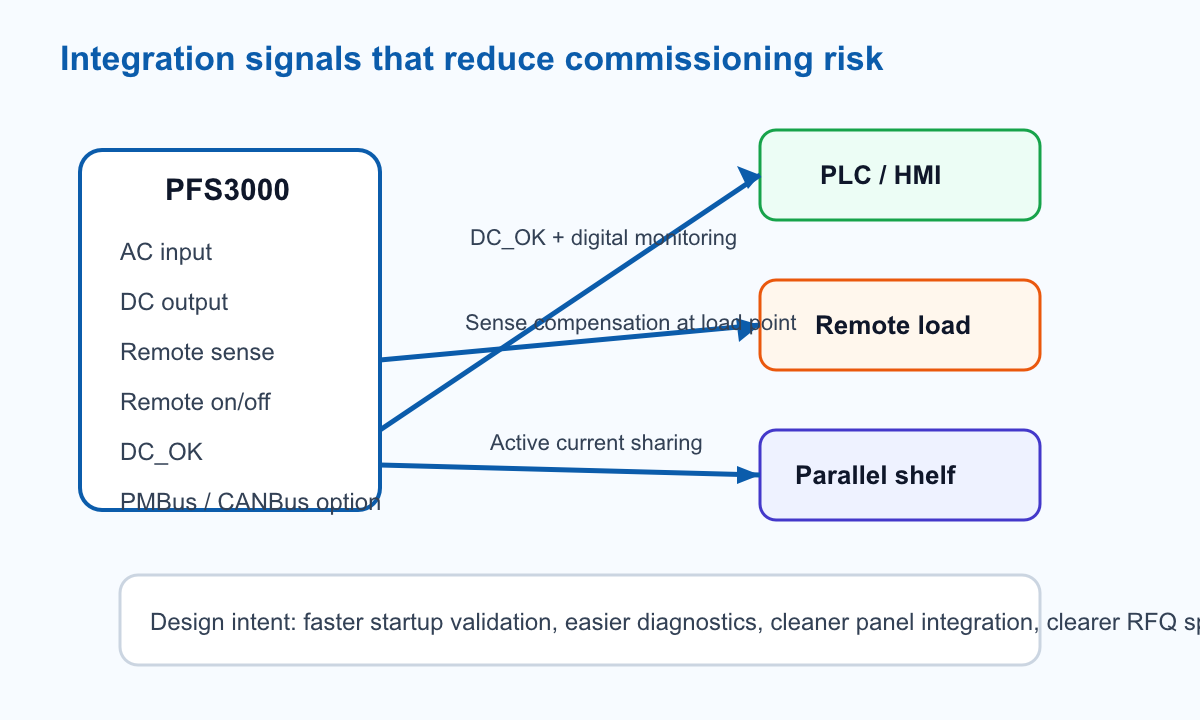

In many real programs, the controls and status interface are what separate a smooth integration from a painful one. PFS3000 provides remote sense, remote on/off, DC_OK, active current sharing, and PMBus or CANBus options. That combination is useful when the power supply must talk to a PLC, support remote diagnostics, compensate voltage drop at the load, or scale across a parallel architecture. If your maintenance strategy depends on alarm visibility, it is also worth reviewing TPS guidance on DC_OK relay wiring and predictive maintenance signals.
A 3kW power supply cannot be evaluated like a generic commodity board. Mechanical access, airflow direction, service routing, grounding, and high-current wiring discipline all matter. PFS3000 uses a compact high-integration package, which is helpful when the cabinet is dense, but that also means the surrounding layout has to be intentional. Leave space for cable bend radius, service access, airflow, and inspection. If the supply is mounted inside a control cabinet, thermal planning should be reviewed alongside total system loss rather than after the panel design freezes.
For teams working on cabinet-level power design, these TPS engineering articles can support early integration decisions: thermal design and airflow rules, derating at elevated cabinet temperature, and power-on trip behavior and breaker coordination.
High-current projects benefit when electrical engineering and service engineering are aligned. Remote sense should be treated as a system-level tool, not a checkbox. DC_OK should be mapped to a useful alarm strategy rather than left unused. Remote on/off should be defined within the startup sequence. If the application may scale into parallel systems, active current sharing should be discussed early so that the shelf, cabling, and protections are designed around the final architecture. TPS can support that conversation at the product-selection stage, which is often where schedule is saved.
For BoFu readers, compliance is rarely an abstract topic. It directly affects supplier approval, validation scope, and cost of delay. PFS3000 is positioned for both industrial and medical-oriented projects with IEC/UL 62368-1 and IEC/UL 60601-1 approvals, 2×MOPP medical isolation, 4000Vac primary-to-secondary isolation, low leakage values, and EMC positioning that includes Class B conducted emissions, Class A radiated emissions, and IEC 60601-1-2 related performance language. For global B2B teams, that broadens the conversation from “Can this unit power the load?” to “Can this unit help the program move through review with fewer surprises?”
Reliability details also matter at supplier-selection time. The MTBF target above 500k hours, operation up to 5000m altitude, intelligent fan-speed control, and project-friendly integration features all support applications such as collaborative robots, cooling systems, industrial equipment, medical equipment, linear motors, AGV charging modules, cleaning robot charging modules, and stage-lighting systems. The best-fit application is still system-dependent, but the platform clearly addresses programs where uptime and predictable integration matter.

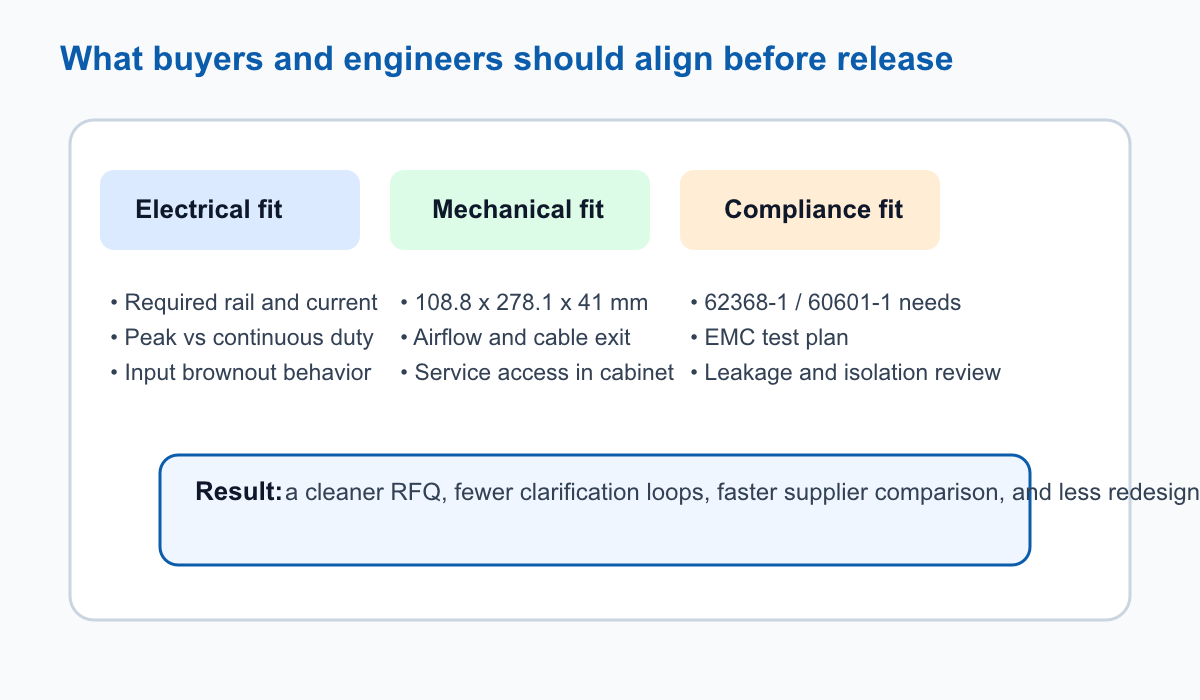

Weak RFQs create slow supplier cycles. Strong RFQs reduce back-and-forth, expose hidden design risks early, and let procurement compare suppliers on the right basis. If you are sending PFS3000 into a quotation or vendor-shortlisting process, the RFQ should include more than nominal voltage and wattage. It should capture the operating line condition, the real load profile, mechanical envelope, cooling method, approval target, monitoring expectations, and whether TPS is being evaluated only as a product vendor or as a solution partner with integration support.
| RFQ item | Why it matters | What to provide |
|---|---|---|
| Input mains condition | Determines whether derating below 180Vac affects the design | Nominal AC input, tolerance, brownout expectation, region, and full-load requirement |
| Load profile | Separates continuous rating from transient and startup behavior | Continuous load, peak load, duty cycle, inrush sequence, downstream capacitance |
| Output rail need | Narrows the correct model family quickly | Required nominal voltage, acceptable adjustment window, and current margin |
| Control and monitoring | Affects commissioning and service strategy | Need for DC_OK, remote on/off, remote sense, PMBus, CANBus, current sharing |
| Compliance path | Impacts approval scope and supplier comparison | Industrial, medical, EMC target, leakage sensitivity, insulation needs |
| Project support scope | Defines whether TPS should quote only the part or a broader solution | Customization request, integration support, cable or subsystem scope, timeline, annual volume |
Ask TPS to review the bus strategy, control signals, mounting approach, and any cabinet airflow concerns before finalizing the quote package. That can be especially valuable when the program may expand into parallel power, medical-adjacent requirements, or mixed regional input conditions.
Compare suppliers on total project fit, not just unit price. A lower quote can become the higher project cost if derating, compliance mismatch, unclear diagnostics, or late mechanical conflicts trigger redesign. TPS can support that evaluation with product guidance and broader project coordination.
In many industrial programs, the purchasing decision is really a confidence decision: can the supplier support the real application, answer integration questions, and stay useful after the first drawing release? TPS is relevant because the company can provide not only the PFS3000 family, but also equivalent solution guidance, project-oriented model selection, and broader support around system integration, engineering consultation, and global B2B delivery. That matters when your program has application-specific constraints that are not obvious from a simple product card.
Send TPS your target output rail, input condition, duty cycle, enclosure constraints, compliance path, and annual volume. TPS can help confirm which PFS3000 model fits, whether a parallel or customized approach is better, and what information should be locked before quotation and validation.
The family accepts 90–264Vac input, but it derates to 50% load when the input is below 180Vac. For RFQ purposes, clarify whether the application needs full 3000W only on 200–240Vac operation or whether low-line full-power performance is expected.
The natural starting point is PFS3000T48, rated at 48V and 62.5A. It is especially relevant when the project benefits from remote sense, DC_OK, active current sharing, and a compact 3kW platform. Final selection should still consider line condition, thermal design, and system transients.
It is positioned for both industrial and medical-oriented applications, with IEC/UL 62368-1 and IEC/UL 60601-1 approvals plus 2×MOPP isolation. Final suitability still depends on the end system, leakage requirements, EMC test plan, and the medical device’s overall approval strategy.
Because they influence commissioning effort and field support. DC_OK helps with power-health visibility, remote sense helps maintain target voltage at the load, remote on/off improves startup control, and PMBus or CANBus can support monitoring or future diagnostics. Those functions can reduce integration risk and speed up problem isolation later.
Yes. TPS can support product selection, equivalent solution discussion, integration-oriented consultation, and broader project communication for global B2B customers. That is especially useful when the program includes custom constraints around bus voltage, control interfaces, mechanical packaging, compliance, or application-specific deployment.
