Power Design Guide: Use TBM750-53KUIF to Build a 53kW 750V Bidirectional AC-DC Test and Energy-Recycling Platform

Power Design Guide | TPS ELECTRIC LLC

A 750V battery pack test bench, regenerative aging rack, or bidirectional power validation platform is not approved by headline wattage alone. The project team has to prove grid compatibility, DC-bus range, heat removal, communications, safety boundaries, serviceability, and supplier execution before a purchase order can move forward.

The TPS TBM750-53KUIF is positioned for this BoFu decision point: a 53kW three-phase bidirectional AC-DC power module for 750VDC systems that need energy flow in both directions. It converts utility-side AC power to a controlled DC bus for charge or test steps, and it returns energy from the DC side back to the AC side during discharge or regenerative operation. For system integrators, panel builders, procurement teams, and electrical engineers, the real question is not simply whether the module can deliver 53kW. The question is whether the module helps the whole system become quote-ready, buildable, serviceable, and acceptable to the end customer.

This guide turns the product specifications into a practical selection and RFQ checklist. It focuses on application fit, integration risk, compliance planning, and the information TPS needs to help confirm the right module, equivalent solution, or project-level configuration for global B2B deployments.

When a 53kW bidirectional AC-DC module is the right design move

The TBM750-53KUIF is a strong candidate when the equipment needs a high-voltage DC bus around 750VDC, a three-phase facility connection, and the ability to move energy both into and out of the device under test. Typical applications include battery PACK testing, bidirectional power testing, and energy-recyclable power aging. In these projects, regenerative operation is often the difference between a lab-only prototype and a production-capable test platform, because discharge energy does not have to be wasted as heat in a load bank.

For electrical engineers, the module addresses the core power path: 3Ph+PE AC input, 750VDC output/input, 70.7A rated DC current, and 53kW rated capacity. For panel builders, the mechanical and airflow data matter just as much as the electrical data. For procurement, the decision depends on supplier confidence, documentation quality, certification path, and the ability to support quote clarification before commercial commitment. TPS should be considered not only as a component source, but also as a partner that can help review the surrounding power architecture and propose comparable or customized solutions when the standard module is not a perfect fit.

RFQ trigger scenarios

Request an engineering review when the application includes one or more of the following: battery pack charge-discharge cycling, production line aging with energy recovery, high-voltage DC bus validation, inverter or power conversion testing, or a modular rack where several bidirectional power channels must scale together. If the project already has a 750V test requirement but still needs cabinet layout guidance, start with the broader DC power architecture planning guide and then narrow the RFQ around the TBM750-53KUIF.

A different topology may be better when the project is mainly DC-to-DC, cell-formation-oriented, or built around an existing HV DC bus. In those cases, the engineering discussion can reference TPS resources on a bidirectional power supply on an HV DC bus or related high-voltage modules such as the TDM750T14 project guide. The point is to define the power problem first, then confirm the module family.

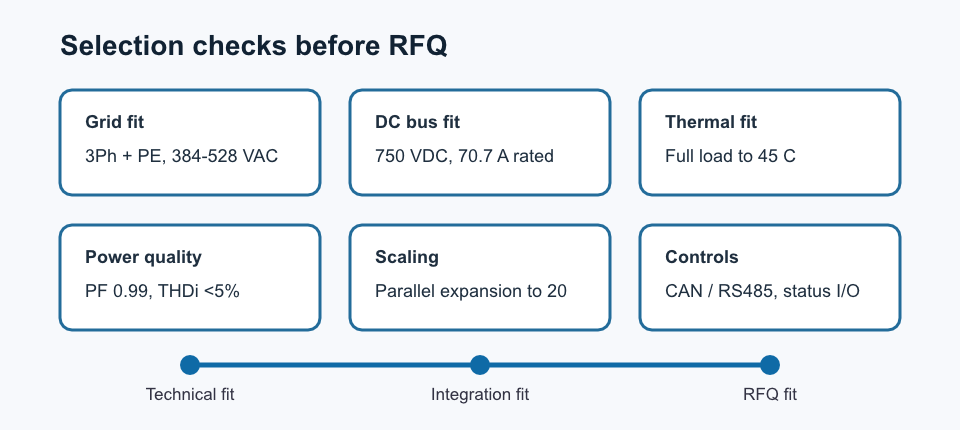

Core selection logic: from three-phase AC to a 750VDC bus

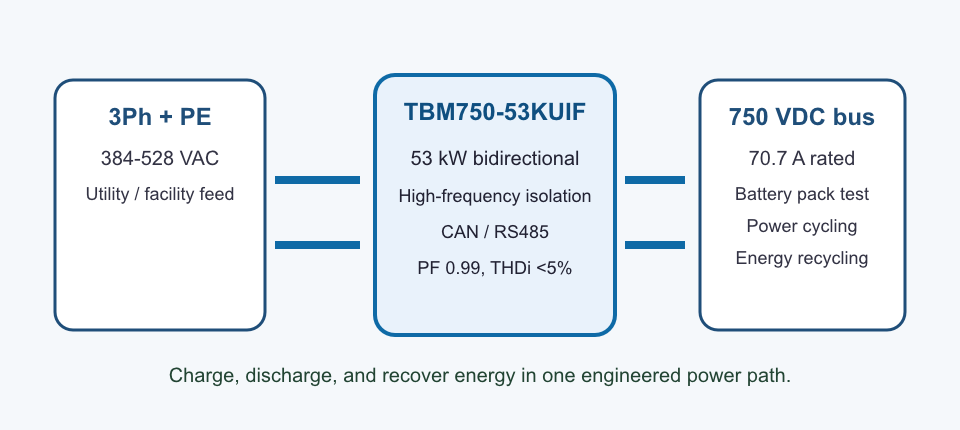

The first selection checkpoint is the facility interface. The TBM750-53KUIF is specified for a 3Ph+PE connection and an operating AC range of 384-528VAC with 50/60Hz adaptive control. The product specification uses a 480VAC rated condition for key performance values, including peak efficiency of 96.0% from AC to DC and 95.0% from DC to AC. For projects in regions with 380/400/415VAC or 480VAC distribution, confirm the final site voltage, tolerance, transformer arrangement, protective device strategy, and local grounding practice during RFQ. Do not assume that a bench drawing and a production-line utility feed are equivalent.

The second checkpoint is the DC bus. The module is built around a 750VDC rated interface with 70.7A rated current. For battery test systems, that rating should be compared with the pack voltage window, maximum charge and discharge current, precharge plan, contactor arrangement, emergency stop behavior, and worst-case regenerative event. TPS can help evaluate whether a single module, a parallel configuration, or a customized system-level approach is the better route.

Power quality and energy return

Regenerative systems are judged by how they interact with the plant electrical environment. The TBM750-53KUIF specification highlights high power factor and low input current distortion: PF 0.99 and THDi below 5% under the stated 480VAC full-load conditions with a low-distortion grid. That does not remove the need for project review. It means the module gives engineers a strong baseline for discussing transformer sizing, upstream protection, harmonic expectations, and facility acceptance. If your end customer already has power-quality rules, include them in the RFQ.

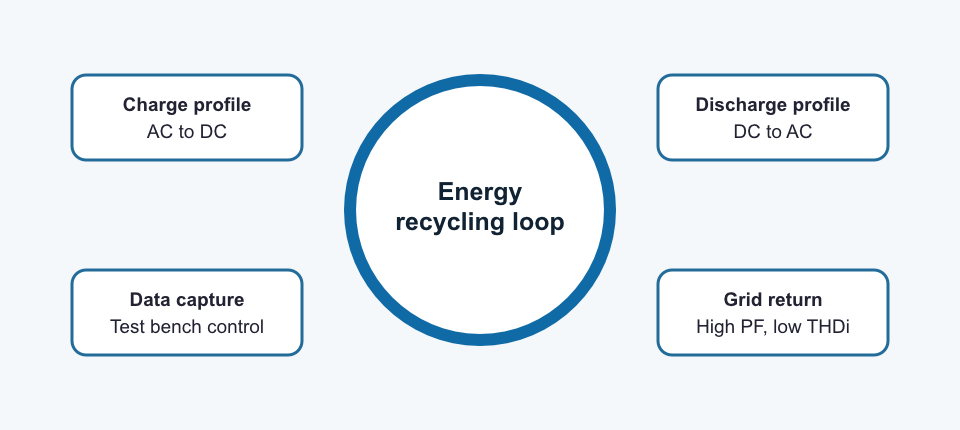

Energy recovery is especially valuable in battery PACK test and aging because discharge energy can be returned instead of dissipated. Teams designing lithium battery lines can pair this article with TPS guidance on regenerative power supply selection for lithium battery formation and grading and the industrial lithium battery charger selection guide to clarify whether the station is primarily a charger, a bidirectional tester, or a production energy-recycling system.

Questions to resolve before approval

Integration checklist for racks, cabinets, and test systems

The module is compact for its power level, but it still needs disciplined mechanical planning. The specified size is 435mm x 86mm x 600mm without the handle and 489mm x 86mm x 647.5mm with the handle. Weight is up to 23kg. Those dimensions affect rack rail selection, service access, center of gravity, cable bend radius, and how technicians will remove or replace the unit. Panel builders should also respect the mounting notes in the product drawing, including the reserved mounting holes and the warning that screw length must not exceed hole depth.

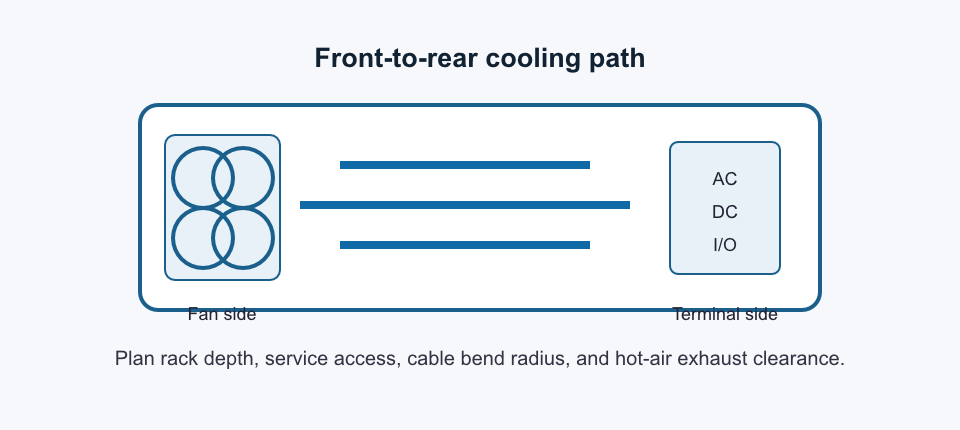

Cooling is forced air with intelligent control and a front-to-rear path: the fan side is the front, and the terminal face is the rear. The operating temperature range supports full load from -10°C to 45°C, with capacity derating to 80% from 45°C to 60°C. That means enclosure designers should treat airflow as a power-design item, not an afterthought. If the system is installed in a dense rack, warm production area, or semi-enclosed test cell, reference TPS guidance on control cabinet thermal design and airflow rules before finalizing the bill of materials.

Controls, status, and scaling

For automation teams, the communication interface is a key supplier-screening item. The TBM750-53KUIF supports CAN and RS485, and its status indication includes normal operation, alarm, and fault states. During RFQ, define whether the supervisory system will command setpoints, monitor direction changes, record alarms, or coordinate multiple modules in a test sequence. A clear interface definition reduces commissioning time and avoids late software questions at factory acceptance testing.

Scalability matters when one production line must be replicated across multiple stations. The specification indicates modular design, intelligent expansion, automatic parallel operation, expansion up to 20 units, and current-sharing imbalance below 5%. In procurement terms, this supports a cleaner path from pilot station to production rollout. In engineering terms, it requires early decisions about AC distribution, DC busbars, cooling zoning, communication addressing, safety interlocks, and whether the system should be built as a common power shelf or discrete channels.

If your internal team has limited bandwidth for a complete power shelf, test bench, or enclosure-level build, review TPS guidance on when to work with a power system integration specialist. TPS can support standard product selection, equivalent solution review, and project-level integration discussions so the customer does not have to treat the power module as an isolated component.

Compliance, reliability, and procurement risk reduction

The specification states that the TBM750-53KUIF is designed to comply with IEC 62477-1 and EN 55032, and that it can pass UL, CE, and TUV certification pathways. For procurement and quality teams, this should be handled as a project confirmation item, not a generic checkbox. Ask which certificates, test reports, declarations, drawings, and installation instructions are available for the exact configuration and destination market. If the finished machine will be certified as a larger system, define the boundary between module compliance, cabinet compliance, and end-equipment compliance.

For emissions planning, the project team can also reference the official IEC page for CISPR 32, the international basis commonly associated with multimedia equipment emission requirements. The exact EMC route depends on system classification, market, enclosure, cable routing, filtering, and installation environment. TPS can help customers align module selection with a practical compliance plan, including when additional filtering, shielding, or cabinet-level testing should be considered.

Environmental boundaries and safety

The operating environment is a serious reliability topic. The specification warns against flammable or explosive gas, corrosive gas, abnormal vibration, uncontrolled marine-adjacent environments, high metal dust, and salt spray. It also warns that excessive AC mains RMS voltage and DC input voltage above the specified limits can damage the module. Installation practices should include insulated tools, voltage verification before touching conductors, torque-controlled fastening, and inspection marking where required by the customer quality system.

For electrical engineers, these notes shape the risk review. For panel builders, they define cabinet sealing, contamination control, cable access, and maintenance procedures. For procurement, they are a reminder that the lowest component price is not the same as the lowest project risk. A supplier that can discuss environmental constraints, documentation, integration, and test planning is often more valuable than a supplier that only quotes a module part number.

What to send TPS for a faster RFQ review

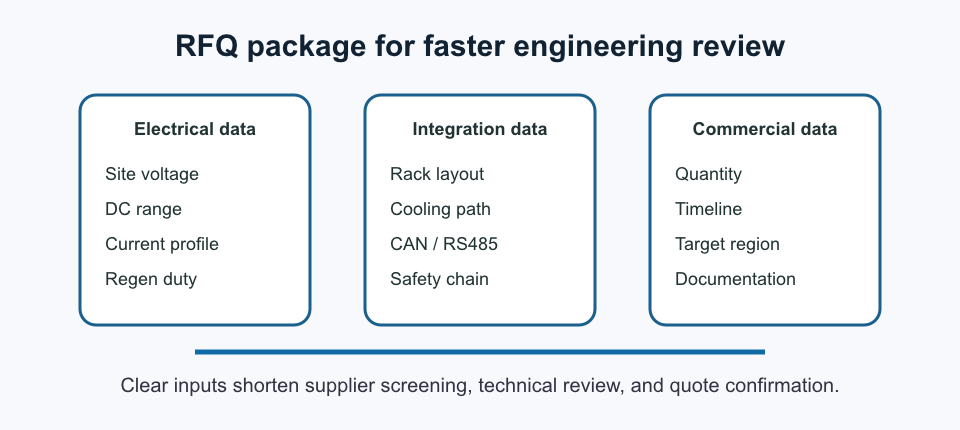

RFQs for high-voltage bidirectional systems move faster when the customer sends enough information for engineering to confirm fit on the first pass. For the TBM750-53KUIF product page, include the target application, site voltage, DC voltage window, current profile, charge-discharge sequence, regenerative duty cycle, ambient temperature, altitude, cooling approach, control interface, required documents, and destination market. If multiple stations are planned, include the pilot quantity and rollout quantity separately.

Also include mechanical constraints: rack depth, handle clearance, wiring exit direction, airflow path, service aisle access, and whether the module will be integrated into a larger OEM enclosure. If a custom harness, PCB interface, filter assembly, or system-level power electronics adaptation is needed, TPS can discuss design-for-manufacturing considerations; the PCB design services for power electronics guide is a useful starting point for teams that need more than a catalog component.
