YB-F Series Single-Phase EMI Filter: RFQ-Ready Selection Guide for Industrial Cabinets, Automation Equipment, and Power Systems

Product Blog | TPS ELECTRIC LLC

When a single-phase power line filter is being evaluated for a live cabinet, machine, elevator, power supply, or new energy project, the question is no longer “what is an EMI filter?” The real question is whether the supplier can help the team select the right circuit, current rating, enclosure fit, termination style, compliance path, and delivery plan without slowing the RFQ.

The TPS YB-F Series is positioned for that stage of the buying process. It is a single-phase EMI filter family for 115/250V power lines and DC systems up to 400Hz, designed to support conducted noise suppression in industrial and automation equipment. For system integrators, panel builders, procurement specialists, and electrical engineers, YB-F is most useful when the project requires a compact, cabinet-ready filter with documented mechanical options and a supplier that can review the actual application before quotation.

This article is written for RFQ preparation. Always confirm final model code, current rating, case size, certificates, mounting details, and lead time with TPS before release to production.

When the YB-F Series Fits a BoFu Project

The YB-F Series is a practical candidate when an engineering or purchasing team has already identified conducted EMI as a risk, has a cabinet or equipment envelope to protect, and needs a supplier response that connects the filter to the system-level requirement. Typical applications include power supplies, building automation, industrial automation equipment, elevator equipment, manipulator equipment, and new energy equipment. In those environments, the filter is not an isolated catalog component. It becomes part of the power-entry strategy, wiring layout, grounding plan, and compliance evidence package.

For a panel builder, the immediate concern is whether the part will physically fit and whether the terminations match the wiring method. For a system integrator, the concern is whether the filter will reduce line-conducted noise without creating installation issues. For procurement, the concern is whether the supplier can quote from clear project inputs and support repeatable sourcing. For electrical engineers, the key questions are circuit topology, differential-mode and common-mode attenuation behavior, rated current margin, leakage implications, thermal rise, and how the final machine or cabinet will be verified.

TPS can support this decision as a product supplier and project partner. In addition to the YB-F Series product page, TPS publishes related resources for EMI filter selection, power supplies, control cabinets, cable assemblies, sheet-metal enclosures, and electronic manufacturing services. This matters because EMI performance is often won or lost at the integration level: filter placement, cable routing, chassis bonding, enclosure openings, and the load profile can all change the real result.

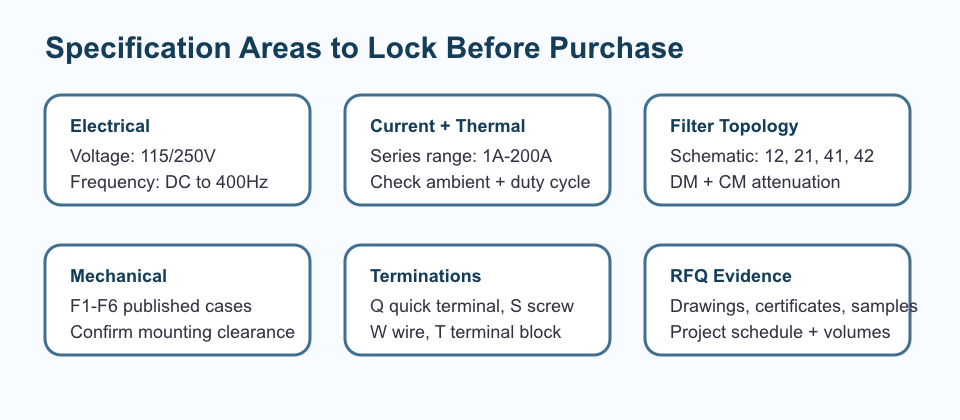

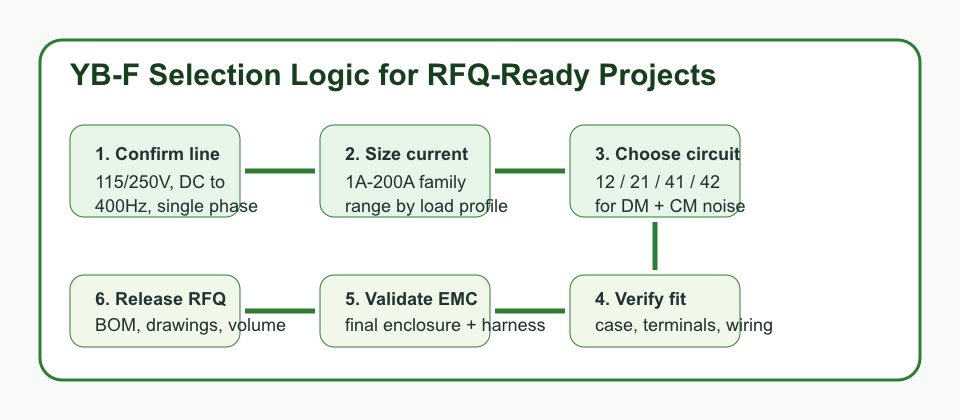

Core Specifications to Confirm Before RFQ

The published YB-F information identifies the family as a single-phase EMI filter for 115/250V systems and DC to 400Hz use. The series documentation shows a rated current range from 1A to 200A, while product-page selection fields may display narrower selectable ranges depending on availability and configuration. The best RFQ practice is to send TPS the steady-state current, inrush or repetitive peak assumptions, ambient temperature, enclosure conditions, and expected duty cycle. TPS can then help confirm which YB-F configuration is appropriate for the application rather than forcing the buyer to choose from current alone.

The electrical schematic options are important because different conducted-noise problems require different filtering emphasis. The YB-F materials show selectable circuit references 12, 21, 41, and 42. These options are used to address differential-mode noise between line and neutral as well as common-mode noise from the power conductors to chassis or ground reference. If a project already has pre-compliance scan data, line impedance stabilization network results, or observed failing bands, those details should be shared during RFQ. If the project has not yet tested, TPS can still help narrow the starting point based on load type, switching frequency behavior, cable length, and enclosure layout.

Mechanical and termination details are just as important as the electrical rating. The YB-F drawings show multiple F case families, including compact and larger enclosures, with output-mode options such as quick terminals, screw terminals, wire leads, and terminal blocks. The ordering structure includes a current value and output mode, so a complete request should not say only “single-phase EMI filter.” It should state the voltage, rated current target, schematic option if known, case constraint, wiring preference, annual or project quantity, and whether prototype samples are required.

Selection Priorities by B2B Role

System integrators: reduce EMC risk without creating integration risk

System integrators usually evaluate the YB-F Series after the machine architecture is already defined. The filter must work with drives, controllers, power supplies, relays, sensors, and communication equipment inside a real enclosure. At this stage, the most valuable supplier support is not only a part number; it is application review. TPS can help compare the expected noise source, conductor routing, enclosure bonding, and load current with the available YB-F circuit and case options. If the system also includes a DC power supply, a bidirectional module, or a new energy subsystem, TPS can coordinate the EMI filter decision with broader power-electronics requirements.

For related system-level thinking, integrators can review TPS guidance on industrial control cabinets for automation and bidirectional power supply selection and US compliance. These topics connect well to YB-F decisions because EMC behavior depends on cabinet layout, grounding, power conversion, and validation in the final system.

Panel builders: protect assembly repeatability

Panel builders need repeatable mechanical and wiring decisions. A technically correct filter can still cause rework if the case footprint conflicts with wire duct spacing or if the termination style does not match the standard build practice. When requesting a YB-F quote, panel builders should send the cabinet drawing, mounting plate layout, planned wire entry and exit direction, conductor gauge, and preferred output mode. TPS can review whether a compact F case, a larger case, a screw terminal, a wire lead, or a terminal block version is the better fit.

For build-to-print programs, the filter should be frozen in the BOM only after the enclosure and harness paths are reviewed. TPS resources on build-to-print control panel checkpoints, custom sheet-metal enclosures, and custom cable assemblies and wire harnesses can help teams avoid late-stage fit and routing problems.

Procurement: make the quotation comparable and actionable

Procurement teams often receive multiple EMI filter quotes that look similar on price but are not equivalent in risk. A strong RFQ should make each quote comparable by defining the same current, circuit expectation, case limit, terminal preference, certificate request, sample quantity, production forecast, and required timeline. For YB-F projects, procurement should also ask TPS whether an equivalent or project-adjusted solution is available if the initial configuration is not the best fit. That makes the RFQ a sourcing conversation rather than a simple catalog lookup.

Because TPS serves global B2B customers, procurement teams can use the RFQ stage to align documentation, export destination, packaging, sample scheduling, and recurring supply needs. Where a project includes additional power electronics, TPS can also support related sourcing through its electronic manufacturing services for power electronics and mixed-technology assembly capabilities.

Electrical engineers: connect filter choice to test evidence

Electrical engineers should treat the YB-F Series as part of a noise-control system. The datasheet indicators, schematic references, and rated current are the starting point, but the installed result depends on grounding impedance, cable coupling, line/load separation, metalwork, and the rest of the power architecture. If the end equipment has already been tested and has limited margin, share the test setup, failing bands, load mode, cable length, and enclosure photos with TPS. If the project is still in design, TPS can help identify a suitable starting configuration for prototype validation.

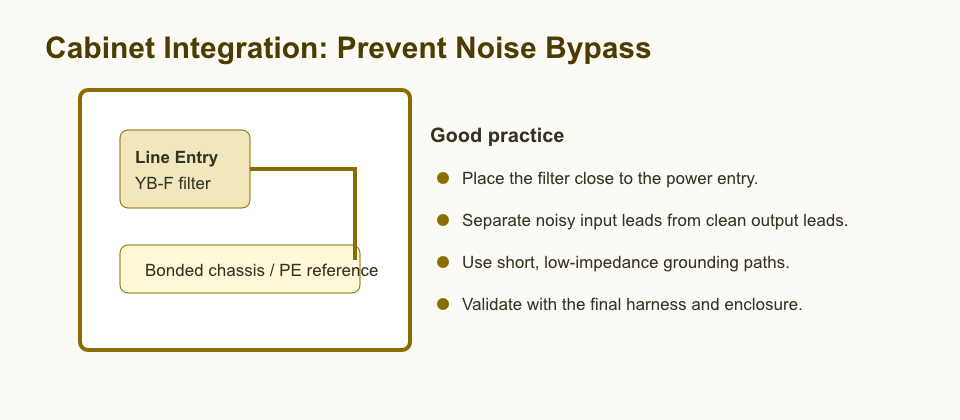

Integration and Installation Considerations

Most EMI filter problems are not caused by the filter element alone. They occur when noisy wiring bypasses the filter, when line and load leads are bundled together, when the grounding path is too long or high impedance, or when the enclosure layout forces the filter far from the power entry. For best results, place the YB-F filter close to the incoming power point, keep unfiltered input conductors physically separate from filtered output conductors, and bond the filter case or ground reference according to the final system requirements. The exact connection method should follow the approved drawing and the end-equipment safety plan.

The YB-F case drawings are especially useful for cabinet planning. Published options show compact footprints for low- and mid-range configurations and larger housings for higher-current needs. Before locking the BOM, check screw access, spacing to live terminals, serviceability, bend radius, cover clearance, and separation from heat-generating components. In tightly packed panels, the smallest electrical solution is not always the lowest-risk solution if technicians cannot terminate it correctly or if wires must be crossed in a way that increases coupling.

If the cabinet also includes AC/DC supplies, DC/DC modules, chargers, drives, or communication devices, treat the EMI filter as part of the full power-entry and grounding strategy. TPS can support this broader review through product selection and integration experience. For complementary power-supply context, review TPS guidance on high-power industrial switching power supplies and 24V-48V switching DC power supply selection.

Standards, Reliability, and Validation Approach

EMI filters used in industrial equipment should be reviewed through both performance and safety lenses. Performance focuses on conducted-noise attenuation, including common-mode and differential-mode paths. Safety and reliability review may include rated voltage, rated current, insulation system, leakage current, temperature rise, terminal integrity, case construction, and the way the filter is installed in the end equipment. For passive EMI filter units, engineering teams often reference authoritative standards such as IEC 60939-3. For US-oriented evaluations, teams may also review UL 1283 requirements where applicable to the product category and installation method.

The YB-F materials show multiple certification and compliance marks, but RFQ teams should still request the exact documents needed for their destination market and end equipment. Marks on a series overview are helpful, yet they do not replace project-level confirmation. Ask TPS for the applicable certificate, declaration, test data, or compliance statement tied to the requested part number and configuration. If the end customer requires a specific file number, component recognition, country mark, or customer-format declaration, include that requirement in the RFQ.

Reliability should also be viewed in the context of the load and environment. Current margin is important, but so are ambient temperature, enclosed-panel heat rise, expected surge conditions, vibration exposure, screw retention, and service access. If a product will be installed in elevator equipment, industrial automation, or new energy auxiliary systems, the procurement decision should include both electrical suitability and the supplier’s ability to support engineering questions during prototype and production ramp.

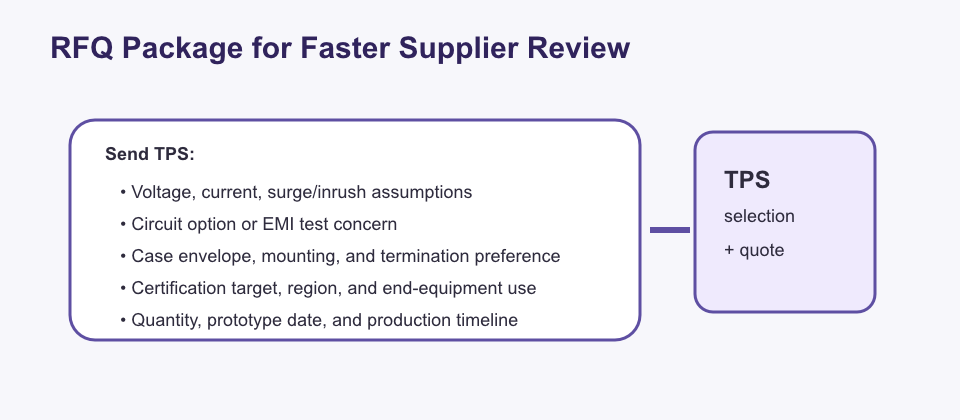

What to Send TPS for a Faster Quote

A complete YB-F RFQ allows TPS to respond with a useful recommendation instead of a long list of clarifying questions. At minimum, send the line voltage and frequency, single-phase confirmation, load current, peak or inrush information, operating environment, case envelope, preferred termination style, circuit option if known, required certificates, sample schedule, target annual volume, and production timeline. If available, include enclosure drawings, photos of the power-entry area, wiring diagrams, and any EMC pre-scan information.

Teams replacing a market-common EMI filter or designing around an existing footprint should avoid framing the request as a third-party brand comparison. Instead, describe the electrical requirement, case size, mounting pattern, terminal style, compliance target, and attenuation problem. TPS can then review whether the YB-F Series single-phase EMI filter, another TPS filter, or a project-adjusted equivalent is the best path. This keeps the conversation focused on technical fit, integration risk, and delivery readiness.

Why Work with TPS for YB-F Projects

YB-F is valuable because it sits inside a broader TPS capability set. TPS can provide related products and equivalent solutions, support project selection, advise on integration, and coordinate with manufacturing or cabinet-level needs when the filter is part of a larger power-electronics program. For customers building industrial systems, this reduces the gap between component sourcing and implementation support.

That is especially relevant for BoFu buyers. At this stage, the team is deciding whether a supplier can support a real order, not whether the keyword “single-phase EMI filter” matches a search query. TPS can help with part-number clarification, mechanical fit review, sample discussions, application suitability, and project-level RFQ communication. Where the design involves additional power modules, cables, enclosures, or assembly support, TPS can connect the filter decision with the rest of the supply chain rather than isolating it as a one-line component.

For teams evaluating adjacent filter families, TPS also publishes product-oriented guidance for YB-T Series single-phase AC line filter selection and YX-G Series three-phase EMI filter applications. If YB-F is not the final fit, TPS can still help identify the right product type or equivalent solution for the project.
